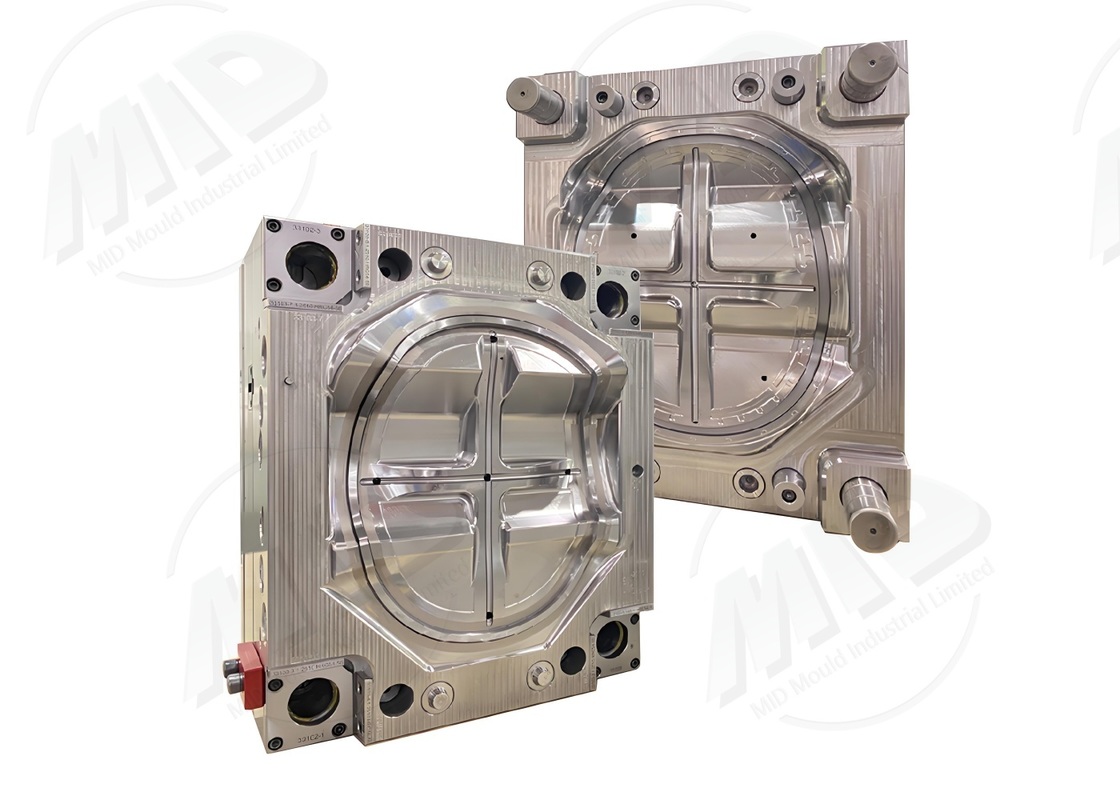

1 - 2 Cavities Prototype Injection Mold 50K - 150K Shots Customized Plastic Injection Mould
-
Highlight
1 Cavities Prototype Injection Mold
,2 Cavities Prototype Injection Mold
,150K Shots Customized Plastic Injection Mould
-
ProductPrototype Injection Mold
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
CavityMulti Cavity,as Per Client's Requirement
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
1 - 2 Cavities Prototype Injection Mold 50K - 150K Shots Customized Plastic Injection Mould
Small Batch Prototype Molds 1-2 Cavities 50K-150K Shots
Product Description
These prototype molds are designed for small-batch production and market testing. They utilize economical steel and standard processing techniques, balancing cost and performance, and are suitable for low- to medium-volume production needs.
Process Flow
- Customer Capacity Needs Assessment
- Mold Flow Analysis to Confirm Feasibility
- CNC Machining and EDM
- Mold Assembly and Trial
- Small-Batch Production Verification
Product Specifications
| Item | Parameter Description |
|---|---|
| Mold Type | Small-Batch Prototype Mold |
| Mold Material | P20 Aluminum Alloy |
| Number of Cavities | 1–2 Cavities |
| Mold Life | 50,000–150,000 Molds |
| Part Accuracy | ±0.05mm |
| Surface Treatment | Polishing, Sandblasting |
| Applicable Materials | ABS, PP, and PMMA |
| Cooling System | Standard Cooling |
| Hot Runner System | Optional |
| Production Cycle | 12–20 Days |
Product Application
- Small-Batch Market Verification
- Pre-Production Testing
- Functional Trial Production
- Low-Capacity Production
Product Advantages
- Supports Small-Batch Trial Production
- Affordable Cost
- Affordable Cycle: 12–20 Days
- Repeatable Verification
- Suitable for Market Testing
FAQ
Q1: Is it suitable for small-batch production?
A1: Yes. Designed for low-capacity production.
Q2: What is the mold life?
A2: 50,000–150,000 molds
Q3: Production cycle time
A3: 12–20 days
Q4: Can transparent materials be used?
A4: Yes, PMMA is supported.
Q5: Can the mold be upgraded to a mass production mold?
A5: Yes, upgradeable upon request.
Personalized Customization Services
- Specialized solutions for small batches available
- Mold design can be optimized based on production capacity
- Upgrading to mass production molds is supported
- Meet market validation requirements
