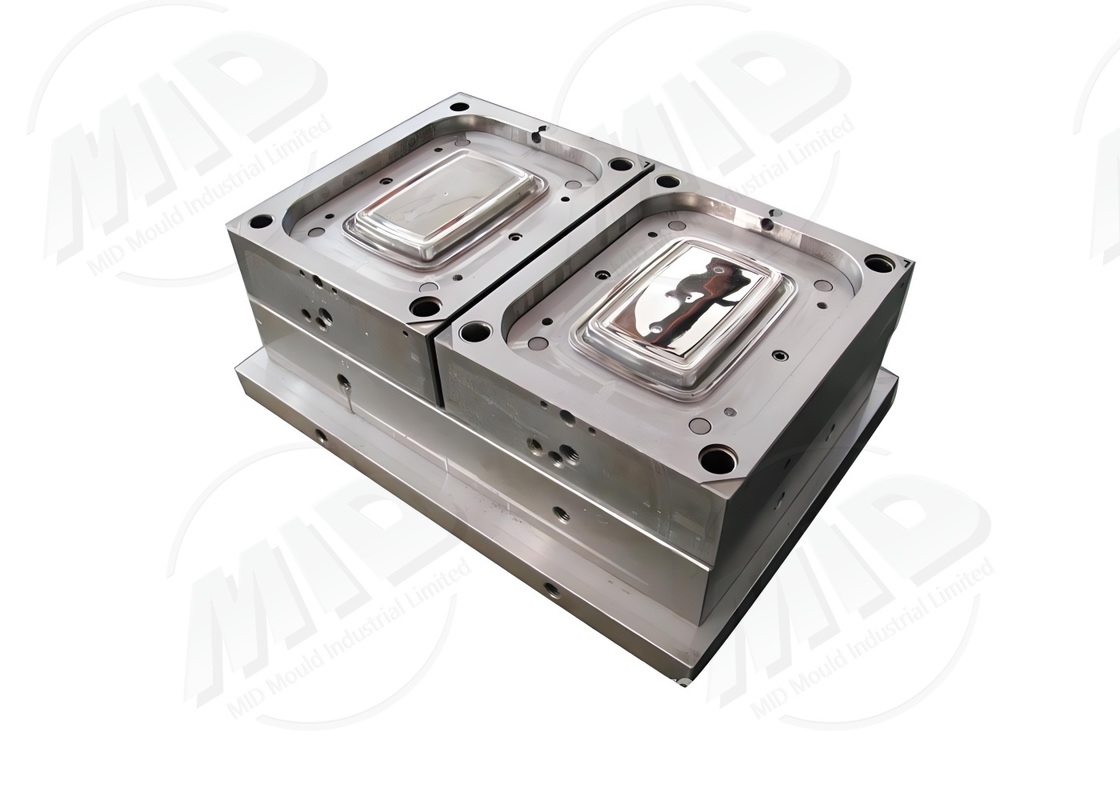

Flexible Prototype Mold Aluminum Alloy Single Cavity Injection Mold For R&D , 50K - 100K Shots Life , 10-15 Days Cycle
-
Highlight
Flexible Prototype Mold
,Aluminum Alloy Single Cavity Injection Mold
,Single Cavity Injection Mold Flexible
-
ProductPrototype Molds
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
CavityMulti Cavity,as Per Client's Requirement
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
Flexible Prototype Mold Aluminum Alloy Single Cavity Injection Mold For R&D , 50K - 100K Shots Life , 10-15 Days Cycle
Flexible Prototype Mold For R&D, 50K-100K Shots Life, 10-15 Days Cycle
Product Process
This solution emphasizes flexibility, featuring a simple mold structure design that facilitates rapid modification and repeated testing, making it ideal for the frequent iterations required during the early stages of product development.
Process Flow
- R&D Requirements Confirmation
- Rapid Mold Flow Simulation
- CNC Machining and Simplified Assembly
- Rapid Mold Trial
- Modification, Optimization, and Revalidation
Product Specifications
| Item | Parameter Description |
|---|---|
| Mold Type | Flexible Iterative Prototype Mold |
| Mold Material | P20 Aluminum Alloy |
| Number of Cavities | Single-Cavity |
| Mold Life | 50,000–100,000 Molds |
| Part Accuracy | ±0.05mm |
| Surface Treatment | Sandblasting Polishing |
| Applicable Materials | ABS PP |
| Cooling System | Simple Cooling |
| Hot Runner System | Optional Single-Point |
| Production Cycle | 10–15 Days |
Product Usage
- Frequent Design Iterations
- Early R&D Prototype
- Functional Verification
- Preliminary Appearance Verification
Product Advantages
- Multiple Mold Modifications
- Short Production Cycle 10–15 Days
- Low Cost Suitable for Early R&D
- Adapts to Rapid Iteration Needs
- Reduces R&D Risk
FAQ
Q1: Is Repeated Modification Supported?
A1: Yes, Suitable for Multiple Adjustments
Q2: What is the Production Cycle Time?
A2: 10–15 Days (Expedited service available)
Q3: What is the mold lifespan?
A3: 50,000–100,000 molds
Q4: Is it suitable for mass production?
A4: Not recommended, suitable for the R&D phase.
Q5: Can transparent materials be used?
A5: Yes, but the surface quality will be limited.
Customized Service
- Flexible and modifiable mold structure available
- Supports multiple iterations in a short cycle
- Various steel materials and cost options available
- Meet initial R&D prototype needs
