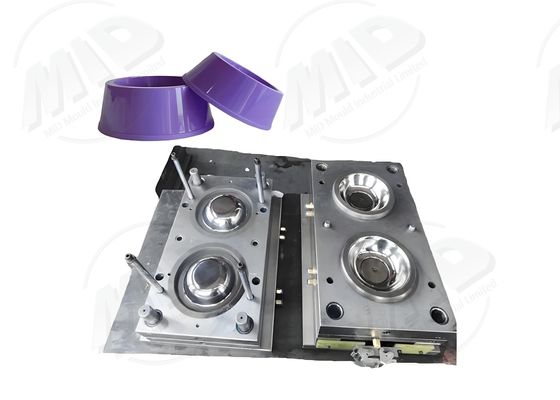

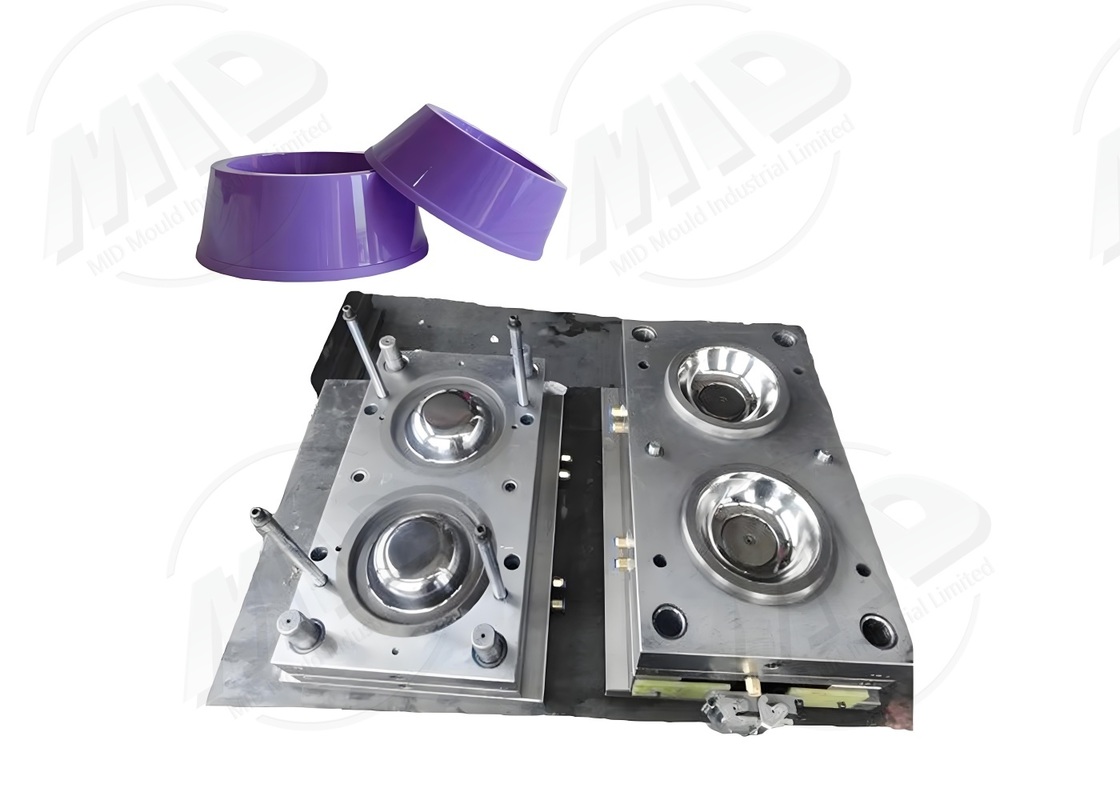

Customized Prototype Injection Molds 50K - 150K Shots Rapid Prototype Mould For ABS PP PC PMMA
-
Highlight
Customized Prototype Injection Molds
,50K Shots Rapid Prototype Mould
,150K Shots Rapid Prototype Mould
-
ProductPrototype Injection Molds
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
CavityMulti Cavity,as Per Client's Requirement
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
Customized Prototype Injection Molds 50K - 150K Shots Rapid Prototype Mould For ABS PP PC PMMA
Prototype Injection Mold 50K-150K Shots For ABS PP PC PMMA
Product Processing
Prototype molds are manufactured from aluminum alloy or pre-hardened steel, focusing on rapid prototyping and cost control. Our process combines CNC machining with mold flow simulation, enabling customers to produce high-quality prototypes early in the product design process, accelerating validation and iteration.
Process Flow
- Design Data Confirmation and Design for Material (DFM) Analysis
- Mold Flow Simulation Verification of Flow and Venting
- CNC Machining and Wire Cutting Finishing
- Mold Assembly and Commissioning
- Prototype Trial and Delivery to Customers
Product Specifications
| Item | Parameter Description |
|---|---|
| Mold Type | Rapid Prototyping Mold |
| Mold Material | Aluminum Alloy P20 NAK80 |
| Number of Cavities | 1–2 Cavities |
| Mold Life | 50,000–150,000 Molds |
| Part Accuracy | ±0.05mm |
| Surface Treatment | Polishing Sandblasting |
| Applicable Materials | ABS PP PC PMMA |
| Cooling System | Simple Cooling Channels |
| Hot Runner System | Optional Single-Point Hot Runner |
| Production Cycle | 12–20 Days |
Product Application
- Product Appearance Confirmation
- Functional Testing and Verification
- Early Market Promotion Samples
- Small-Batch Trial Production
Product Advantages
- Fast Production, Cycles as Short as 2 Weeks
- Low Cost, Suitable for R&D
- Flexible Adjustment, Mold Modification and Optimization
- Early Detection of Design Defects
- Can Provide Reference for Mass Production Molds
FAQ
Q1: What is the Life of a Prototype Mold?
A1: Typical lifespan: 50,000–150,000 molds, suitable for trial production.
Q2: Can it process transparent materials?
A2: Yes. Common transparent materials such as PC and PMMA can be molded.
Q3: What is the turnaround time?
A3: Typical: 12–20 days. Expedited service available.
Q4: Can it support rapid modifications?
A4: Yes. Prototype molds offer high flexibility.
Q5: Can it be used for mass production?
A5: Primarily used in the R&D phase. Upgrades are recommended for mass production.
Personalized Customization Services
- Supports rapid modifications and optimizations
- Affordable and durable material options available
- Configurable with a simple hot runner
- Supports rapid mold trials and sample delivery
