ISO9001 Standard Car Part Mold
,Prototype Car Part Mold
,Precision Prototype Mould
-
ProductCar Part Mold
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
CavityMulti Cavity,as Per Client's Requirement
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure

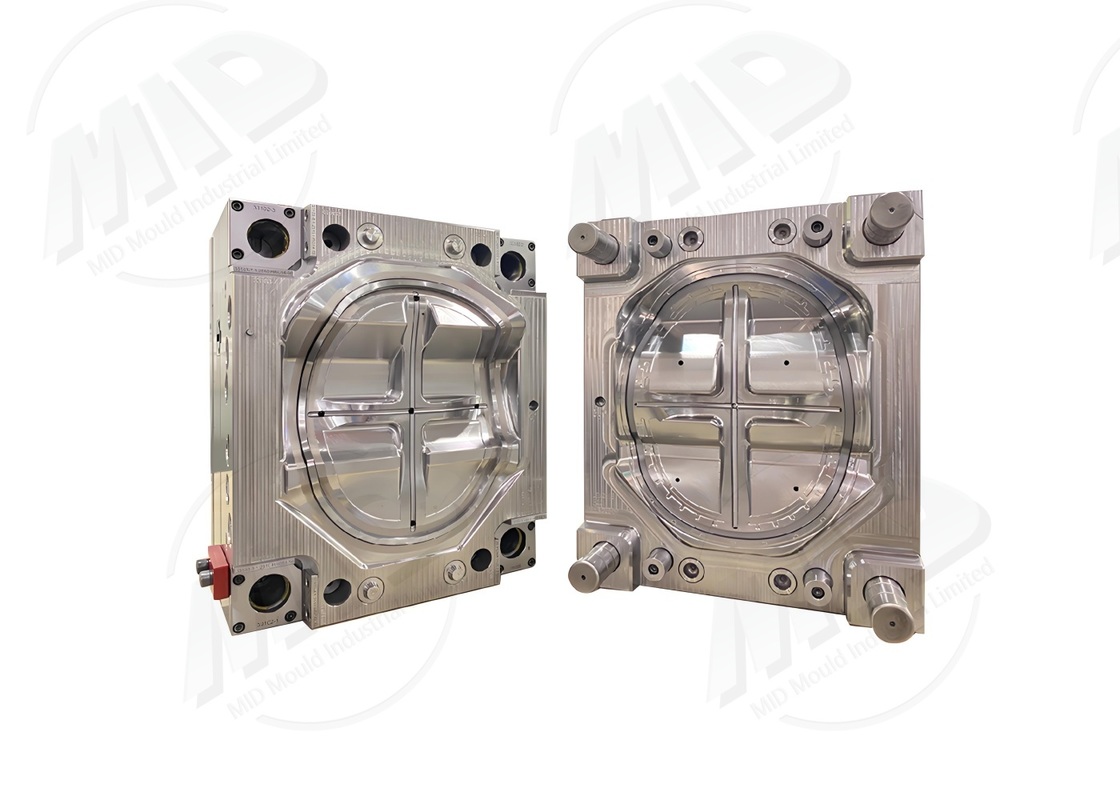

ISO9001 Standard Prototype Car Part Mold Precision Prototype Mould
Complex Structural Prototype Mold For Automotive Parts 100000 Shots
Product Description
This specialized prototype mold is designed for the development and verification of complex structural parts, featuring multi-slide mechanisms and precision machining to ensure accurate functional and structural strength testing.
Process Flow
- Complex Structure Analysis and Design
- Mold Flow Analysis Ensures Complete Filling
- CNC Precision Machining and EDM Processing
- Mold Assembly and Slide Adjustment
- Mold Trial and Functional Testing
Product Specifications
| Item | Parameter Description |
|---|---|
| Mold Type | Complex Structure Prototype Mold |
| Mold Material | NAK80 P20 |
| Cavity | Single |
| Mold Life | Up to 100,000 Molds |
| Part Accuracy | ±0.03mm |
| Surface Treatment | Polishing, Sandblasting |
| Applicable Materials | ABS, PA, GF |
| Cooling System | Standard Water Cooling |
| Hot Runner System | Optional |
| Production Cycle | 15–20 Days |
Product Applications
- Verification of Complex Mechanical Components
- Functional Structural Component Testing
- Strength and Assembly Verification
- Small-Batch Trial Production
Product Advantages
- Supports Complex Structure Design
- High Accuracy: ±0.03mm
- Sufficient Mold Life for Repeated Testing
- Suitable for Functional Strength Verification
- Enables Rapid Iterative Optimization
Frequently Asked Questions
Q1: Supports Complex Slide Structures?
A1: Yes, It Can Meet Complex Part Requirements
Q2: What is the Cycle Time?
A2: 15–20 days
Q3: What is the mold lifespan?
A3: Approximately 100,000 molds
Q4: Is it suitable for reinforced materials?
A4: It supports glass fiber reinforced materials and can be molded.
Q5: Is it suitable for mass production?
A5: Primarily used for R&D and can be used for pre-production verification.
Personalized Customization Service
- Optimized mold design for complex structural parts
- Customized multi-slide and core-pulling mechanisms available
- Supports reinforced material processing
- Meets R&D and small-batch trial production needs
Related Cases
