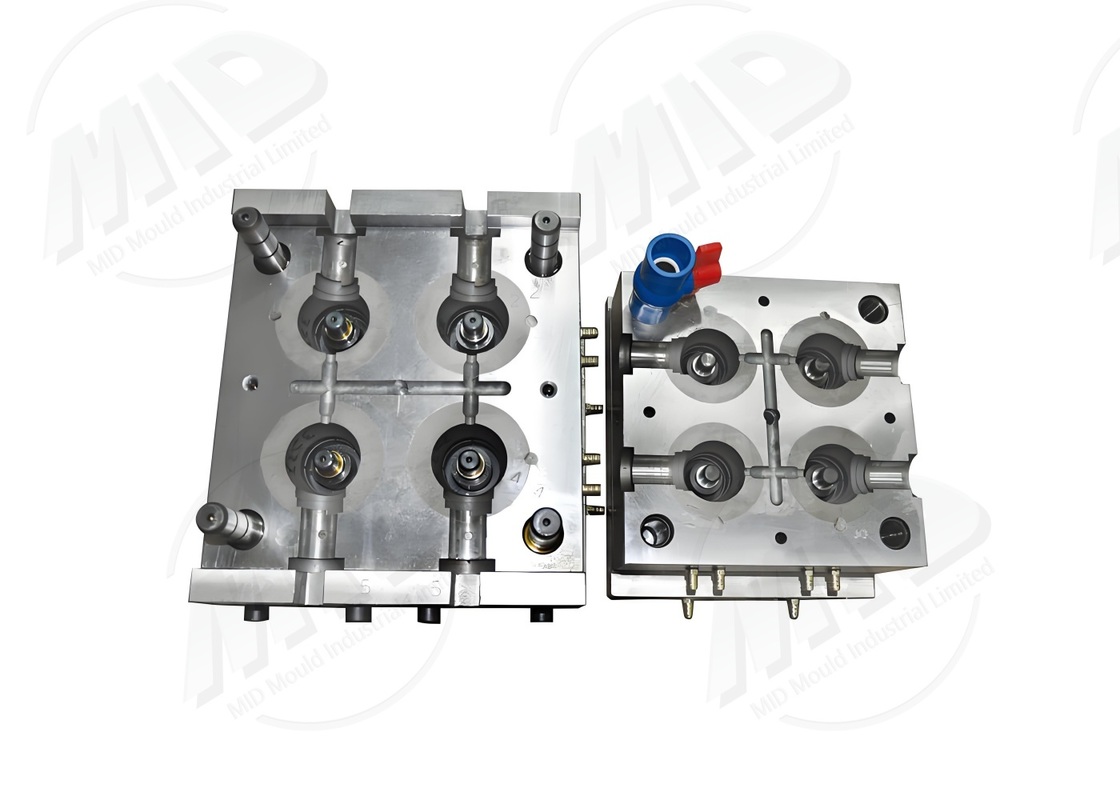

Multi Cavity Prototype Molds 150K - 300K Cycles High Precision Molds For Mass Production
-
Highlight
Multi Cavity Prototype Molds
,150K Cycles High Precision Molds
,300K Cycles High Precision Molds
-
ProductPrototype Molds
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
CavityMulti Cavity,as Per Client's Requirement
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
Multi Cavity Prototype Molds 150K - 300K Cycles High Precision Molds For Mass Production
Upgradable Prototype Molds For Mass Production 150K-300K Cycles
These prototype molds are not only suitable for R&D and trial production, but also offer scalability, allowing for subsequent conversion and upgrading to mass production molds, helping customers reduce reinvestment.
Process Flow
- Initial R&D Needs Assessment
- Mold Flow Analysis and Scalable Design
- CNC Finishing and Heat Treatment
- Mold Assembly and Trial
- Upgrade Preparation and Testing
Product Specifications
| Item | Parameter Description |
|---|---|
| Mold Type | Upgradable to prototype mold |
| Mold Material | NAK80 H13 |
| Number of Cavities | 1–4 |
| Mold Life | 150,000–300,000 cycles |
| Part Accuracy | ±0.03mm |
| Surface Treatment | Polishing, Nitriding |
| Applicable Materials | ABS, PC, PA, GF |
| Cooling System | High-Efficiency Cooling |
| Hot Runner System | Configurable |
| Production Cycle | 18–25 Days |
Product Application
- Product R&D and Verification
- Small-Batch Trial Production
- Upgradable to mass production
- Reduced mold investment costs
Product Advantages
- Upgradable to mass production mold
- High precision: ±0.03mm
- Long life: 150,000–300,000 cycles
- More cost-effective
- Meet the transition from R&D to mass production
FAQ
Q1: Can it be upgraded to a mass production mold?
A1: Yes. Allow for expansion during design.
Q2: What is the mold lifespan?
A2: 150,000–300,000 molds
Q3: What is the production cycle?
A3: 18–25 days
Q4: Is it suitable for reinforced plastics?
A4: Yes, it supports GF materials.
Q5: Can it reduce investment costs?
A5: It can avoid repeated mold openings.
Personalized Customization Services
- Scalable mold design
- Upgrading to mass production options available
- Multiple material compatibility support
- Meet the transition from R&D to mass production
Related Cases
Our services cover all industries and reach all parts of the world.
