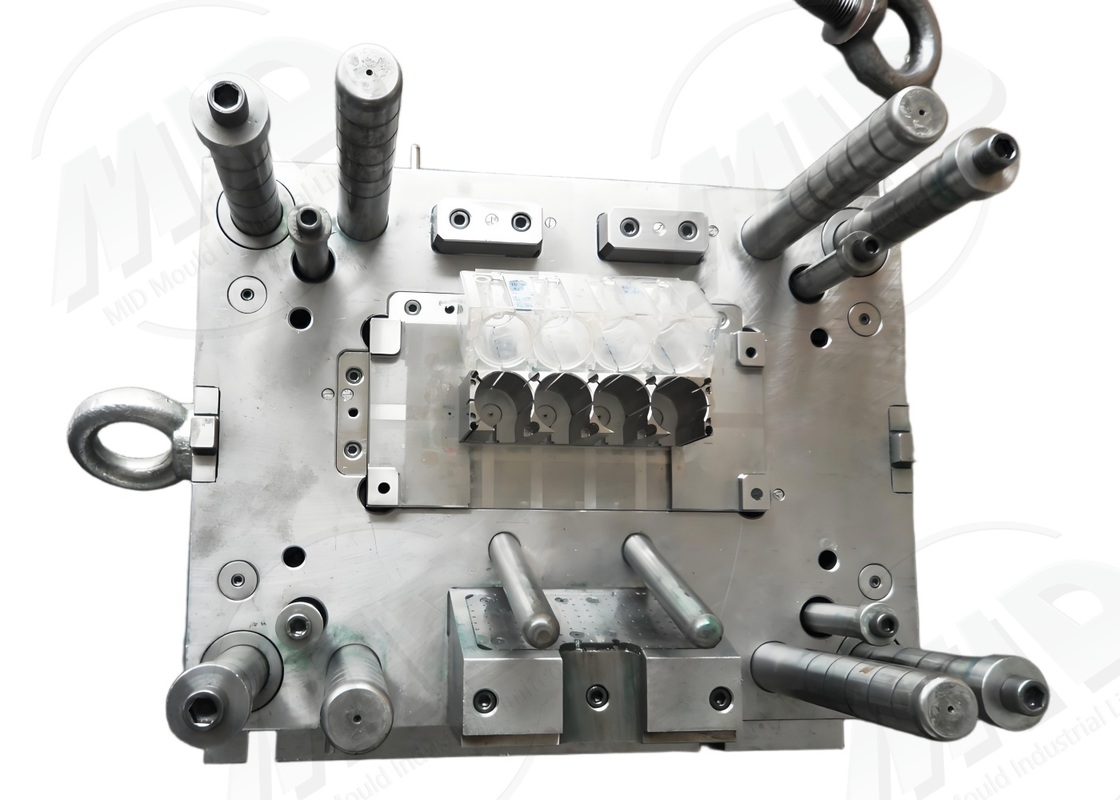

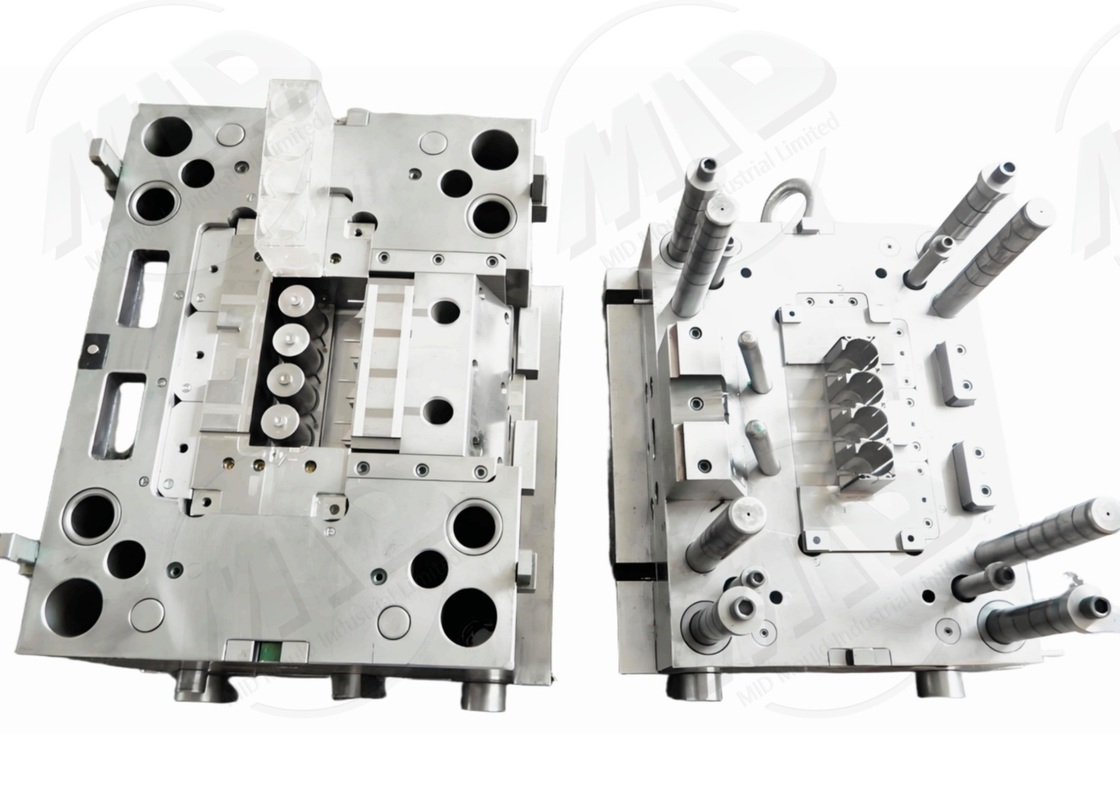

Aluminum Alloy Prototype Molds High Accuracy Custom Plastic Injection Mould
-
Highlight
Aluminum Alloy Prototype Molds
,Prototype Molds High Accuracy
,High Accuracy Custom Plastic Injection Mould
-
ProductPrototype Molds
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
CavityMulti Cavity,as Per Client's Requirement
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
Aluminum Alloy Prototype Molds High Accuracy Custom Plastic Injection Mould
Fast Delivery Prototype Molds Short Lead Time for Product Testing
Product Description
These prototype molds are designed specifically for customers who require rapid delivery. They utilize efficient processing and a simplified cooling system to ensure molds can be completed and delivered in a very short timeframe, making them ideal for urgent R&D testing and market demonstrations.
Process Flow
- Quick Requirements Verification and Design for Material (DFM) Analysis
- Quick Verification with Mold Flow Simulation
- CNC Machining and EDM Finishing
- Simplified Assembly and Mold Trial
- Quick Prototype Delivery
Product Specifications
| Item | Parameter Description |
|---|---|
| Mold Type | Quick Prototype Delivery |
| Mold Material | Aluminum Alloy P20 |
| Number of Cavities | Single |
| Mold Life | 10,000–50,000 Molds |
| Part Accuracy | ±0.05mm |
| Surface Treatment | Polishing, Sandblasting |
| Applicable Materials | ABS, PP, PC |
| Cooling System | Simple Cooling |
| Hot Runner System | None |
| Turn-off Time | 7–12 Days |
Product Applications
- Emergency R&D Verification
- Sample Display and Roadshow
- Marketing Prototypes
- Short-Run Trial Production
Product Advantages
- Shortest Turn-around Time: 7–12 Days
- Low Cost, Suitable for R&D
- Flexible Modifications and Rapid Optimization
- Suitable for Preemptive Market Verification
- Expedited Customization Available
FAQ
Q1: What is the Turn-around Time?
A1: 7–12 Days, Fast Delivery Available
Q2: What is the mold lifespan?
A2: Approximately 10,000–50,000 molds
Q3: Does it support expedited production?
A3: Yes, we can provide emergency solutions.
Q4: What materials are suitable?
A4: Common plastics such as ABS, PC, and PP.
Q5: Can it be used for mass production?
A5: Not recommended. Suitable for short-term R&D.
Personalized Customization Services
- Expedited delivery available
- Configurable with various cooling systems
- Optimize production cycles based on your needs
- Ensure rapid verification meets your needs
Transparent Part Prototype
Specifications
| Item | Parameter Description |
|---|---|
| Mold Material | S136H NAK80 |
| Cavities | Single |
| Mold Life | 100,000–200,000 Molds |
| Part Accuracy | ±0.02mm |
| Surface Treatment | Mirror Polishing |
| Applicable Materials | PC, PMMA |
| Cooling System | High-Efficiency Cooling |
| Hot Runner System | Configurable |
| Production Cycle | 15–22 Days |
Product Applications
- Transparent Appearance Parts
- Optical Test Samples
- Lamp and Lens Part Verification
- Market Display Samples
Product Advantages
- Mirror Polishing Ensures Transparency
- High Accuracy: ±0.02mm
- Moderate Mold Life: Reusable
- Surface Quality Approaching Production Standards
- Suitable for Optical and Appearance Part Testing
FAQ
Q1: Can Transparency Be Guaranteed?
A1: Yes, Mirror Polishing Can Be Used
Q2: What is the turnaround time?
A2: 15–22 days
Q3: Is it suitable for PC and PMMA?
A3: Yes, it supports common transparent materials.
Q4: What is the mold lifespan?
A4: 100,000–200,000 molds.
Q5: Can it be mass-produced?
A5: Primarily for R&D purposes. See the mass production plan for reference.
Customized Services
- Mirror polishing and optical processing available.
- Hot runner configuration available for enhanced transparency.
- Process optimization for transparent materials.
- Meeting optical and exterior design requirements.
