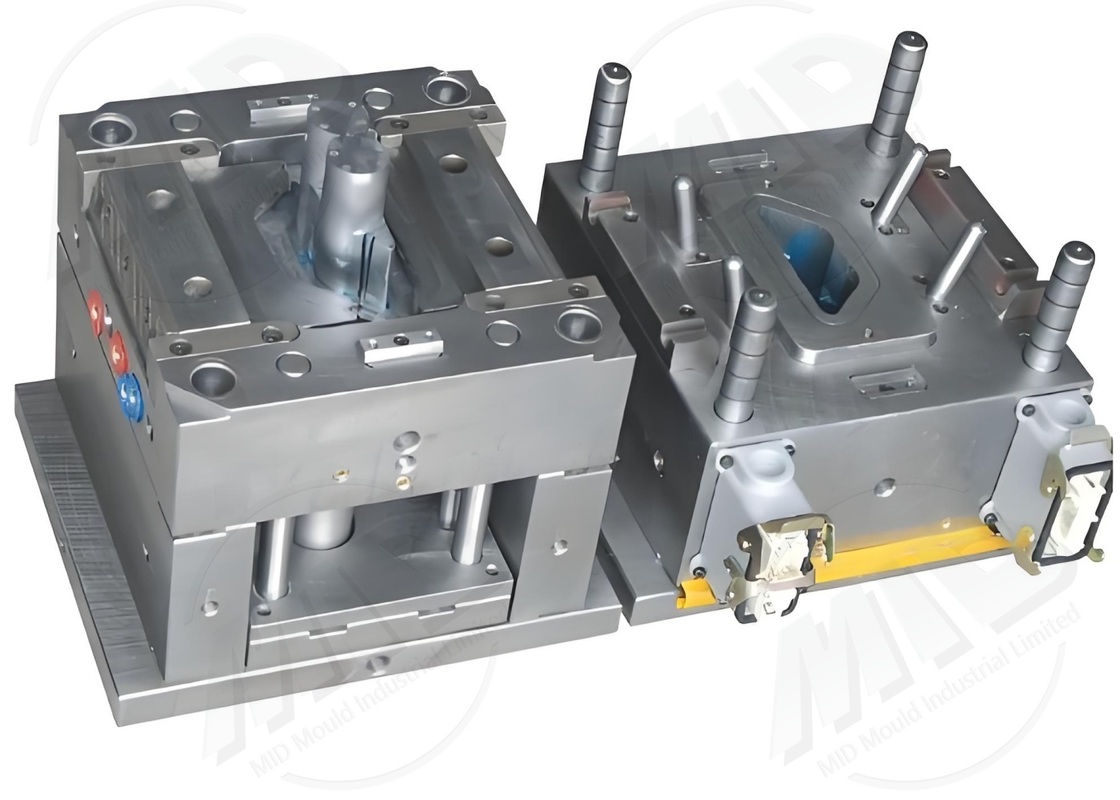

High Precision Prototype Molds for Injection Tooling ±0.02mm
Prototype Molds High Precision Injection Tooling for Product Design Verification
Product Processing
This precision prototype mold is designed for verifying functional and structural component assembly during R&D phases. Utilizing high-precision CNC and wire-cut machining, it achieves production-grade accuracy.
Process Flow
- Design Analysis and Assembly Tolerance Confirmation
- Mold Flow Simulation and Verification
- High-Precision CNC and Wire Cutting
- Mold Assembly and Debugging
- Mold Trial and Inspection
Product Specifications
| Item | Parameter | Description |
|---|---|---|
| Mold Type | Precision Prototype Mold | |
| Mold Material | NAK80 S136H | |
| Number of Cavities | 1–4 | |
| Mold Life | 100,000–300,000 Molds | |
| Part Accuracy | ±0.02mm | |
| Surface Treatment | Polished, Mirror Finish | |
| Applicable Materials | PC, ABS, PMMA, PA | |
| Cooling System | High-Efficiency Water Cooling | |
| Hot Runner System | Configurable Hot Runner | |
| Production Cycle | 15–25 Days |
Product Applications
- Functional Verification Samples
- Assembly Accuracy Inspection
- High-Precision Small-Batch Trial Production
- Appearance Parts Testing
Product Advantages
- High Accuracy ±0.02mm
- Long Mold Life Up to 300,000 Molds
- Verification of Assembly and Tolerance Matching
- Appearance and Transparent Parts Testing Supported
- Mold Performance Close to Production
FAQ
Q1: Suitable for High-Precision Parts
A1: ±0.02mm, meeting most precision requirements.
Q2: Can it be mass-produced?
A2: Primarily used for trial production and validation, and can serve as a reference for mass production molds.
Q3: What is the mold lifespan?
A3: 100,000–300,000 molds.
Q4: Can it process transparent parts?
A4: Yes, supporting materials such as PC and PMMA.
Q5: What is the turnaround time?
A5: Typically 15–25 days.
Customized Services
- Precision mold solutions available
- Hot runner system integration supported
- Mirror finish configurable to meet transparent part requirements
- Full-process integration supported from validation to mass production
