    Custom Insert Molds

    ,

    Precision Plastic Moulding Tooling

    ,

    Plastic Moulding Tooling Durable

  • Product Name
    Insert Molds
  • Shaping Mode
    Plastic Injection Mould,Plastic Injection Molding,Compression Mould
  • Material
    STEEL,ps,PP,Steel And Metal,aluminum
  • Product
    Vehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
  • Mould Life
    250000-300000shots,200~1 M Available,300,000shots,000 Times
  • Runner
    Hot Runner\ Cold Runner,cold/hot
  • Cavity
    Multi Cavity,as Per Client's Requirement
  • Product Material
    Plastic,Steel,PP,ABS,PS
  • Mold Material
    NAK80,H13,50#,P20,45#
  • Design Software
    CAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
  • Mould Material
    P20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
  • Application
    Home Appliance,Industrial,Automotive,various Range,Machine
  • Certification
    ISO9001,FDA,ISO13485
  • Mould Base
    Non-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
  • Surface Treatment
    Sandblasted,Texture,anodizing Black,clear Painting,Polishing
  • Size
    As Samples/drawings,customized Accepted,Customized Size
  • Mold Runner
    Hot&Cold Runner You Can Choose,Hot Runner And Code Runner
  • Mold Life
    000 To 1,500000 Shots,000 Shots,100000-1000000,50
  • Plastic Material
    Peek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
  • Place of Origin
    Dongguan, China
  • Brand Name
    MID MOULD
  • Certification
    ISO9001:2015 Certificate, export standard compliant
  • Minimum Order Quantity
    1 set
  • Price
    USD $3,000–$50,000 per set (depending on complexity)
  • Packaging Details
    Wooden case + anti-rust oil + protective film + packing list
  • Delivery Time
    25–45 working days (longer for complex tools)
  • Payment Terms
    50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
  • Supply Ability
    20–35 sets per month, depending on structure

Custom Insert Molds Precision Plastic Moulding Tooling Durable and Cost Effective

  • Custom Insert Molds Precision Plastic Moulding Tooling Durable and Cost Effective
Get Price Contact Now
Custom Insert Injection Molds High Quality Plastic Tooling Precision Durable and Cost Effective
High Quality Plastic Tooling - Precision, Durable and Cost Effective
Product Process

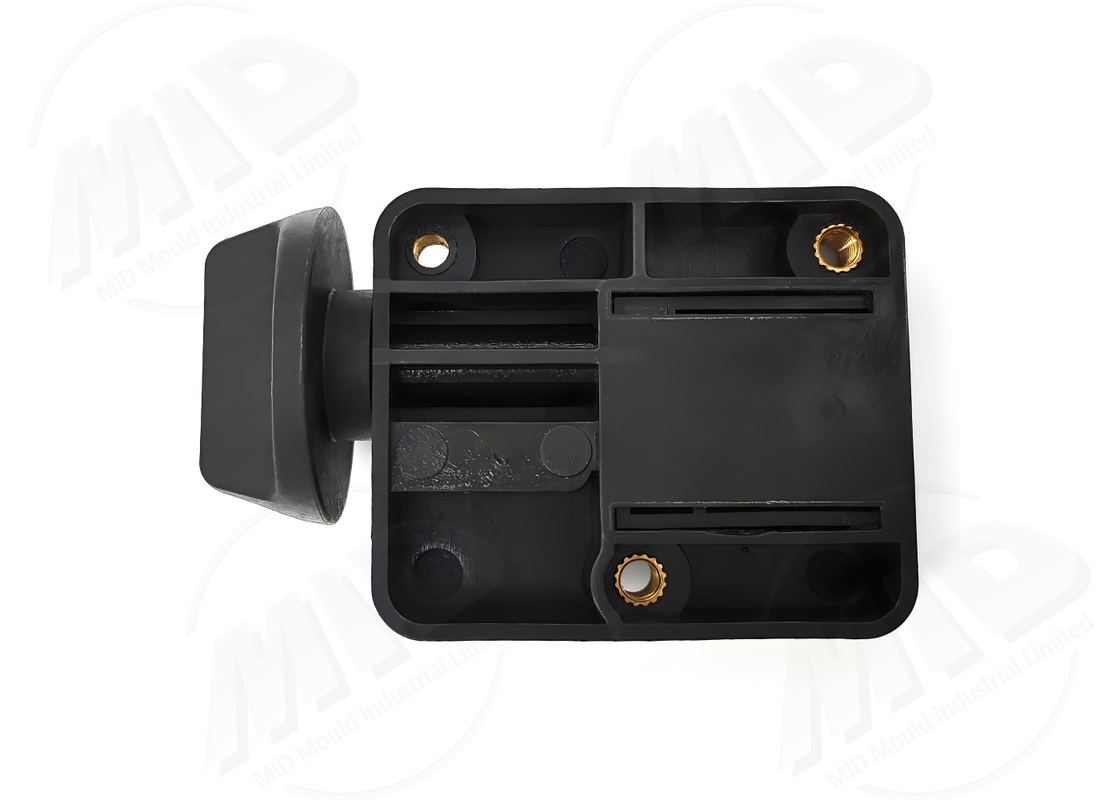

Insert molding is an advanced injection molding process that embeds metal components, threaded parts, or other functional inserts into plastic products. This innovative technique combines the lightweight properties of plastic with the strength of metal inserts in a single-step molding process, eliminating secondary assembly while enhancing product quality.
Process Flow
  • Mold Design: Structural planning based on insert shape and function
  • Mold Flow Analysis: Ensures uniform, defect-free plastic flow
  • CNC and Spark EDM: Creates high-precision cavities and insert slots
  • Mold Assembly: Installation of cooling circuits and positioning devices
  • Mold Trial Inspection: Verifies dimensional accuracy and insert stability
Product Specifications
Item Parameter
Mold Type: Insert Injection Mold
Mold Material: P20, H13, S136
Cavities: 2–12
Mold Life: 700,000–1.4 Million Cycles
Surface Treatment: Polishing, Nitriding, Sandblasting
Applicable Plastics: ABS, PC, PP, PA66
Insert Type: Nut, Copper, Steel Pin
Product Accuracy: ±0.018mm
Cooling System: Multi-circuit Parallel Water Cooling
Product Cycle: 55–80 Days
Product Advantages
  • Integrated plastic and insert molding creates secure, permanent bonds
  • High precision (±0.018mm) meets demanding part requirements
  • Significant reduction in labor and assembly costs
  • Extended mold life ideal for continuous mass production
Frequently Asked Questions
Q1: Is the mold suitable for small or large batches?
A1: Designed for both small and large production runs, with customizable cavity configurations to match your volume requirements.
Q2: Does the insert bond firmly to the plastic?
A2: Yes, the injection molding process creates a strong, permanent bond between plastic and insert.
Q3: What is the typical production cycle?
A3: Standard production cycle is 55-80 days, with slightly longer lead times for complex mold designs.
Q4: What is the mold's precision?
A4: Our molds maintain consistent precision of ±0.018mm.
Q5: Does it support automated insert placement?
A5: Yes, our molds are compatible with robotic systems for fully automated production.
Customized Services
We provide comprehensive customization options including mold cavity configuration, insert shape design, cooling system optimization, and surface treatment selection to perfectly match your specific production requirements.
