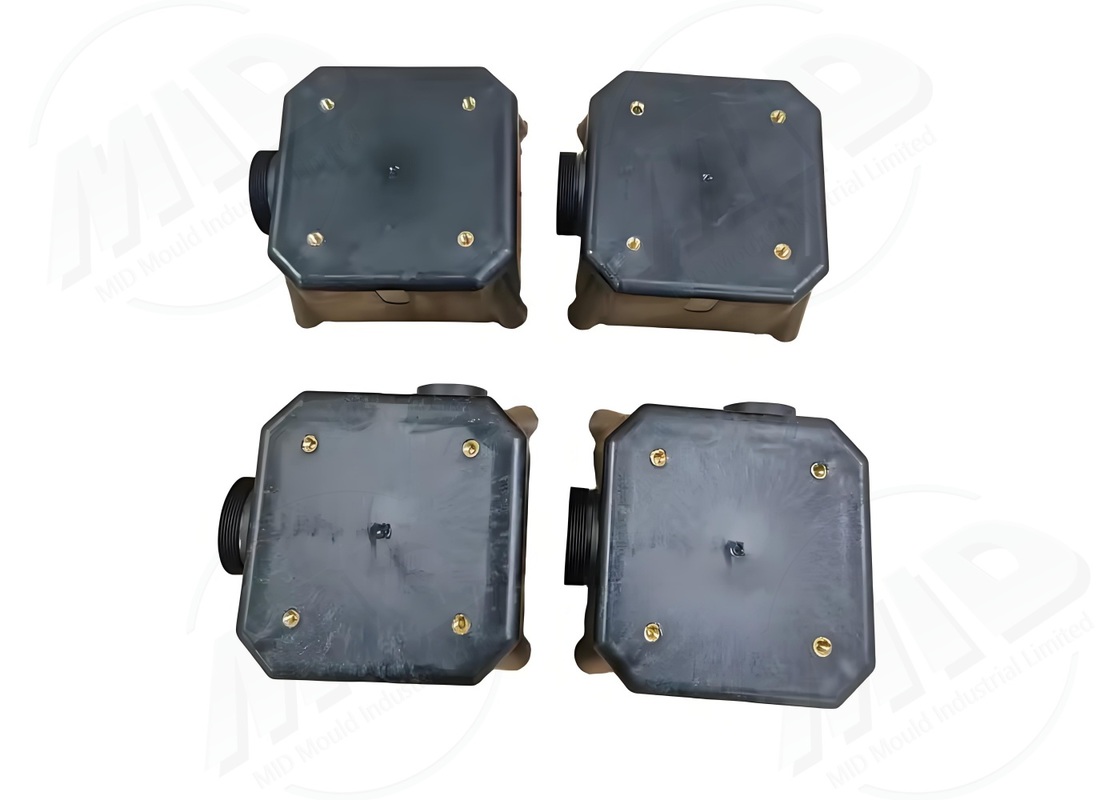

1 - 12 Cavities Insert Moulding 700K - 1.3M Cycles Precision Moulds For Plastic Injection

1 - 12 Cavities Insert Moulding 700K - 1.3M Cycles Precision Moulds For Plastic Injection

Products - Insert Molds
  • Highlight

    1 Cavities Insert Moulding

    ,

    12 Cavities Insert Moulding

    ,

    1.3M Cycles Precision Moulds

  • Product Name
    Insert Moulding
  • Shaping Mode
    Plastic Injection Mould,Plastic Injection Molding,Compression Mould
  • Material
    STEEL,ps,PP,Steel And Metal,aluminum
  • Product
    Vehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
  • Mould Life
    250000-300000shots,200~1 M Available,300,000shots,000 Times
  • Runner
    Hot Runner\ Cold Runner,cold/hot
  • Cavity
    Multi Cavity,as Per Client's Requirement
  • Product Material
    Plastic,Steel,PP,ABS,PS
  • Mold Material
    NAK80,H13,50#,P20,45#
  • Design Software
    CAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
  • Mould Material
    P20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
  • Application
    Home Appliance,Industrial,Automotive,various Range,Machine
  • Certification
    ISO9001,FDA,ISO13485
  • Mould Base
    Non-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
  • Surface Treatment
    Sandblasted,Texture,anodizing Black,clear Painting,Polishing
  • Size
    As Samples/drawings,customized Accepted,Customized Size
  • Mold Runner
    Hot&Cold Runner You Can Choose,Hot Runner And Code Runner
  • Mold Life
    000 To 1,500000 Shots,000 Shots,100000-1000000,50
  • Plastic Material
    Peek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
  • Place of Origin
    Dongguan, China
  • Brand Name
    MID MOULD
  • Certification
    ISO9001:2015 Certificate, export standard compliant
  • Minimum Order Quantity
    1 set
  • Price
    USD $3,000–$50,000 per set (depending on complexity)
  • Packaging Details
    Wooden case + anti-rust oil + protective film + packing list
  • Delivery Time
    25–45 working days (longer for complex tools)
  • Payment Terms
    50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
  • Supply Ability
    20–35 sets per month, depending on structure

1 - 12 Cavities Insert Moulding 700K - 1.3M Cycles Precision Moulds For Plastic Injection

  • 1 - 12 Cavities Insert Moulding 700K - 1.3M Cycles Precision Moulds For Plastic Injection
Get Price Contact Now
Custom Insert Molds for Plastic Injection, 1-12 Cavities, 700K-1.3M Cycles
Precision durable and fully customizable insert molds for high-performance applications.
Product Process
Insert injection molding fuses a functional insert with the molded part during injection molding, creating a high-strength and stable product. This process is widely used in the manufacture of parts requiring high precision, wear resistance, and integrity.
Process Flow
  • Mold Design: Plan insert slots and force distribution
  • Mold Flow Analysis: Optimize filling and venting systems
  • CNC Machining: Precision machining of cavities and insert slots
  • Assemble cooling system and positioning device
  • Mold Trial Inspection: Check dimensions and bond strength
Product Specifications
Item Parameter Description
Mold Type Insert injection mold
Mold Material H13, 1.2316, S136
Number of Cavities 1–12
Mold Life 700,000–1.3 Million cycles
Surface Treatment Polishing, Sandblasting, Nitriding
Applicable Plastics ABS, PC, PA, PP
Insert Type Copper, Nut, Steel
Product Accuracy ±0.015mm
Cooling System Multi-channel water cooling system
Production Cycle 55–80 Days
Product Advantages
  • Strong bond between insert and plastic
  • High accuracy: ±0.015mm
  • Long mold life and stable operation
  • Eliminates secondary processing steps
Frequently Asked Questions
Q1: Is the mold suitable for a variety of plastics?
A1: Suitable for a variety of engineering plastics, including ABS, PC, PA, and PP.
Q2: Will the insert shift?
A2: No, the mold positioning system prevents this.
Q3: What is the mold lifespan?
A3: Over a million mold cycles.
Q4: Can you produce high-cavity molds?
A4: Yes, we can customize them based on your production needs.
Q5: What is the approximate production lead time?
A5: Typically 55–80 days.
Customized Services
We can customize the mold cavity count, insert type, cooling method, and automation interface to meet your specific needs, providing a comprehensive solution.
