Custom Insert Molds
,Insert Molds High Accuracy
,High Accuracy Plastic Injection Moulding Dies
-
Product NameInsert Molds
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
ProductVehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
CavityMulti Cavity,as Per Client's Requirement
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
Custom Insert Molds High Accuracy Plastic Injection Moulding Dies Durable
Advanced Insert Injection Mold Solutions
High Accuracy Plastic Molds with Custom Design
Product Process

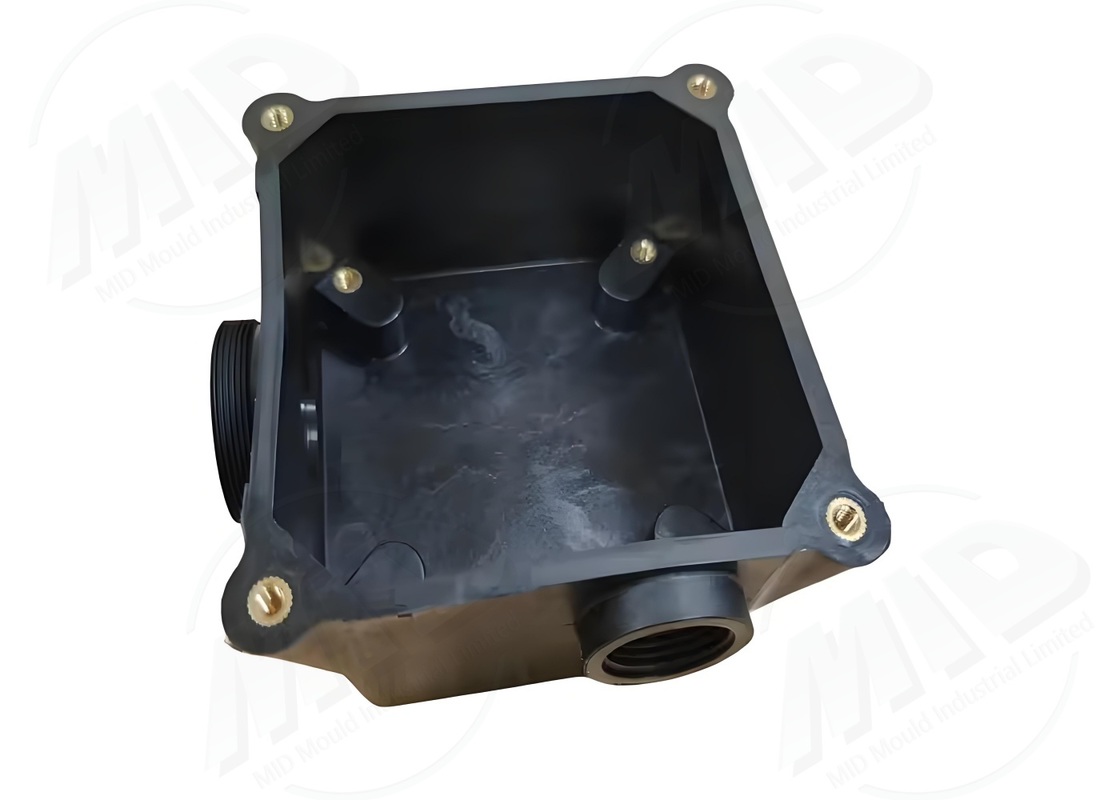

Insert injection molds combine the advantages of plastic and metal components to create complex products in a single injection molding process. They are characterized by strong product integrity and excellent durability, and are widely used in the manufacture of parts requiring electrical conductivity, wear resistance, or high temperature resistance.
Process Flow
- Mold Design: Plan insert layout and stress analysis
- Mold Flow Analysis: Ensure smooth melt flow
- Precision Machining: CNC and EDM mold cavities and insert slots
- Assemble cooling system and positioning device
- Mold Trial: Verify product strength and appearance
Product Specifications
| Item | Parameter Description |
|---|---|
| Mold Type | Insert injection mold |
| Mold Material | 1.2344 718H H13 |
| Number of Cavities | 1–8 |
| Mold Life | 700,000–1.2 Million cycles |
| Surface Treatment | Polishing, Nitriding, Sandblasting |
| Applicable Plastics | ABS, PC, PA, PP |
| Insert Type | Copper, Nuts, Steel |
| Product Accuracy | ±0.015mm |
| Cooling System | Multi-circuit water cooling |
| Production Cycle | 55–80 Days |
Product Advantages
- High Accuracy: ±0.015mm
- Both strength and functionality
- One-shot molding reduces assembly time
- Durable mold with long service life
FAQ
Q1: How can inserts be prevented from shifting?
A1: The mold is designed with precise positioning devices.
Q2: Is the mold suitable for mass production?
A2: Yes, with a lifespan of up to one million mold cycles.
Q3: Can complex insert combinations be made?
A3: Yes, we support a mix of multiple inserts.
Q4: What is the product tolerance?
A4: ±0.015mm.
Q5: Is it suitable for automated production?
A5: Yes, we support robot loading.
Customized Services
We offer comprehensive customization of insert type, mold structure, and cooling system based on customer needs.
Related Cases
Our services cover all industries and reach all parts of the world.
