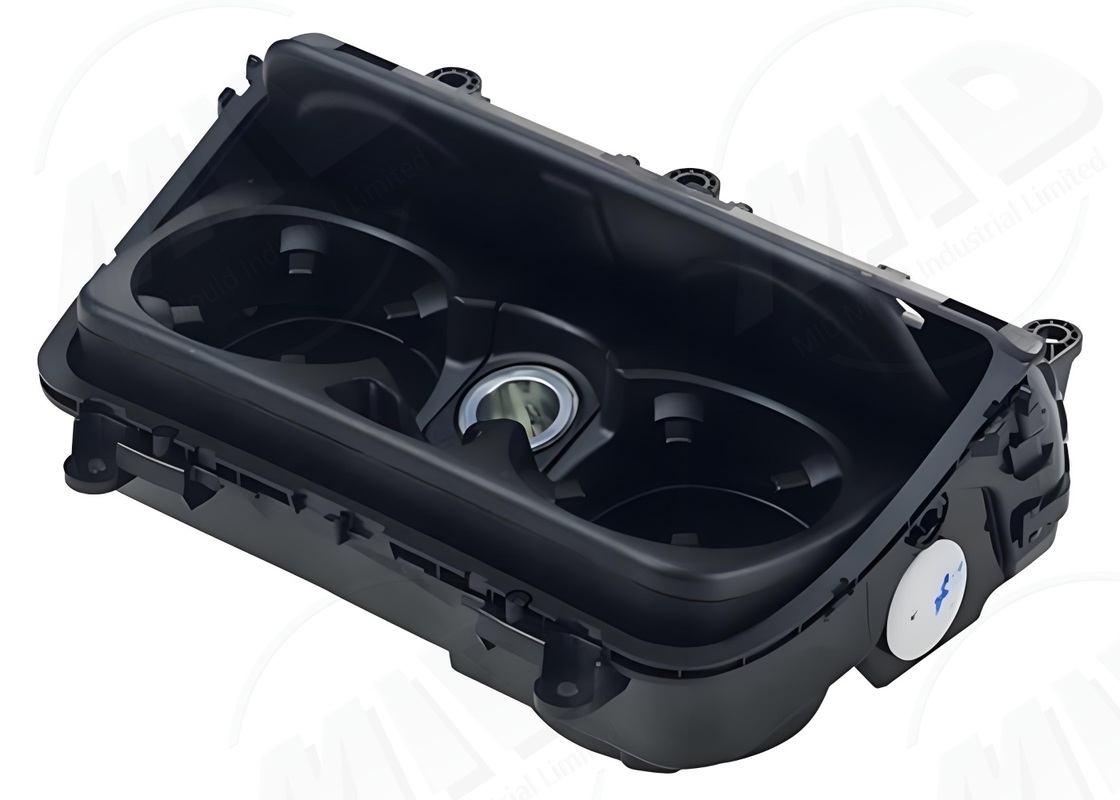

1 - 8 Cavities Metal Insert Molding High Precision Injection Mould Tool
Advanced Insert Injection Molds Custom Plastic Tooling High Precision And Long Life
Product Process
Insert injection molding allows metal components, threaded parts, or functional modules to be embedded into plastic parts during molding, achieving a combination of strength and functionality. This process improves product integrity while reducing secondary processing and labor costs.
Process Flow
- Mold Design: Plan insert slots and force balance
- Mold Flow Analysis: Ensure uniform melt flow
- CNC and EDM: High-precision cavity cutting
- Mold Assembly: Install cooling and insert positioning devices
- Mold Verification: Test accuracy and bond strength
Product Specifications
| Item | Parameter | Description |
|---|---|---|
| Mold Type | Insert injection mold | |
| Mold Material | 718H H13 1.2316 | |
| Cavities | 1–8 | |
| Mold Life | 800,000–1.4 million cycles | |
| Surface Treatment | Polishing, Sandblasting, Chrome Plating | |
| Applicable Plastics | ABS, PC, PA66, PBT | |
| Insert Type | Nuts, Copper, Steel | |
| Product Accuracy | ±0.02mm | |
| Cooling System | Efficient water channel design | |
| Production Cycle | 60–85 days |
Product Advantages
- Integrated molding, secure bonding
- High precision: ±0.02mm
- Reduce labor and process costs
- Long mold life, suitable for mass production
FAQ
Q1: Can the mold's cavity count be customized?
A1: Yes, we support designs with 1–8 cavities or more.
Q2: Will the insert shift?
A2: The mold positioning device ensures stability.
Q3: Is the mold suitable for engineering plastics?
A3: Yes, we support a variety of high-performance materials.
Q4: What is the mold lifespan?
A4: Typically 800,000–1.4 million molds.
Q5: What is the production cycle?
A5: 60–85 days, depending on complexity.
Customized Services
We offer comprehensive customization options for insert shape, cooling method, mold structure, and surface treatment to meet diverse production needs.
