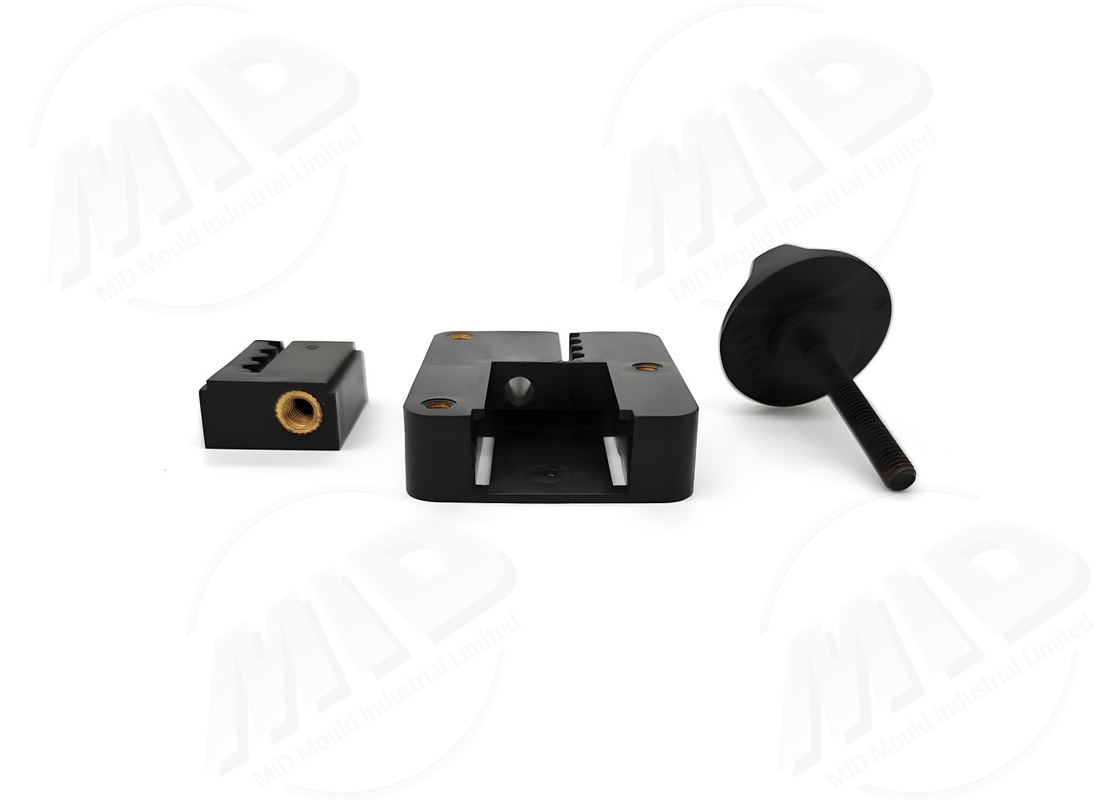

1 - 8 Cavities Insert Molds Customized Injection Mold For Metal Plastic Overmolding
-
Highlight
1 Cavity Insert Molds
,8 Cavities Insert Molds
,Customized Injection Mold
-
Product NameInsert Molds
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
ProductVehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
CavityMulti Cavity,as Per Client's Requirement
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
1 - 8 Cavities Insert Molds Customized Injection Mold For Metal Plastic Overmolding
Premium Insert Molds For Metal Plastic Overmolding Customizable High Precision And Long Service Life
Customizable high-precision insert molds with long service life for metal-plastic composite components.
Product Process
Our insert injection mold technology combines pre-insert placement with melt injection to create products that maintain plastic's lightweight properties while incorporating metal's durability and conductivity.
Process Flow
- Mold Design: Precise determination of insert installation space and fixing method
- CAE Simulation: Optimization of plastic flow and insert force distribution
- CNC Machining: High-precision cutting and EDM cavity machining
- Assembly & Commissioning: Integration of cooling channels and positioning mechanisms
- Mold Verification: Thorough checking of insert bonding strength and dimensional accuracy
Product Specifications
| Parameter | Description |
|---|---|
| Mold Type | Insert injection mold |
| Mold Material | S136 H13 1.2738 |
| Number of Cavities | 1–8 |
| Mold Life | 700,000–1.5 million cycles |
| Surface Treatment | Chrome plating, polishing, nitriding |
| Applicable Plastics | ABS, PC, PA66, PBT |
| Insert Type | Nuts, threaded parts, conductive parts |
| Product Accuracy | ±0.015mm |
| Cooling System | High-efficiency water cooling with parallel piping |
| Production Cycle | 55–85 days |
Product Applications
- Electrical terminals and connectors
- Industrial fastener components
- Automotive support components
- Medical plastic-coated metal structural components
Product Advantages
- Exceptional product bonding strength with long service life
- Significant reduction in labor assembly costs
- Ideal for high-precision functional parts
- Versatile solution for multiple industry requirements
Frequently Asked Questions
Q: Can insert molds be used for small-batch trial production?
A: Yes, we support small-cavity mold designs for trial production.
Q: Are there any restrictions on insert materials?
A: No, common metals and ceramics are all acceptable materials.
Q: What is the typical mold lifespan?
A: Under normal use conditions, our molds can achieve up to one million cycles.
Q: Is the production cycle flexible?
A: Yes, we can adjust the timeline based on project complexity and urgency.
Q: Can customization be supported?
A: Absolutely. We customize insert types, cavity numbers, cooling methods, and automation interfaces to meet specific requirements.
Customized Services
We provide comprehensive customization options including insert type selection, mold cavity configuration, cooling system design, and automation interface integration. Our solutions are tailored for medical, automotive, and electronics industry applications.
Related Cases
Our services cover all industries and reach all parts of the world.
