Durable Plastic Insert Moulding
,Precision Plastic Parts Tooling
,Plastic Parts Tooling Durable
-
Product NamePlastic Insert Moulding
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
ProductVehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
CavityMulti Cavity,as Per Client's Requirement
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure

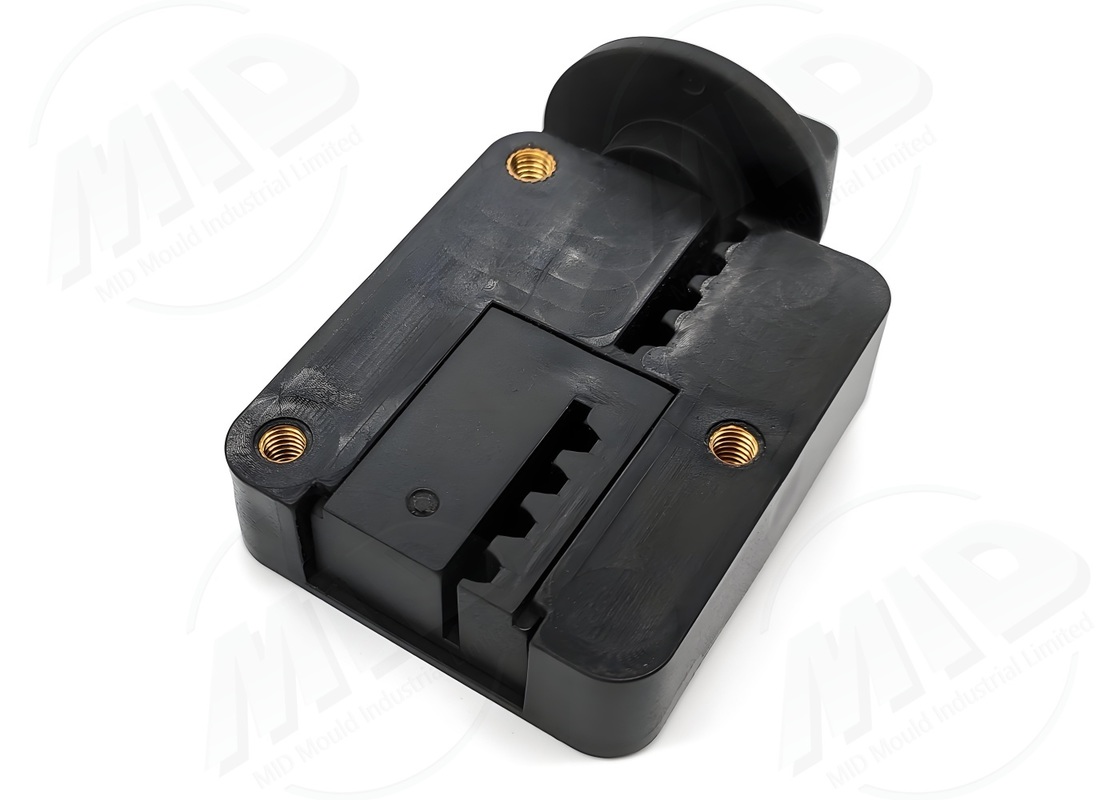

Durable Plastic Insert Moulding Precision Plastic Parts Tooling
Precision Insert Molds Custom Injection Tooling Durable High Quality and Cost Effective
Our custom insert injection molds deliver long life and reliable performance for precision plastic components with embedded functional elements.
Product Process
Insert injection molding achieves efficient, one-shot manufacturing by embedding functional components (such as threads, copper parts, or sensors) into the plastic during molding. This method simultaneously meets strength, functionality, and aesthetic requirements while reducing post-processing costs.
Process Flow
- Mold Design: Plan the insert insertion method and fixing slot position
- CAE Analysis: Optimize melt flow and venting channels
- CNC and EDM: Ensure cavity and insert slot accuracy
- Mold Assembly: Insert positioning and cooling structure installation
- Mold Trial Inspection: Verify insert bonding and dimensions
Product Specifications
| Item | Parameter | Description |
|---|---|---|
| Mold Type | Insert injection mold | |
| Mold Material | P20, H13, S136 | |
| Cavities | 2–16 | |
| Mold Life | 800,000–1.5 million cycles | |
| Surface Treatment | Mirror polish, sandblasting, chrome plating | |
| Applicable Plastics | PC, ABS, PP, PBT | |
| Insert Type | Nuts, copper parts, electronic components | |
| Product Accuracy | ±0.02mm | |
| Cooling System | Independent water channel design | |
| Production Cycle | 60–85 days |
Product Advantages
- One-shot molding, combining strength and functionality
- High accuracy: ±0.02mm
- Reduces subsequent assembly steps
- Long mold life, suitable for long-term mass production
Frequently Asked Questions
Q1: Is the insert easily detached?
A1: No, the insert is firmly integrated into the plastic.
Q2: Is it suitable for automated insert placement?
A2: Yes, it can be used with a robot.
Q3: What is the mold production cycle?
A3: Typically 60–85 days, slightly longer for complex designs.
Q4: Is the mold suitable for small batches?
A4: Yes, we offer low-cavity mold solutions.
Q5: Can it be customized according to customer needs?
A5: Yes, we support fully customized designs.
Customized Services
We can customize mold structure, insert design, cooling methods, and automation interfaces to meet diverse production needs.
Related Cases
Our services cover all industries and reach all parts of the world.
