Custom Insert Molds
,H13 Steel Plastic Injection Moulding Tooling
,1.3M Cycles Plastic Injection Moulding Tooling
-
Product NameInsert Molds
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
ProductVehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
CavityMulti Cavity,as Per Client's Requirement
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
Custom Insert Molds H13 Steel Plastic Injection Moulding Tooling 700K - 1.3M Cycles
Custom Insert Molds H13 Steel 700K-1.3M Cycles Injection Tooling

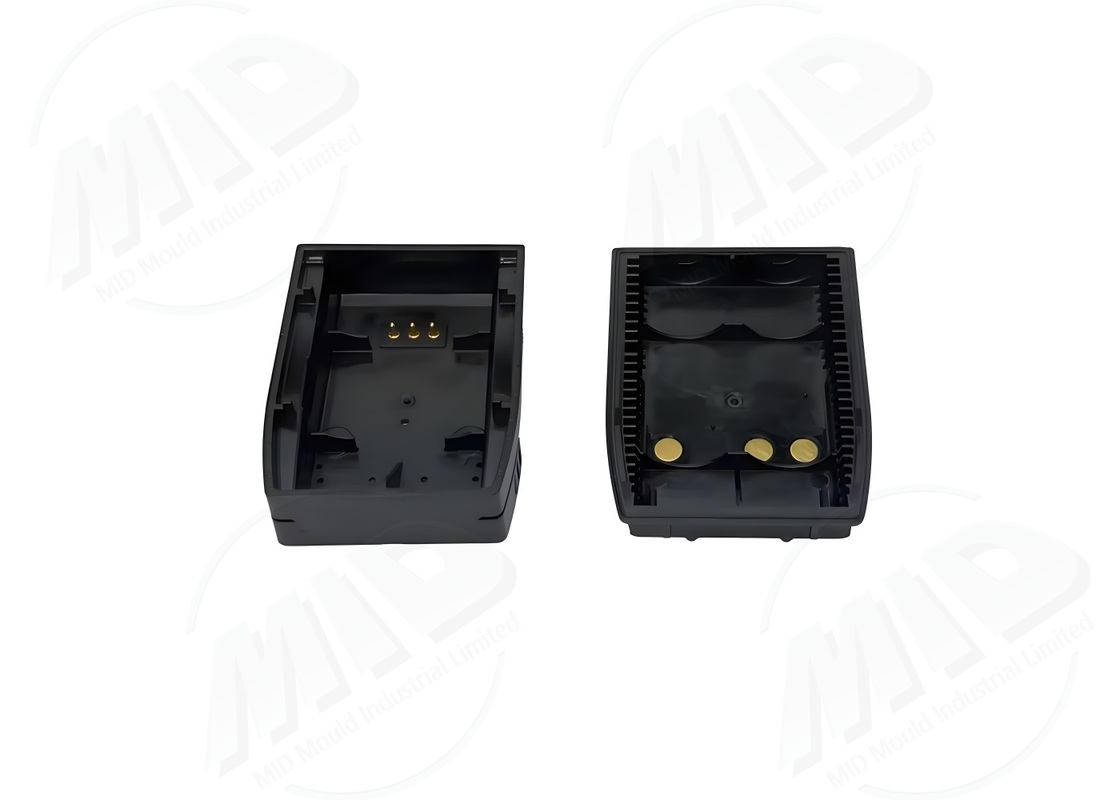

Insert injection molding improves product performance by embedding functional components during the molding process, reducing assembly steps while enhancing production efficiency and dimensional precision.
Product Process
Our comprehensive insert molding process ensures optimal results:
- Mold Design: Analysis of insert positioning and stress distribution
- CAE Simulation: Optimization of filling and venting design
- Precision Machining: CNC and EDM cavity fabrication
- System Assembly: Cooling system and insert positioning device
- Mold Testing: Verification of bonding strength and dimensions
Product Specifications
| Item | Parameter | Description |
|---|---|---|
| Mold Type | Insert Injection Mold | |
| Mold Material | H13, S136, P20 | |
| Number of Cavities | 2–12 | |
| Mold Life | 700,000–1.3 Million Cycles | |
| Surface Treatment | Mirror Polishing, Sandblasting, Nitriding | |
| Applicable Plastics | PA66, PBT, ABS, PC | |
| Insert Type | Copper, Steel, Nut | |
| Product Accuracy | ±0.015mm | |
| Cooling System | Multi-Circuit Water Cooling System | |
| Production Cycle | 50–80 Days |
Product Advantages
- One-shot molding reduces assembly steps
- High precision accuracy: ±0.015mm
- Extended mold life for cost control
- Strong bonding for durable products
Frequently Asked Questions
Can the mold withstand high-intensity production?
Yes, with a service life of up to one million mold cycles.
Will the part deform?
Mold flow analysis and cooling systems ensure stability.
Can complex inserts be made?
Yes, we support multiple insert combinations.
What is the production cycle?
Typically 50–80 days.
Can customization be provided?
Yes, we can customize the design based on customer needs.
Customized Services
We provide tailored solutions for mold cavity count, insert type, cooling system configuration, and surface treatment to meet specific production requirements.
