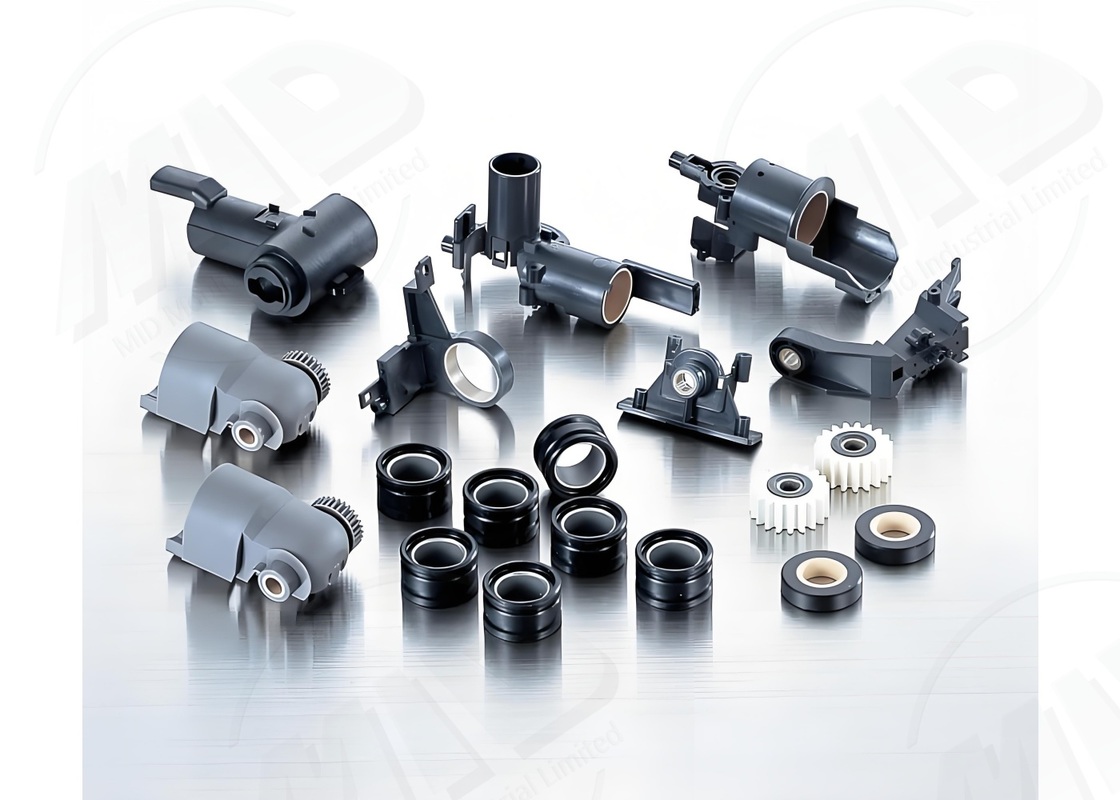

Precision Insert Injection Molding Custom Plastic Insert Molding Long Lasting And Efficient

Precision Insert Injection Molding Custom Plastic Insert Molding Long Lasting And Efficient

Products - Insert Molds
  • Highlight

    Precision Insert Injection Molding

    ,

    Custom Plastic Insert Molding

    ,

    Efficient Plastic Insert Molding

  • Product Name
    Insert Injection Molding
  • Shaping Mode
    Plastic Injection Mould,Plastic Injection Molding,Compression Mould
  • Material
    STEEL,ps,PP,Steel And Metal,aluminum
  • Product
    Vehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
  • Mould Life
    250000-300000shots,200~1 M Available,300,000shots,000 Times
  • Runner
    Hot Runner\ Cold Runner,cold/hot
  • Cavity
    Multi Cavity,as Per Client's Requirement
  • Product Material
    Plastic,Steel,PP,ABS,PS
  • Mold Material
    NAK80,H13,50#,P20,45#
  • Design Software
    CAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
  • Mould Material
    P20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
  • Application
    Home Appliance,Industrial,Automotive,various Range,Machine
  • Certification
    ISO9001,FDA,ISO13485
  • Mould Base
    Non-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
  • Surface Treatment
    Sandblasted,Texture,anodizing Black,clear Painting,Polishing
  • Size
    As Samples/drawings,customized Accepted,Customized Size
  • Mold Runner
    Hot&Cold Runner You Can Choose,Hot Runner And Code Runner
  • Mold Life
    000 To 1,500000 Shots,000 Shots,100000-1000000,50
  • Plastic Material
    Peek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
  • Place of Origin
    Dongguan, China
  • Brand Name
    MID MOULD
  • Certification
    ISO9001:2015 Certificate, export standard compliant
  • Minimum Order Quantity
    1 set
  • Price
    USD $3,000–$50,000 per set (depending on complexity)
  • Packaging Details
    Wooden case + anti-rust oil + protective film + packing list
  • Delivery Time
    25–45 working days (longer for complex tools)
  • Payment Terms
    50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
  • Supply Ability
    20–35 sets per month, depending on structure

Precision Insert Injection Molding Custom Plastic Insert Molding Long Lasting And Efficient

  • Precision Insert Injection Molding Custom Plastic Insert Molding Long Lasting And Efficient
Get Price Contact Now
Precision Insert Injection Molds Custom Plastic Tooling Long Lasting And Efficient
Custom plastic tooling designed for long-lasting performance and efficient production of high-precision plastic parts with integrated metal components.
Product Process
Insert injection molding secures metal or functional components directly into plastic parts during molding, creating integrated products that combine plastic's lightweight properties with insert strength. This process is ideal for durable, precision parts.
Process Flow
  • Mold Design: Determine insert position and fixing method
  • Mold Flow Analysis: Optimize melt flow and filling performance
  • CNC Machining: Cut the mold cavity and insert slot
  • Assembly: Install cooling system and positioning devices
  • Mold Trial Inspection: Verify dimensions, accuracy, and bonding strength
Product Specifications
Item Parameter Description
Mold Type Insert injection mold
Mold Material P20 H13 718H
Number of Cavities 1–10
Mold Life 600,000–1.2 Million Cycles
Surface Treatment Polishing, Sandblasting, Chrome Plating
Applicable Plastics ABS, PC, PP, PA
Insert Type Nuts, Copper, Steel
Product Accuracy ±0.02mm
Cooling System Independent water cooling
Production Cycle 55–75 Days
Product Advantages
  • Strong, durable bond between insert and plastic part
  • High precision accuracy: ±0.02mm
  • Reduces manual assembly steps and labor costs
  • Extended mold life for long-term mass production
Frequently Asked Questions
What plastics are suitable for this mold?
Common engineering plastics such as ABS, PC, PP, and PA are all compatible with our insert injection molds.
Can the insert be placed automatically?
Yes, we support robotic automation for insert placement to improve efficiency and consistency.
What is the approximate mold lifespan?
Our molds typically last between 600,000–1.2 million cycles depending on material and usage conditions.
Can you make multi-cavity molds?
Yes, we can customize molds with 1–10 cavities based on your production volume requirements.
What is the mold cycle time?
The standard production cycle is 55–75 days from design to finished mold.
Customized Services
We provide tailored solutions for cavity count, insert type, cooling methods, and surface treatments to meet diverse production needs. Contact us to discuss your specific requirements.
