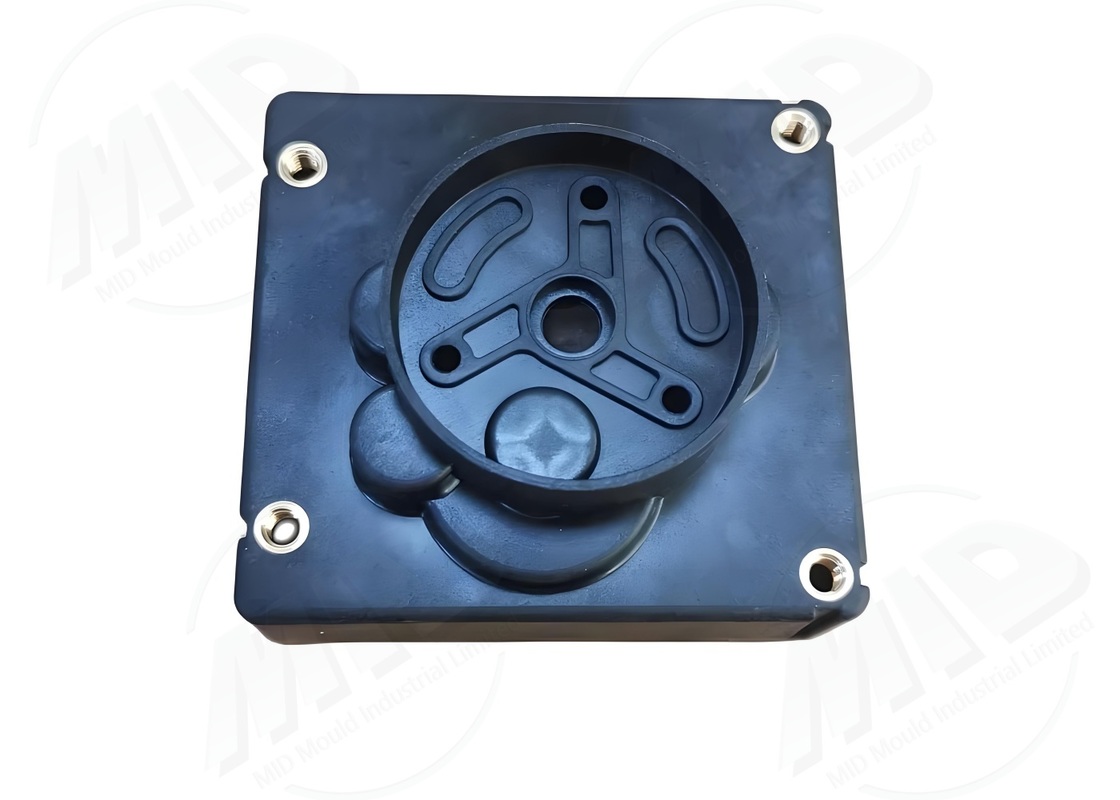

Custom Insert Injection Molds High Precision Plastic Tooling Long Life and Reliable

Custom Insert Injection Molds High Precision Plastic Tooling Long Life and Reliable

Products - Insert Molds
  • Highlight

    Custom insert injection mold

    ,

    1-12 cavities insert mold

    ,

    High-cycle insert mold with warranty

  • Shaping Mode
    Plastic Injection Mould,Plastic Injection Molding,Compression Mould
  • Material
    STEEL,ps,PP,Steel And Metal,aluminum
  • Product
    Vehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
  • Mould Life
    250000-300000shots,200~1 M Available,300,000shots,000 Times
  • Runner
    Hot Runner\ Cold Runner,cold/hot
  • Cavity
    Multi Cavity,as Per Client's Requirement
  • Product Material
    Plastic,Steel,PP,ABS,PS
  • Mold Material
    NAK80,H13,50#,P20,45#
  • Design Software
    CAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
  • Mould Material
    P20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
  • Application
    Home Appliance,Industrial,Automotive,various Range,Machine
  • Product Name
    Plastic Injection Mould,injection Machine Mold,Shanghai Factory Cheap Plastic Component Injection Mold,High Quality Virgin Raw Material Custom Plastic Injection Mold Product,Gear Parts
  • Certification
    ISO9001,FDA,ISO13485
  • Mould Base
    Non-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
  • Surface Treatment
    Sandblasted,Texture,anodizing Black,clear Painting,Polishing
  • Size
    As Samples/drawings,customized Accepted,Customized Size
  • Mold Runner
    Hot&Cold Runner You Can Choose,Hot Runner And Code Runner
  • Mold Life
    000 To 1,500000 Shots,000 Shots,100000-1000000,50
  • Plastic Material
    Peek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
  • Place of Origin
    Dongguan, China
  • Brand Name
    MID MOULD
  • Certification
    ISO9001:2015 Certificate, export standard compliant
  • Minimum Order Quantity
    1 set
  • Price
    USD $3,000–$50,000 per set (depending on complexity)
  • Packaging Details
    Wooden case + anti-rust oil + protective film + packing list
  • Delivery Time
    25–45 working days (longer for complex tools)
  • Payment Terms
    50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
  • Supply Ability
    20–35 sets per month, depending on structure

Custom Insert Injection Molds High Precision Plastic Tooling Long Life and Reliable

  • Custom Insert Injection Molds High Precision Plastic Tooling Long Life and Reliable
Get Price Contact Now
Precision Insert Molds Custom Injection Tooling Durable High Quality and Cost Effective
Product Process
Insert molding is a process that embeds metal parts, nuts, or electronic components into plastic during the injection molding process. This single-step molding process combines the lightweight of plastic with the strength or functionality of an insert, significantly improving overall performance and reliability.
Process Flow
  • Mold Design: Analyze insert dimensions and mounting methods
  • CAE Simulation: Optimize plastic flow and filling balance
  • CNC Machining: High-precision Cavity and Insert Slot Cutting
  • Mold Assembly: Install insert positioning and cooling system
  • Mold Trial Testing: Verify strength, appearance, and dimensional accuracy
Product Specifications
Item Parameter Description
Mold Type: Insert Injection Mold
Mold Material: 718H H13 1.2738
Cavities: 1–12
Mold Life: 700,000–1.3 Million Cycles
Surface Treatment: Polishing, Sandblasting, Nitriding
Applicable Plastics: ABS, PC, PA66, PBT
Insert Type: Nuts, Steel, Electronic Pins
Product Accuracy: ±0.015mm
Cooling System: Efficient Parallel Water Circuits
Product Cycle: 50–75 Days
Product Advantages
  • Insert and plastic are firmly integrated
  • High accuracy: ±0.015mm, meeting stringent requirements
  • Reduced subsequent assembly steps
  • Long mold life suitable for mass production
FAQ
Q1: Can the mold be adapted to accommodate a variety of plastics?
A1: Yes, common engineering plastics are supported.
Q2: How is the insert placement accuracy guaranteed?
A2: The mold is designed with a positioning device to ensure precision.
Q3: What is the typical mold lifespan?
A3: Over a million mold cycles.
Q4: Does it support automated insert placement?
A4: Yes, the mold can be used with a robot.
Q5: What is the production cycle?
A5: Typically 50–75 days, depending on complexity.
Customized Services
We can customize the number of mold cavities, insert type, automation interfaces, and cooling system to meet customer needs, enabling customized production.
