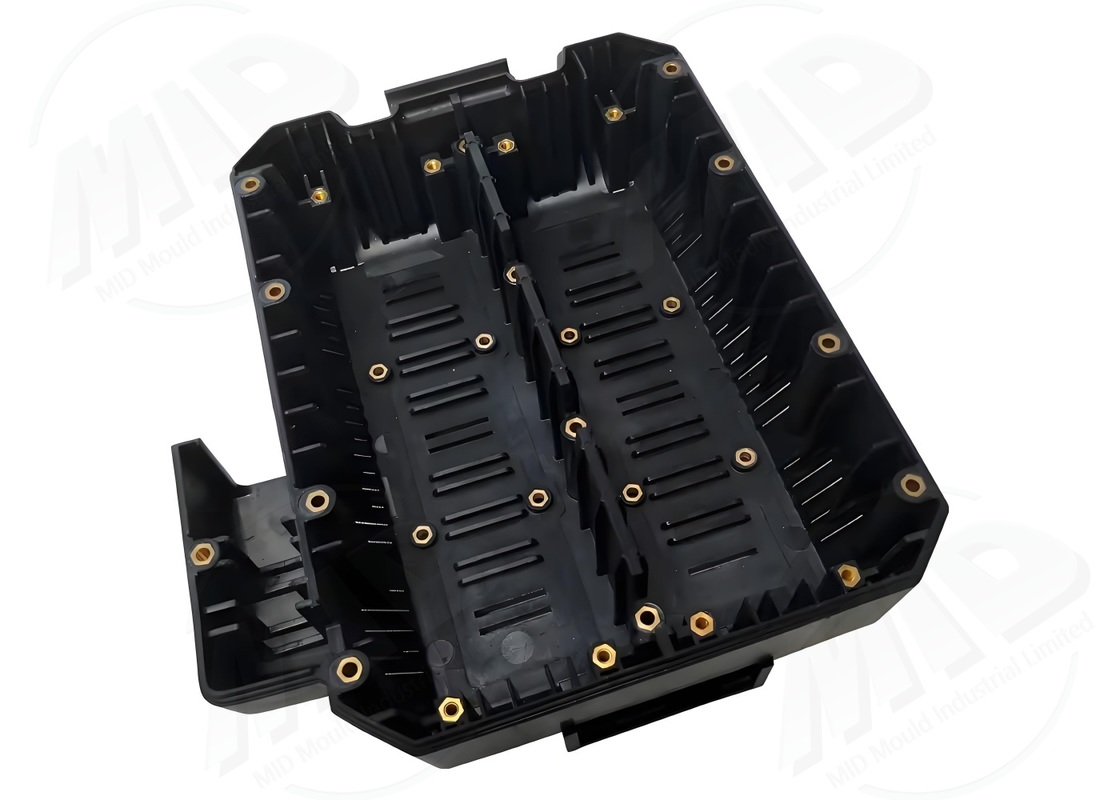

Custom Plastic Injection Molds with Insert Technology Reliable Long Life and High Accuracy

Custom Plastic Injection Molds with Insert Technology Reliable Long Life and High Accuracy

Products - Insert Molds
  • Highlight

    custom plastic injection molds

    ,

    high-cycle insert molds

    ,

    durable injection molds with warranty

  • Shaping Mode
    Plastic Injection Mould,Plastic Injection Molding,Compression Mould
  • Material
    STEEL,ps,PP,Steel And Metal,aluminum
  • Product
    Vehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
  • Mould Life
    250000-300000shots,200~1 M Available,300,000shots,000 Times
  • Runner
    Hot Runner\ Cold Runner,cold/hot
  • Cavity
    Multi Cavity,as Per Client's Requirement
  • Product Material
    Plastic,Steel,PP,ABS,PS
  • Mold Material
    NAK80,H13,50#,P20,45#
  • Design Software
    CAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
  • Mould Material
    P20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
  • Application
    Home Appliance,Industrial,Automotive,various Range,Machine
  • Product Name
    Plastic Injection Mould,injection Machine Mold,Shanghai Factory Cheap Plastic Component Injection Mold,High Quality Virgin Raw Material Custom Plastic Injection Mold Product,Gear Parts
  • Certification
    ISO9001,FDA,ISO13485
  • Mould Base
    Non-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
  • Surface Treatment
    Sandblasted,Texture,anodizing Black,clear Painting,Polishing
  • Size
    As Samples/drawings,customized Accepted,Customized Size
  • Mold Runner
    Hot&Cold Runner You Can Choose,Hot Runner And Code Runner
  • Mold Life
    000 To 1,500000 Shots,000 Shots,100000-1000000,50
  • Plastic Material
    Peek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
  • Place of Origin
    Dongguan, China
  • Brand Name
    MID MOULD
  • Certification
    ISO9001:2015 Certificate, export standard compliant
  • Minimum Order Quantity
    1 set
  • Price
    USD $3,000–$50,000 per set (depending on complexity)
  • Packaging Details
    Wooden case + anti-rust oil + protective film + packing list
  • Delivery Time
    25–45 working days (longer for complex tools)
  • Payment Terms
    50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
  • Supply Ability
    20–35 sets per month, depending on structure

Custom Plastic Injection Molds with Insert Technology Reliable Long Life and High Accuracy

  • Custom Plastic Injection Molds with Insert Technology Reliable Long Life and High Accuracy
Get Price Contact Now
Product Process

Insert injection molds directly integrate pre-installed metal, threaded parts, or functional components into the plastic part during the molding process, achieving both enhanced strength and functionality. This process reduces assembly steps and improves overall production efficiency.

Process Flow
  1. Mold Design: Plan insert positioning and guide structure
  2. CAE Analysis: Simulate molten plastic flow path
  3. Precision Machining: CNC + EDM to complete the cavity
  4. Assembly and Commissioning: Add cooling and insert positioners
  5. Mold Trial Inspection: Check bonding strength and dimensional accuracy
Product Specifications
Item Parameter Description
Mold Type Insert injection mold
Mold Material P20, NAK80, H13
Number of Cavities 1–16
Mold Life 800,000–1.5 million cycles
Surface Treatment Chrome plating, polishing, nitriding
Applicable Plastics PC, ABS, PP, TPU
Insert Type Nuts, steel, electronic components
Product Accuracy ±0.015mm
Cooling System Independent water cooling
Production Cycle 55–80 days
Product Advantages
  • High-strength structure, one-piece molding
  • Reduces assembly and labor costs
  • Suitable for complex part production
  • Durable mold, long life
FAQ

Q1: Does the mold support different insert combinations?

A1: Yes, we can mix metal and electronic components.

Q2: What is the mold accuracy?

A2: The tolerance can be controlled within ±0.015mm.

Q3: Is it suitable for automated production?

A3: Yes, we support robotic insert placement.

Q4: Will the insert shift?

A4: The mold is designed with precise positioning devices to prevent deviation.

Q5: What is the approximate production cycle?

A5: Generally, it takes 55–80 days, but it may take longer for complex molds.

Customized Services

We can customize the insert type, number of mold cavities, and automation interfaces to meet the customized needs of different industries.
