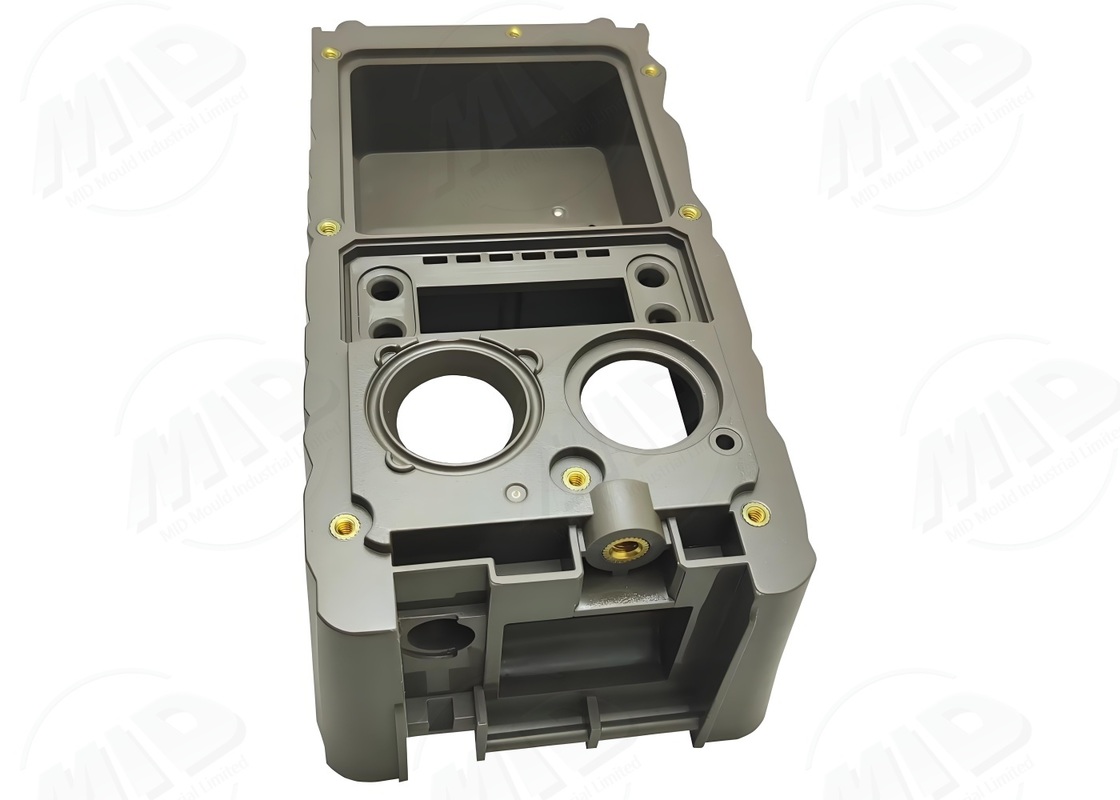

High Precision Insert Injection Molds Custom Plastic Molding Durable and Cost Effective

High Precision Insert Injection Molds Custom Plastic Molding Durable and Cost Effective

Products - Insert Molds
  • Highlight

    custom insert injection mold

    ,

    ABS PC PA66 insert mold

    ,

    high cycle insert mold

  • Shaping Mode
    Plastic Injection Mould,Plastic Injection Molding,Compression Mould
  • Material
    STEEL,ps,PP,Steel And Metal,aluminum
  • Product
    Vehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
  • Mould Life
    250000-300000shots,200~1 M Available,300,000shots,000 Times
  • Runner
    Hot Runner\ Cold Runner,cold/hot
  • Cavity
    Multi Cavity,as Per Client's Requirement
  • Product Material
    Plastic,Steel,PP,ABS,PS
  • Mold Material
    NAK80,H13,50#,P20,45#
  • Design Software
    CAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
  • Mould Material
    P20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
  • Application
    Home Appliance,Industrial,Automotive,various Range,Machine
  • Product Name
    Plastic Injection Mould,injection Machine Mold,Shanghai Factory Cheap Plastic Component Injection Mold,High Quality Virgin Raw Material Custom Plastic Injection Mold Product,Gear Parts
  • Certification
    ISO9001,FDA,ISO13485
  • Mould Base
    Non-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
  • Surface Treatment
    Sandblasted,Texture,anodizing Black,clear Painting,Polishing
  • Size
    As Samples/drawings,customized Accepted,Customized Size
  • Mold Runner
    Hot&Cold Runner You Can Choose,Hot Runner And Code Runner
  • Mold Life
    000 To 1,500000 Shots,000 Shots,100000-1000000,50
  • Plastic Material
    Peek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
  • Place of Origin
    Dongguan, China
  • Brand Name
    MID MOULD
  • Certification
    ISO9001:2015 Certificate, export standard compliant
  • Minimum Order Quantity
    1 set
  • Price
    USD $3,000–$50,000 per set (depending on complexity)
  • Packaging Details
    Wooden case + anti-rust oil + protective film + packing list
  • Delivery Time
    25–45 working days (longer for complex tools)
  • Payment Terms
    50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
  • Supply Ability
    20–35 sets per month, depending on structure

High Precision Insert Injection Molds Custom Plastic Molding Durable and Cost Effective

  • High Precision Insert Injection Molds Custom Plastic Molding Durable and Cost Effective
Get Price Contact Now
High Precision Insert Injection Molds Custom Plastic Molding Durable and Cost Effective
Product Process
Insert injection molds achieve one-step molding by directly embedding metal, ceramic, or functional components into the plastic part during the injection molding process. This process maintains the plastic part's lightweight while enhancing its wear resistance, rigidity, and functionality. It is widely used in high-end industries.
Process Flow
  • Mold Design: Determine insert position and mounting structure
  • Mold Flow Analysis: Evaluate plastic flow and wrapping performance
  • CNC and EDM Machining: Ensure insert slot accuracy
  • Mold Assembly: Insert positioning and cooling system installation
  • Mold Trial Verification: Check bonding strength and dimensional accuracy
Product Specifications
Mold Type: Insert injection mold
Mold Material: 1.2316 H13 718H
Cavities: 2–12
Mold Life: 600,000–1.2 million cycles
Surface Treatment: Polishing, Sandblasting, PVD Coating
Applicable Plastics: ABS, PC, PA66, PP
Insert Type: Nuts, Copper, Electronic Pins
Product Accuracy: ±0.02mm
Cooling System: Multi-channel water cooling design
Production Cycle: 50–70 Days
Product Advantages
  • Strong bond between plastic and insert
  • Supports complex part designs
  • Reduces secondary processing costs
  • Long mold life, suitable for mass production
FAQ
Q1: Will the insert affect plastic flow?
A1: Mold flow analysis can optimize filling and avoid defects.
Q2: Is this mold suitable for high-precision parts?
A2: Yes, with tolerances within ±0.02mm.
Q3: What is the typical mold lifespan?
A3: Typical mold lifespans are up to one million cycles.
Q4: Can insert assembly be automated?
A4: Yes, with robotic insert placement.
Q5: Is this suitable for small-batch trial production?
A5: Yes, with low-cavity mold solutions available.
Customized Services
We support customization of insert type, cavity count, mold structure, and automation interfaces to meet customers' individual needs in diverse applications.
