High Precision Insert Molds
,Industrial Multi Cavity Molds
,Multi Cavity Molds Customized
-
ProductInsert Molds
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
CavityMulti Cavity,as Per Client's Requirement
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
Product NamePlastic Injection Mould,injection Machine Mold,Shanghai Factory Cheap Plastic Component Injection Mold,High Quality Virgin Raw Material Custom Plastic Injection Mold Product,Gear Parts
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure

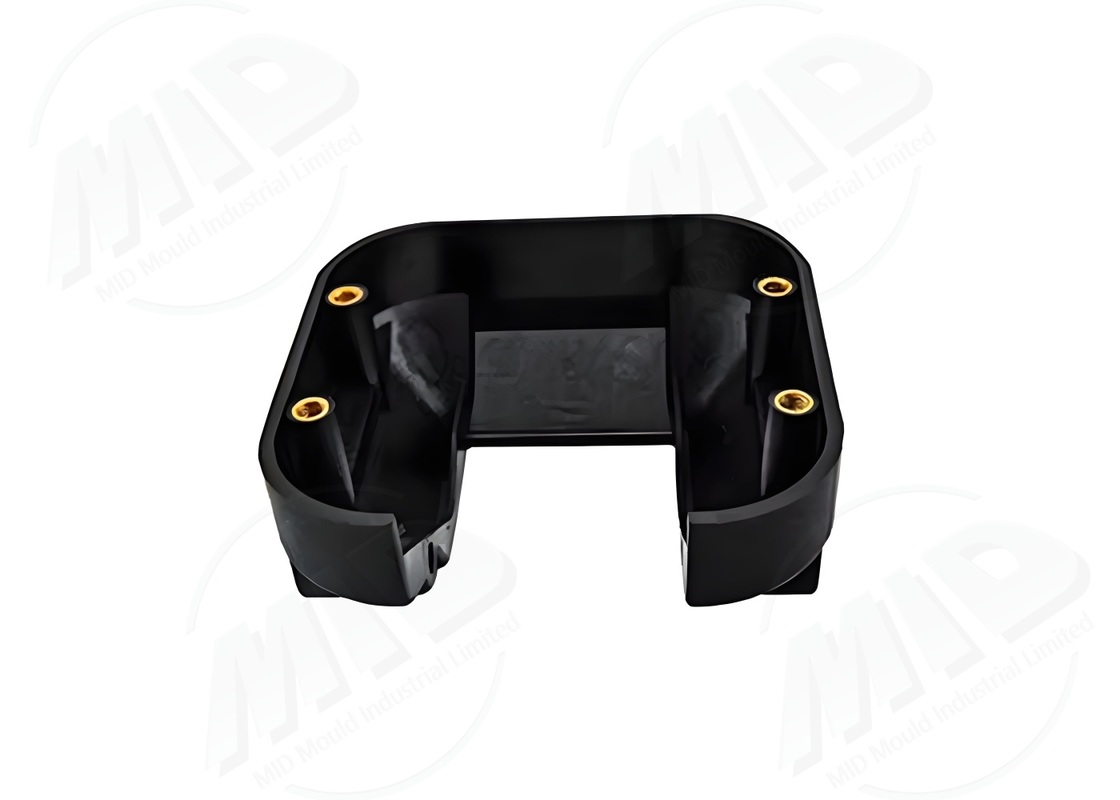

High Precision Insert Molds Industrial Multi Cavity Molds Customized
Advanced Insert Molds With Multi Cavity Design Reliable Strong Bonding And Long Mold Life
Reliable strong bonding and long mold life for precision manufacturing applications.
Product Process
Insert injection molds embed metal, threaded parts, or functional components directly into the finished product during the injection molding process. This creates a secure bond between the plastic and the insert, eliminating traditional screwing, welding, or gluing methods. This process is particularly suitable for parts requiring high strength and electrical conductivity.
Process Flow
- Mold Design: Analyze insert shape and force distribution
- Mold Flow Analysis: Optimize filling speed and temperature distribution
- CNC Machining: Achieve high-precision insert mounting grooves
- Mold Assembly: Install cooling water circuits and insert positioners
- Mold Trial Testing: Test product strength and precision
Product Specifications
| Item | Parameter | Description |
|---|---|---|
| Mold Type | Insert injection mold | |
| Mold Material | H13, S136, NAK80 | |
| Cavity | 1–10 | |
| Mold Life | 700,000–1.5 million cycles | |
| Surface Treatment | Chrome plating, polishing, nitriding | |
| Applicable Plastics | PA66, PC, ABS, TPU | |
| Insert Type | Nuts, metal inserts, pins | |
| Product Precision | ±0.015mm | |
| Cooling System | Independent water cooling | |
| Product Cycle | 55–80 days |
Product Applications
- Automotive parts (fasteners, supports)
- Industrial sensor housings
- Plastic-coated structural components for high-end home appliances
- Medical device components
Product Advantages
- Lightweight and high-strength products
- High precision ±0.015mm accuracy
- Reduces secondary processing and labor costs
- Supports complex insert molding
Frequently Asked Questions
Q1: What industries are insert molds suitable for?
A1: Automotive, medical, electronics, and home appliance industries.
Q2: Is the mold life reliable?
A2: Using high-quality steel, the mold life can exceed one million mold cycles.
Q3: Is insert assembly time-consuming?
A3: Efficiency can be significantly improved using automated robotics.
Q4: Is it suitable for complex parts?
A4: Yes, CAE simulation ensures smooth flow of complex structures.
Q5: What is the typical production cycle?
A5: Typically 55–80 days.
Customized Services
We support customization of multiple cavities, insert shape and material selection, and automated interface design to meet the needs of diverse industries.
Related Cases
Our services cover all industries and reach all parts of the world.
