Lightweight Insert Molding 600K - 1.2M Cycles Molds For Plastic And Metal

  • Lightweight Insert Molding 600K - 1.2M Cycles Molds For Plastic And Metal
Get Price Contact Now
Custom Insert Molds For Plastic And Metal 600K-1.2M Cycles
Durable High Accuracy Injection Molding Solutions
Product Process

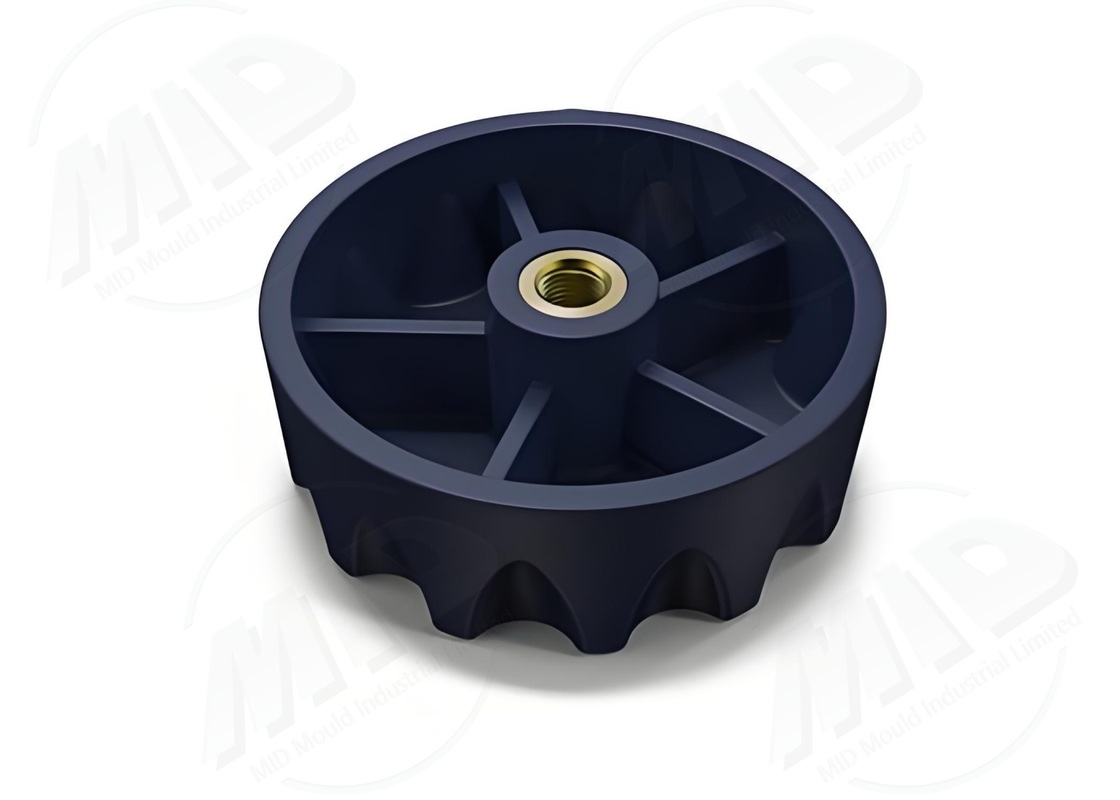

Insert injection molding involves pre-placing metal parts, threaded components, ceramic parts, or electronic elements within the mold cavity. Molten plastic is then injected to coat the insert surface, creating a single-step molding process. This technology ensures lightweight, multifunctional products while eliminating assembly steps and improving production efficiency.

Process Flow
  • Mold Design: Determine fixing method and flow channel structure based on insert type and functional requirements
  • CAD/CAE Analysis: Simulate plastic flow and wrapping effects to optimize insert force and positioning
  • Precision Machining: Use CNC and EDM to create insert slots and cavities
  • Mold Assembly: Install cooling water circuits and specialized insert positioning devices
  • Mold Trial Verification: Test bond strength, dimensional accuracy, and surface finish
Product Specifications
Item Parameter Description
Mold Type Insert Injection Mold
Mold Material H13, 718H, S136
Cavities 1–12
Mold Life 600,000–1.2 Million Cycles
Surface Treatment Polishing, Chrome Plating, Nitriding
Applicable Plastics ABS, PA66, PC, PP
Insert Type Metal, Threaded, Electronic Components
Product Accuracy ±0.015mm
Cooling System Independent, High-Efficiency Water Cooling
Production Cycle 45–70 days
Product Applications
  • Automotive parts (plastic-coated nuts and structural components)
  • Industrial equipment (wear-resistant or conductive elements)
  • Medical devices (components with metal supports or functional inserts)
  • Electronic products (plugs, sockets, terminal housings)
Product Advantages
  • One-shot molding with strong plastic-to-insert bonding
  • Eliminates secondary assembly, reducing production costs
  • Enables multifunctional integration (lightweight, conductive, wear-resistant)
  • High precision suitable for mass production
Frequently Asked Questions
Q1: Will the insert shift during the injection molding process?

A1: The mold features a dedicated positioning mechanism combined with CAE analysis to ensure insert stability.

Q2: Is the insert mold suitable for automated production?

A2: Yes, it's commonly used with robotic insertion systems for improved efficiency.

Q3: Are there any restrictions on the type of inserts?

A3: It accommodates various inserts including metals, ceramics, and sensors for high flexibility.

Q4: What is the typical lifespan of this type of mold?

A4: Made of high-quality steel, the mold typically lasts up to one million cycles.

Q5: Is mold maintenance complicated?

A5: Routine maintenance only requires cleaning cooling water lines and inspecting positioning mechanisms.

Q6: Can it be used for small-batch trial production?

A6: Yes, we can design molds with multiple or fewer cavities based on customer needs.

Customized Services
  • Custom insert specifications (nuts, conductive parts, ceramic parts)
  • Flexible mold cavity configuration (1–16 cavities available)
  • Optimized cooling water line design
  • Custom interface for automated insert manipulators
  • Custom surface treatment options
