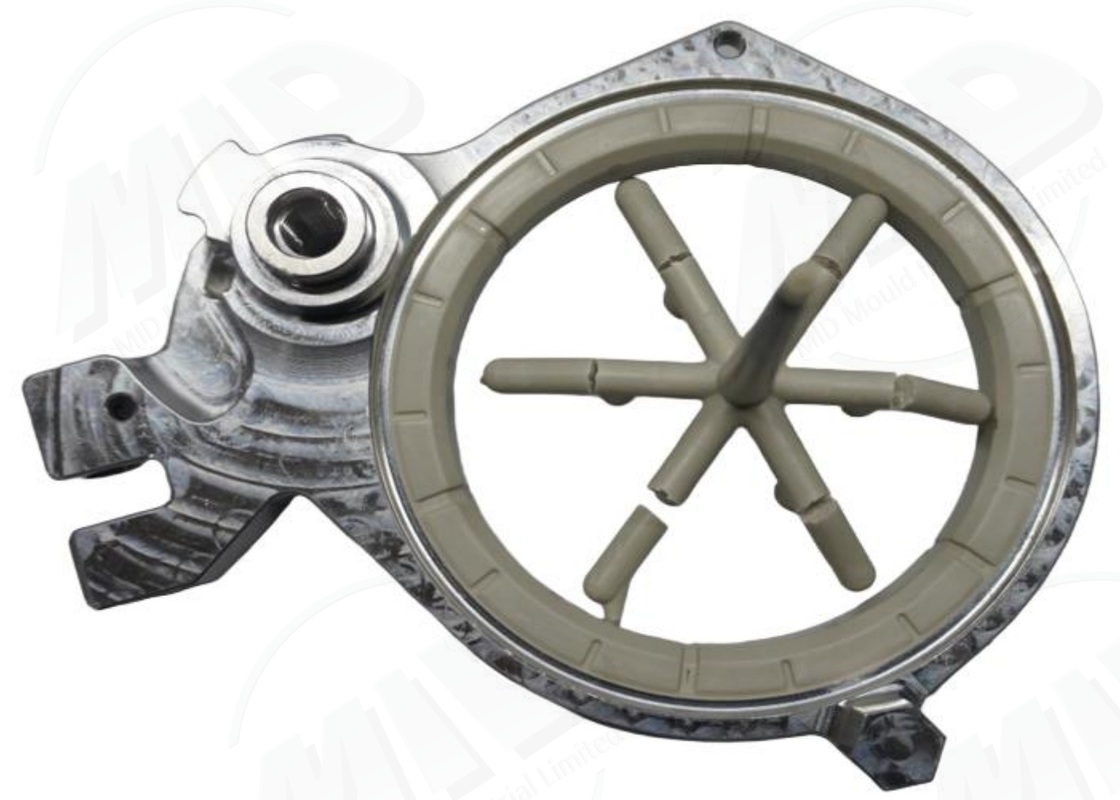

Insert Molds Plastic Injection with Metal Inserts for Lightweight Components 600K Cycles

Insert Molds Plastic Injection with Metal Inserts for Lightweight Components 600K Cycles

Products - Insert Molds
  • Highlight

    insert molds with metal inserts

    ,

    plastic injection molds for lightweight components

    ,

    high cycle insert molds 600K cycles

  • Shaping Mode
    Plastic Injection Mould,Plastic Injection Molding,Compression Mould
  • Material
    STEEL,ps,PP,Steel And Metal,aluminum
  • Product
    Vehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
  • Mould Life
    250000-300000shots,200~1 M Available,300,000shots,000 Times
  • Runner
    Hot Runner\ Cold Runner,cold/hot
  • Cavity
    Multi Cavity,as Per Client's Requirement
  • Product Material
    Plastic,Steel,PP,ABS,PS
  • Mold Material
    NAK80,H13,50#,P20,45#
  • Design Software
    CAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
  • Mould Material
    P20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
  • Application
    Home Appliance,Industrial,Automotive,various Range,Machine
  • Product Name
    Plastic Injection Mould,injection Machine Mold,Shanghai Factory Cheap Plastic Component Injection Mold,High Quality Virgin Raw Material Custom Plastic Injection Mold Product,Gear Parts
  • Certification
    ISO9001,FDA,ISO13485
  • Mould Base
    Non-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
  • Surface Treatment
    Sandblasted,Texture,anodizing Black,clear Painting,Polishing
  • Size
    As Samples/drawings,customized Accepted,Customized Size
  • Mold Runner
    Hot&Cold Runner You Can Choose,Hot Runner And Code Runner
  • Mold Life
    000 To 1,500000 Shots,000 Shots,100000-1000000,50
  • Plastic Material
    Peek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
  • Place of Origin
    Dongguan, China
  • Brand Name
    MID MOULD
  • Certification
    ISO9001:2015 Certificate, export standard compliant
  • Minimum Order Quantity
    1 set
  • Price
    USD $3,000–$50,000 per set (depending on complexity)
  • Packaging Details
    Wooden case + anti-rust oil + protective film + packing list
  • Delivery Time
    25–45 working days (longer for complex tools)
  • Payment Terms
    50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
  • Supply Ability
    20–35 sets per month, depending on structure

Insert Molds Plastic Injection with Metal Inserts for Lightweight Components 600K Cycles

  • Insert Molds Plastic Injection with Metal Inserts for Lightweight Components 600K Cycles
Get Price Contact Now
Insert Molds Lightweight Plastic Injection with Metal Inserts for Strong and Durable Small Components
Product Process
Insert injection molding embeds lightweight metals or special composite materials into plastic parts, resulting in lightweight yet strong products. These molds are widely used in industries with stringent requirements for weight and durability.
Process Flow
  • Analyze product lightweighting and strength requirements
  • CAD design of the insert and part interface
  • CNC precision machining of the cavity
  • Mold assembly and water line adjustment
  • Mold trial testing to check weight and strength balance
Product Specifications
Item Parameter Description
Mold Type Insert injection mold
Mold Material H13 718H
Number of cavities 1–12
Mold Life 600,000–1.2 million cycles
Surface Treatment Mirror polish, nitriding
Applicable Materials ABS, PA, PC
Insert Type Aluminum, Composite
Product Accuracy ±0.02mm
Cooling System Independent recirculation cooling
Production Cycle 45–70 days
Product Applications
  • UAV parts
  • Lightweight automotive components
  • Portable electronic device housings
Product Advantages
  • Lightweight design reduces overall weight
  • Strength and stability
  • Meets the needs of high-end industries
FAQ
Q1: Can inserts reduce weight?
A1: Using aluminum or composite materials can significantly reduce weight.
Q2: Is the mold suitable for high-precision parts?
A2: Yes. Tolerances can be controlled within ±0.02mm.
Q3: What is its typical service life?
A3: Over a million molds.
Q4: Is it suitable for mass production?
A4: Absolutely suitable. High degree of automation.
Customized Service
We can customize inserts and mold structures of various materials to meet customer lightweighting requirements.
