Highlight
Smart Home insert molds plastic injection
,Insert molds with 1-16 cavities
,High-cycle insert molds 700K cycles
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
ProductVehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
CavityMulti Cavity,as Per Client's Requirement
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
Product NamePlastic Injection Mould,injection Machine Mold,Shanghai Factory Cheap Plastic Component Injection Mold,High Quality Virgin Raw Material Custom Plastic Injection Mold Product,Gear Parts
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure

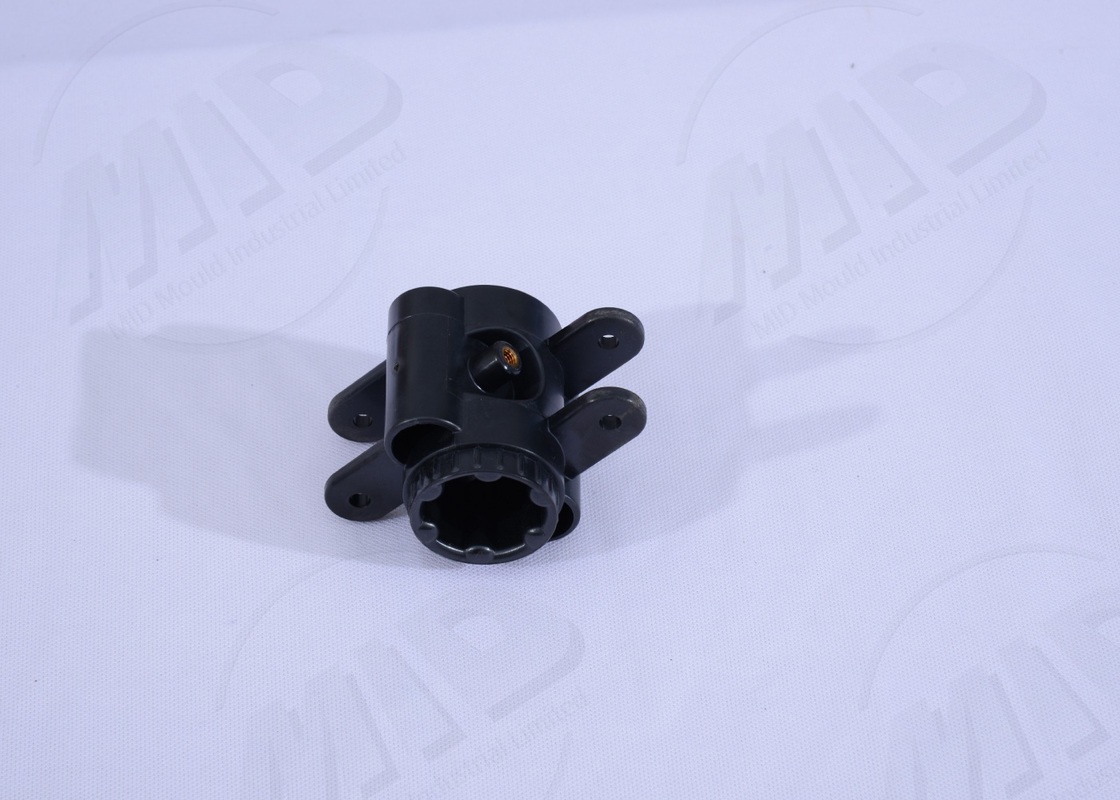

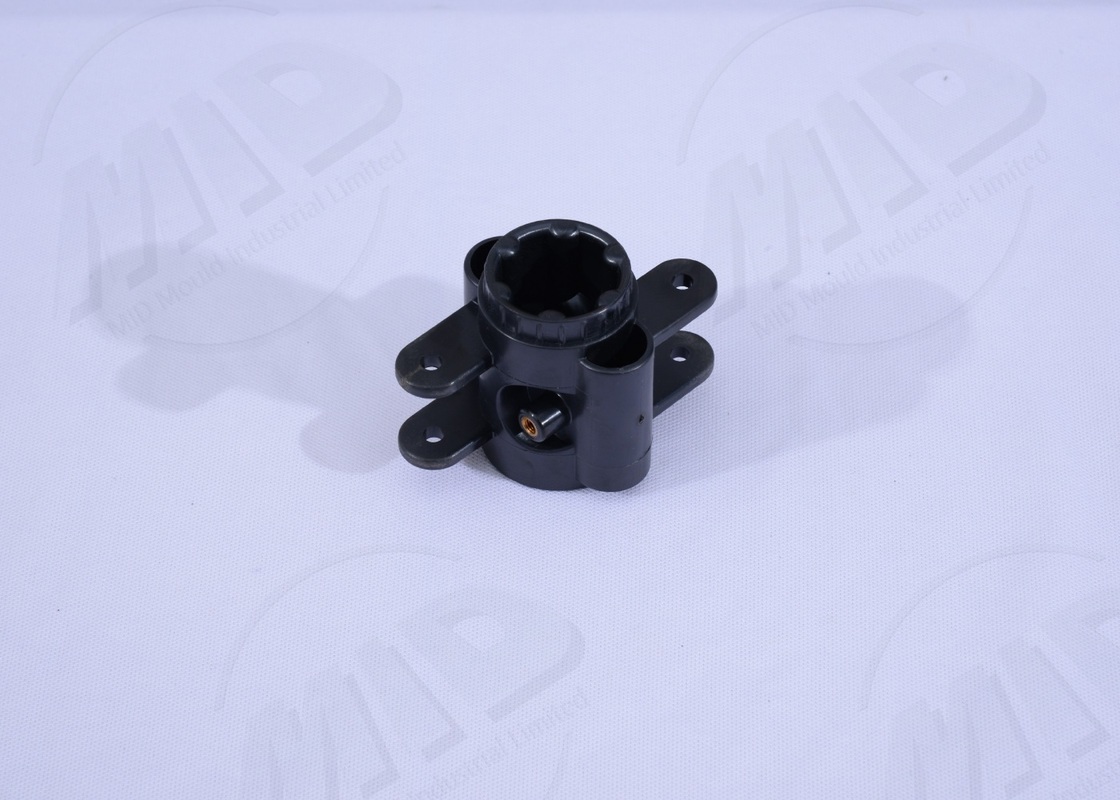

Smart Home Devices with Embedded Metal and Sensor Holders
Insert Molds Plastic Injection for Smart Home Devices with Embedded Metal and Sensor Holders
Product Process
In the manufacturing of smart home components, insert injection molds integrate sensor brackets or metal fixtures to achieve integrated functionality and appearance.
Process Flow
- Analyze product electronic function requirements
- CAD design of insert mating area
- CNC machining and positioning device fabrication
- Assemble mold cooling system
- Test mold to inspect function and appearance
Product Specifications
| Item | Parameter | Description |
|---|---|---|
| Mold Type | Insert injection mold | |
| Mold Material | S136 718H | |
| Number of cavities | 1–16 cavities | |
| Mold Life | 700,000–1.2 million cycles | |
| Surface Treatment | Polishing, Chrome plating | |
| Applicable Materials | ABS, PC, PA | |
| Insert Type | Sensor bracket, Sheet metal | |
| Product Accuracy | ±0.015mm | |
| Cooling System | Multi-circuit cooling | |
| Production Cycle | 55–75 days |
Product Applications
- Smart door lock housing
- Home appliance sensor components
- Smart socket module
Product Advantages
- Integrated insert and plastic part
- High precision, suitable for smart products
- Improved appearance and functionality
FAQ
Q1: Suitable for transparent parts?
A1: Yes, mirror polishing is possible.
Q2: Is the mold suitable for automation?
A2: Yes, can be integrated with a robotic arm.
Q3: Is it suitable for mass production?
A3: Yes, medium to large batches are most effective.
Q4: Can it meet home appliance standards?
A4: Yes, it can be produced according to international standards.
Customized Service
We can design custom mold structures for smart home customers to meet the diverse functional requirements of their products.
