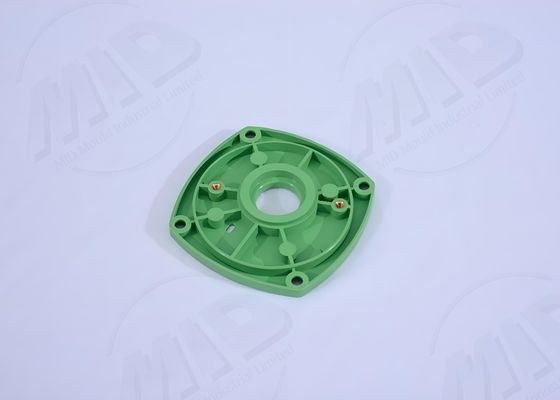

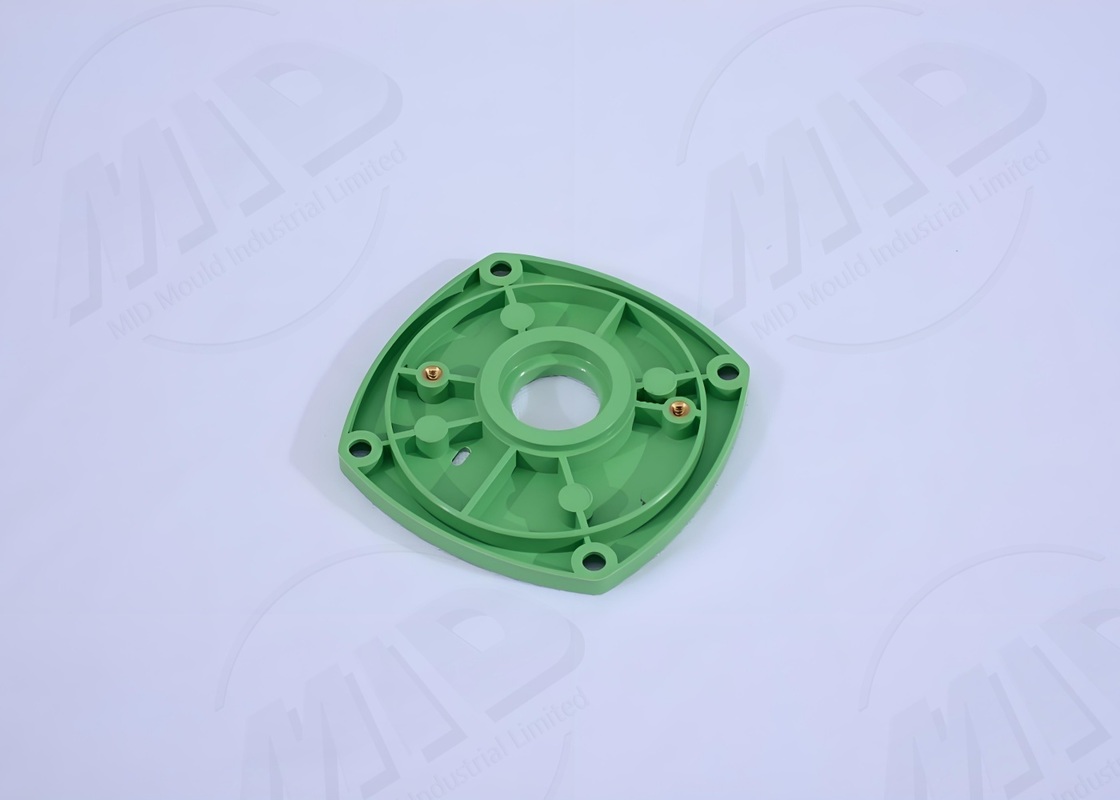

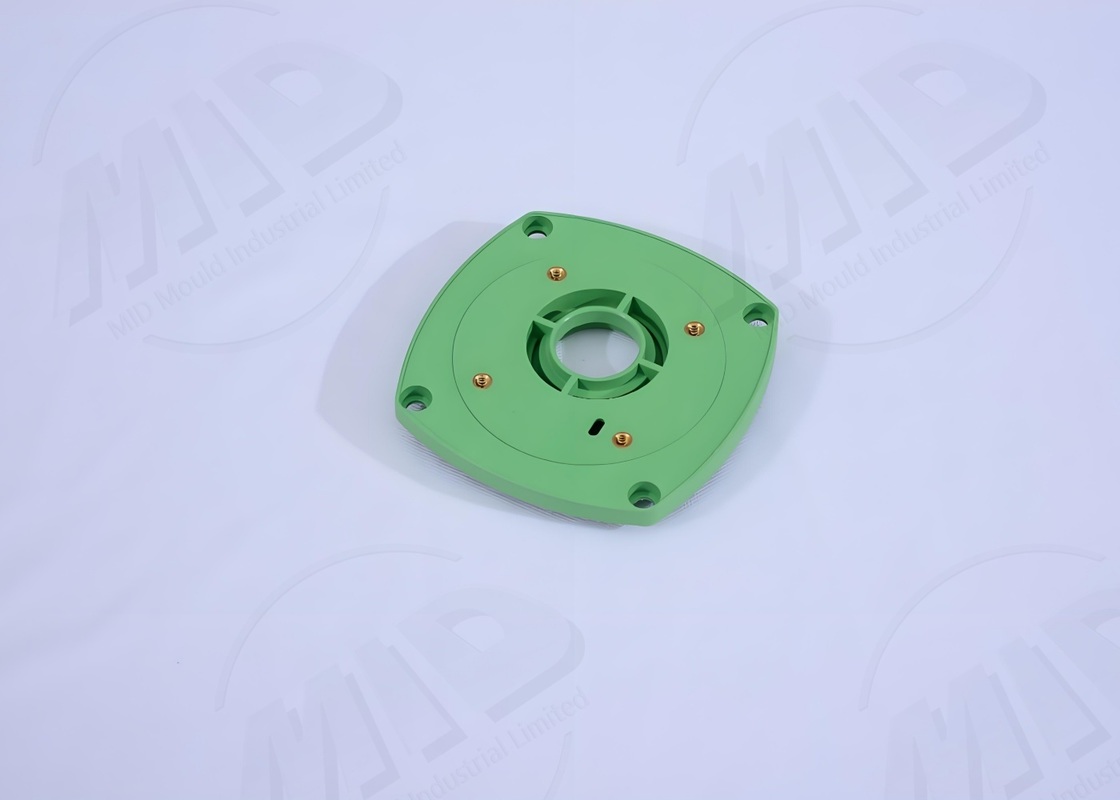

High Strength Plastic Injection Molding Tooling Customized Industrial Mould With Metal Inserts
-
Highlight
High Strength Plastic Injection Molding Tooling
,Customized Industrial Mould
,Industrial Mould High Strength
-
Product NamePlastic Injection Molding Tooling
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
ProductVehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
CavityMulti Cavity,as Per Client's Requirement
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
High Strength Plastic Injection Molding Tooling Customized Industrial Mould With Metal Inserts
High Strength Plastic Injection Mold With Metal Inserts For Industrial Parts
Impact Resistant Industrial Parts Manufacturing Solution
Our insert injection molding process embeds high-strength metal components within plastic parts, significantly enhancing impact and fatigue resistance for demanding industrial applications.
Manufacturing Process
- Product stress point and structural analysis
- CAD design of joint surfaces
- CNC machining of insert slots
- Mold assembly and cooling channel optimization
- Test molds to verify impact strength
Technical Specifications
| Parameter | Specification |
|---|---|
| Mold Type | Impact-Resistant Insert Mold |
| Mold Material | H13 P20 |
| Number of Cavities | 1–10 |
| Mold Life | 600,000–1.2 Million Molds |
| Surface Treatment | Polishing, Nitriding |
| Applicable Materials | ABS, PC, PP |
| Insert Type | High-Strength Steel |
| Product Accuracy | ±0.02mm |
| Cooling System | Independent Cooling Circuit |
| Production Cycle | 50–70 Days |
Industrial Applications
- Industrial tool housings
- Impact-resistant electrical components
- Automotive safety parts
Key Advantages
- Superior strength and impact resistance
- Eliminates additional assembly steps
- Extended mold life with lower production costs
Frequently Asked Questions
Does the mold support engineering plastics?
Yes, materials such as PC and PA are supported.
Can inserts replace welded parts?
Yes, single-piece molding provides stronger stability.
Is it suitable for outdoor use?
Yes, with stable and weather-resistant properties.
What is the product precision?
Accuracy ±0.02mm.
Customization Services
Insert shapes and mold structures can be precisely designed to meet specific impact requirements for your industrial applications.
