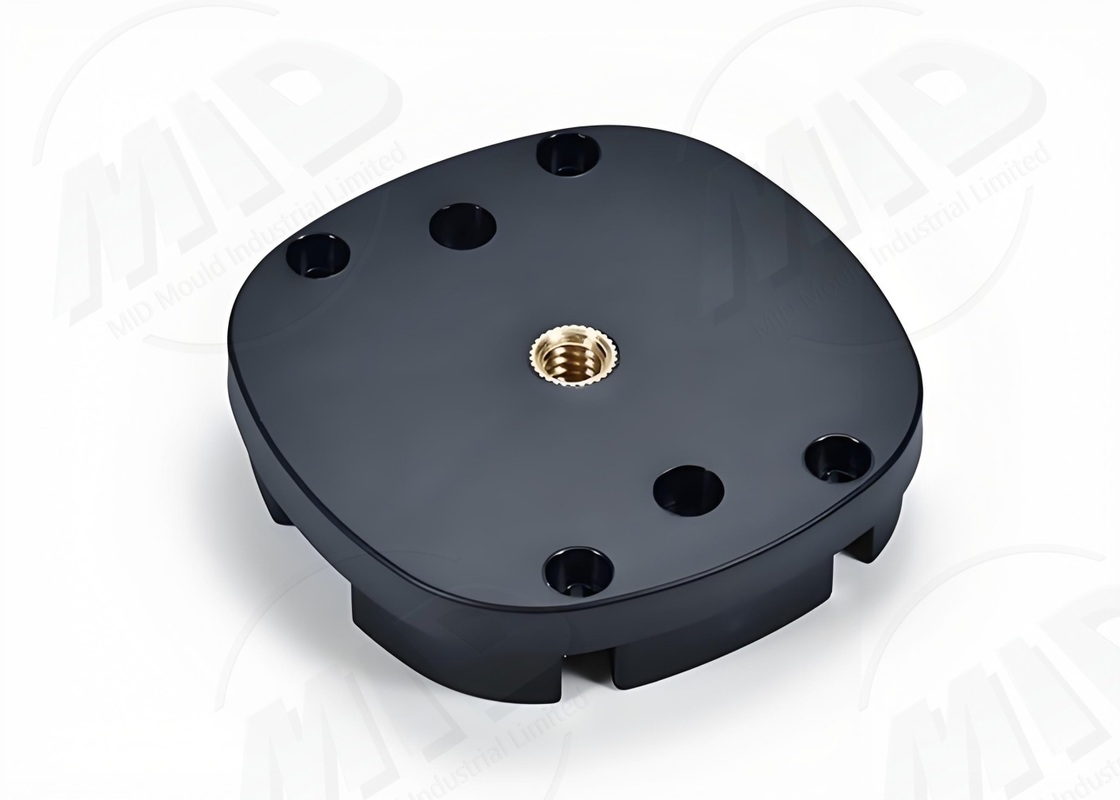

Insert Molds Heat Resistant Plastic Injection with Metal Inserts for Durable High Temperature Components

Insert Molds Heat Resistant Plastic Injection with Metal Inserts for Durable High Temperature Components

Products - Insert Molds
  • Highlight

    heat resistant plastic injection mold

    ,

    metal insert injection mold

    ,

    high cycle injection mold with warranty

  • Shaping Mode
    Plastic Injection Mould,Plastic Injection Molding,Compression Mould
  • Material
    STEEL,ps,PP,Steel And Metal,aluminum
  • Product
    Vehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
  • Mould Life
    250000-300000shots,200~1 M Available,300,000shots,000 Times
  • Runner
    Hot Runner\ Cold Runner,cold/hot
  • Cavity
    Multi Cavity,as Per Client's Requirement
  • Product Material
    Plastic,Steel,PP,ABS,PS
  • Mold Material
    NAK80,H13,50#,P20,45#
  • Design Software
    CAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
  • Mould Material
    P20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
  • Application
    Home Appliance,Industrial,Automotive,various Range,Machine
  • Product Name
    Plastic Injection Mould,injection Machine Mold,Shanghai Factory Cheap Plastic Component Injection Mold,High Quality Virgin Raw Material Custom Plastic Injection Mold Product,Gear Parts
  • Certification
    ISO9001,FDA,ISO13485
  • Mould Base
    Non-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
  • Surface Treatment
    Sandblasted,Texture,anodizing Black,clear Painting,Polishing
  • Size
    As Samples/drawings,customized Accepted,Customized Size
  • Mold Runner
    Hot&Cold Runner You Can Choose,Hot Runner And Code Runner
  • Mold Life
    000 To 1,500000 Shots,000 Shots,100000-1000000,50
  • Plastic Material
    Peek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
  • Place of Origin
    Dongguan, China
  • Brand Name
    MID MOULD
  • Certification
    ISO9001:2015 Certificate, export standard compliant
  • Minimum Order Quantity
    1 set
  • Price
    USD $3,000–$50,000 per set (depending on complexity)
  • Packaging Details
    Wooden case + anti-rust oil + protective film + packing list
  • Delivery Time
    25–45 working days (longer for complex tools)
  • Payment Terms
    50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
  • Supply Ability
    20–35 sets per month, depending on structure

Insert Molds Heat Resistant Plastic Injection with Metal Inserts for Durable High Temperature Components

  • Insert Molds Heat Resistant Plastic Injection with Metal Inserts for Durable High Temperature Components
Get Price Contact Now
Insert Molds Heat Resistant Plastic Injection with Metal Inserts for Durable High Temperature Components
Product Process
Insert injection molds are specifically designed for parts operating in high-temperature environments. The integration of metal inserts significantly enhances heat resistance and structural strength, ensuring long-term stable performance.
Process Flow
  • High-temperature operating environment analysis
  • CAD/CAE thermal flow simulation
  • CNC machining of heat-resistant mold cavities
  • Mold assembly and cooling piping installation
  • Mold trial to confirm high-temperature performance
Product Specifications
Item Parameter Description
Mold Type: High-temperature insert mold
Mold Material: H13 S136
Number of cavities: 1–12 cavities
Mold Life: 600,000–1.2 million cycles
Surface Treatment: Chrome plating, polishing
Applicable Materials: PPS, PA66, PC
Insert Type: High-temperature resistant metal parts
Product Accuracy: ±0.015mm
Cooling System: Multi-circuit cooling
Production Cycle: 55–75 days
Product Applications
  • Automotive engine components
  • Industrial electrical parts
  • Water heater accessories
Product Advantages
  • Superior high-temperature resistance
  • Enhanced strength with stable bonding
  • Designed for complex operating conditions
Frequently Asked Questions
Q1: Is the mold suitable for high-temperature resistant plastics?
A1: Yes, commonly used with materials like PPS and PA66.
Q2: Will the insert deform due to heat?
A2: Special alloys are utilized to prevent thermal deformation.
Q3: Is it suitable for mass production?
A3: Absolutely designed for high-volume production with reliable durability.
Q4: What is the mold lifespan?
A4: Engineered for up to one million mold cycles.
Customized Service
We offer tailored mold and insert solutions to meet your specific high-temperature application requirements.
