High Precision Insert Molds Plastic Injection with Nuts and Screws 500K Cycles
-
Highlight
high precision insert molds
,plastic injection molds with nuts
,insert molds 500K cycles
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
ProductVehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
CavityMulti Cavity,as Per Client's Requirement
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
Product NamePlastic Injection Mould,injection Machine Mold,Shanghai Factory Cheap Plastic Component Injection Mold,High Quality Virgin Raw Material Custom Plastic Injection Mold Product,Gear Parts
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure

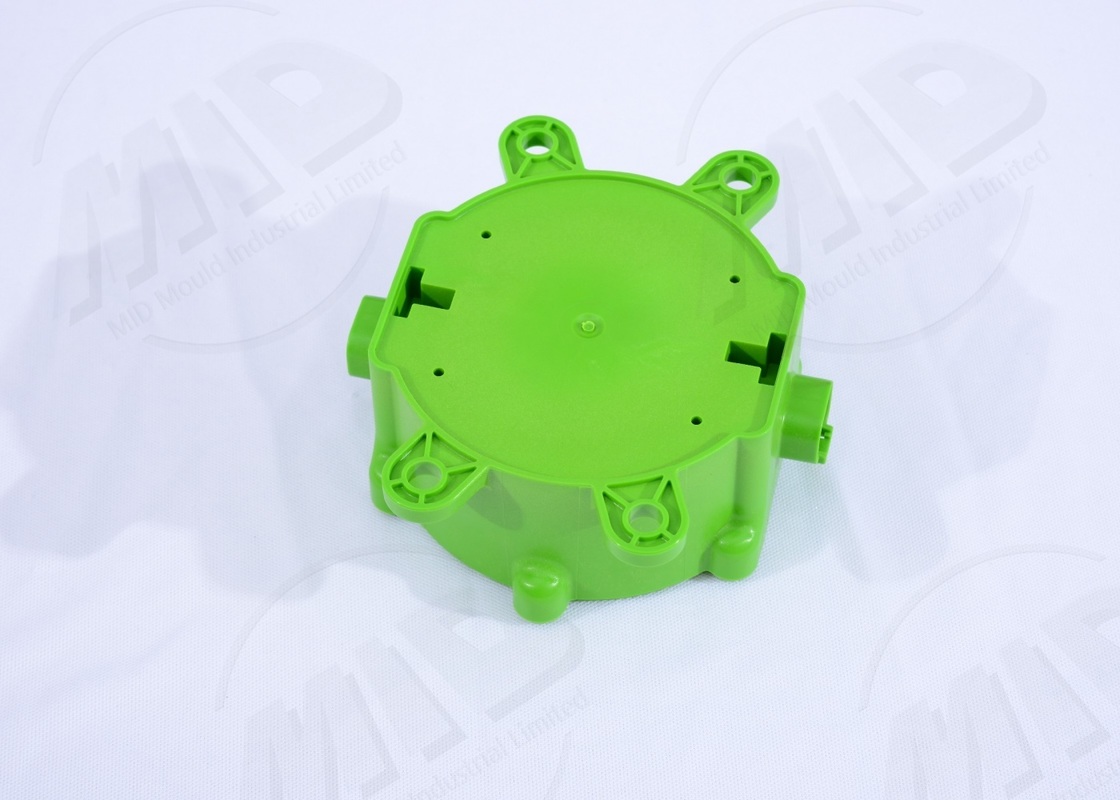

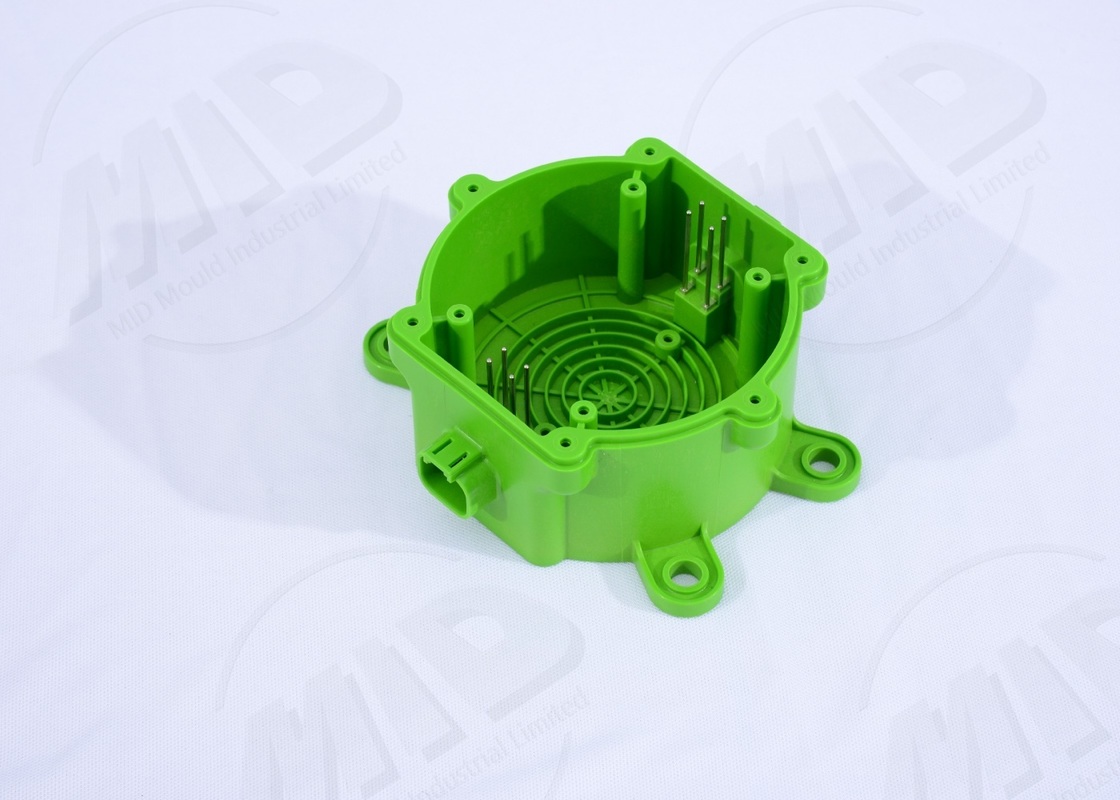

High Precision Insert Molds Plastic Injection with Nuts and Screws 500K Cycles
Insert Molds Plastic Injection with Nuts and Screws High Precision and Cost Effective Small Parts Production
Product Description
Insert injection molds pre-place nuts, screws, or small hardware components in the mold cavity, forming them integrally with the molten plastic during the injection molding process. They are widely used for products requiring fastening and installation.
Process Flow
- Product and insert functional design
- CAD/CAE analysis of flow channels and stress points
- CNC precision machining and slot fabrication
- Mold assembly and cooling design
- Trial mold verification for assembly and accuracy
Product Specifications
| Item | Parameter | Description |
|---|---|---|
| Mold Type | Injection mold for inserts | |
| Mold Material | P20 718H | |
| Number of cavities | 1–16 | |
| Mold life | 500,000–800,000 cycles | |
| Surface treatment | Polishing, nitriding | |
| Applicable materials | ABS, PA, PP | |
| Insert Type | Nuts, Screws, Small hardware | |
| Product accuracy | ±0.02mm | |
| Cooling System | Independent cooling water circuit | |
| Production cycle | 40–60 days |
Product Applications
- Consumer electronics fasteners
- Household appliance mounting brackets
- Toy structural components
Product Advantages
- Strong, non-loosening connection
- High production efficiency
- Reduces post-assembly steps
FAQ
Q1: Does it support automatic insert loading?
A1: Yes, with robotic arm support.
Q2: Are there any insert size requirements?
A2: Customizable based on product precision.
Q3: Is this suitable for small batches?
A3: Suitable for small to medium batch production.
Q4: Is the mold easy to maintain?
A4: Reasonable structure and easy maintenance.
Customized Service
We can customize the position of the nut and screw inserts to achieve integrated production.
Related Cases
Our services cover all industries and reach all parts of the world.
