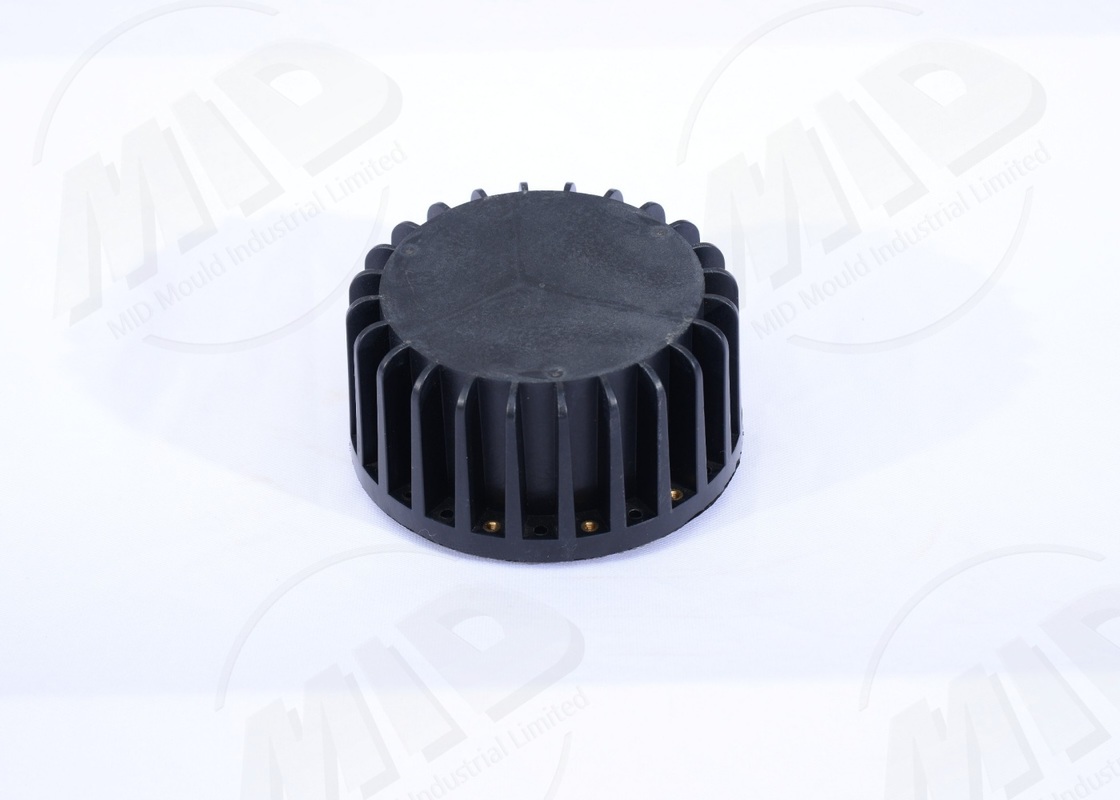

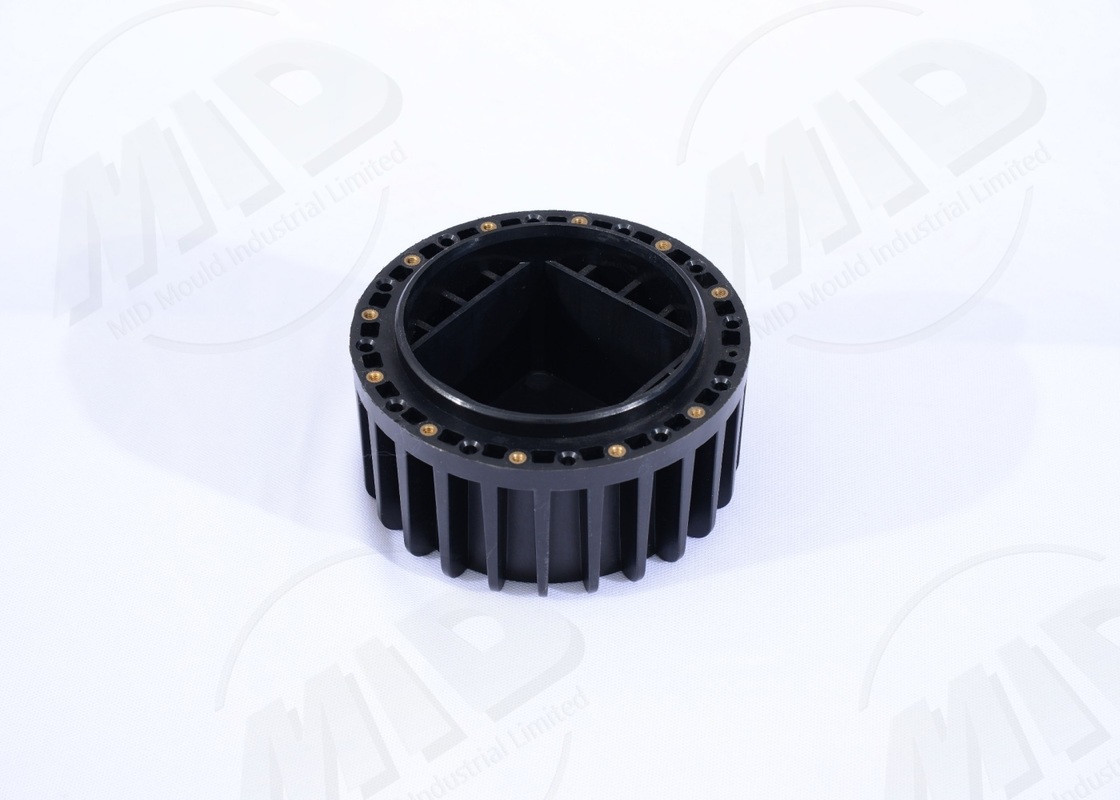

Heat Resistant Automotive Plastic Mould Durable Lightweight Car Parts Mould With Metal Inserts
-
Highlight
Heat Resistant Automotive Plastic Mould
,Durable Car Parts Mould
,Lightweight Car Parts Mould
-
Product NameAutomotive Plastic Mould
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
ProductVehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
CavityMulti Cavity,as Per Client's Requirement
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
Heat Resistant Automotive Plastic Mould Durable Lightweight Car Parts Mould With Metal Inserts
Insert Molds Automotive Plastic Injection With Metal Inserts For Durable Lightweight Car Parts
Product Technology
Insert injection molding is widely used in the automotive industry to form metal and plastic in a single step, ensuring wear resistance, strength, and lightweight components.
Process Flow
- Analyze the stress requirements of automotive parts
- CAD design of the insert interface
- CNC machining of the mold cavity
- Assembly of positioning devices and cooling channels
- Test molds to verify durability
Product Specifications
| Item | Parameter Description |
|---|---|
| Mold Type | Insert injection mold |
| Mold Material | H13 S136 |
| Number of cavities | 1–12 |
| Mold Life | Over 800,000 cycles |
| Surface Treatment | Nitriding, Polishing |
| Applicable Materials | PA, ABS, PBT |
| Insert Type | Metal, Engineering Plastics |
| Product Accuracy | ±0.02mm |
| Cooling System | High-efficiency circulating cooling |
| Production Cycle | 55–75 days |
Product Applications
- Automotive interior parts
- Functional brackets and nut inserts
- Automotive electrical components
Product Advantages
- Strength and lightweight construction
- Wear-resistant and heat-resistant, excellent performance
- Meets all automotive industry standards
Frequently Asked Questions
Q1: What automotive parts are insert molds suitable for?
A1: Socket brackets, electrical connectors, interior parts
Q2: Does it meet high-temperature resistance requirements?
A2: Yes. Engineering plastics can be used.
Q3: Does the mold lifespan meet the requirements of the automotive industry?
A3: Yes. Up to one million molds can be produced.
Q4: Does it support mass production?
A4: Yes. Automated production is highly efficient.
Customized Services
We can customize wear-resistant, high-strength, insert injection molds for the automotive industry.
