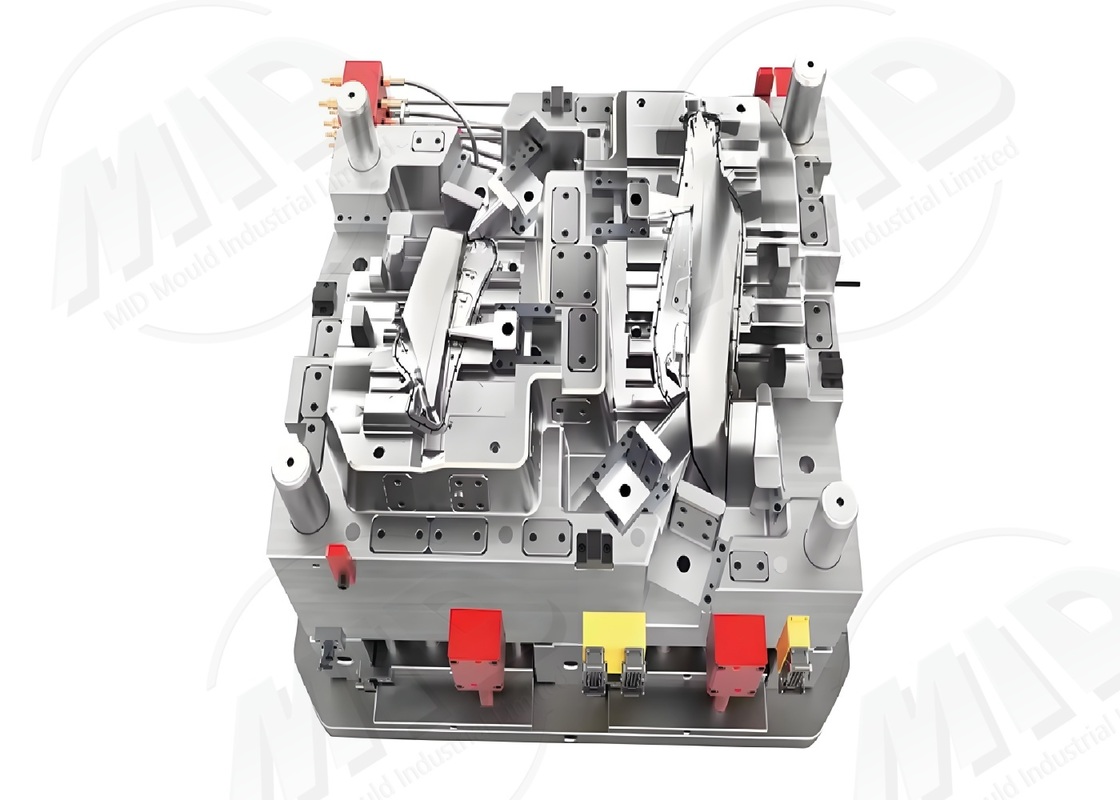

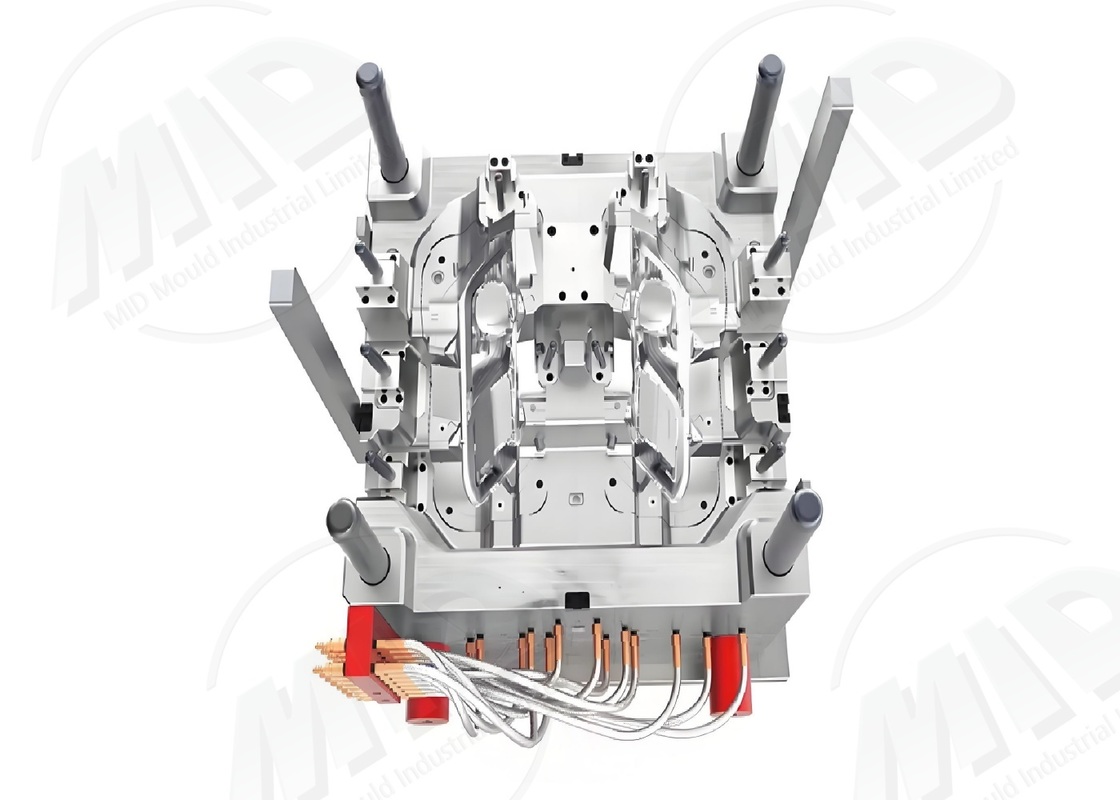

Customized Precision Plastic Molds High Accuracy Automotive Plastic Molds For Car Components
-
Highlight
Customized Precision Plastic Molds
,High Accuracy Automotive Plastic Molds
,Automotive Plastic Molds Customized
-
ProductPrecision Plastic Molds
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
CavityMulti Cavity,as Per Client's Requirement
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
Customized Precision Plastic Molds High Accuracy Automotive Plastic Molds For Car Components
Automotive Precision Molds High Accuracy Injection Molding Tools For Car Components
Product Technology
Our automotive precision molds utilize high-strength mold steel and five-axis machining technology to ensure the stability and precision of structural and functional components under complex working conditions. Our manufacturing process strictly adheres to the IATF 16949 automotive quality system, ensuring the molds meet the consistency and durability required for automotive parts.
Process Flow
- Component Requirements Analysis and Engineering Standard Confirmation
- CAD Design and CAE Strength Simulation
- CNC Precision Machining and EDM Micromachining
- Mold Assembly and Hot Runner System Installation
- Mold Trial and Performance Verification
Product Specifications
| Item | Parameter Description |
|---|---|
| Mold Type | Precision injection mold for the automotive industry |
| Mold Material | H13, 718H, S136 |
| Cavity Count | 1–16 |
| Mold Life | 800,000–1.5 Million Molds |
| Part Accuracy | ±0.015mm |
| Surface Treatment | Chrome Plating, Polishing, Nitriding |
| Applicable Materials | ABS, PA66, GF, PC, PBT |
| Cooling System | High-efficiency water and oil cooling combination |
| Hot Runner System | Configurable with multi-point needle valve hot runners |
| Product Cycle | 55–80 Days |
Product Applications
- Automotive Instrument Panel Housing
- Interior Function Buttons and Trim Parts
- Precision Clips and Structural Parts
- Lighting and Electrical Components
Product Advantages
- Meets IATF 16949 automotive industry standards
- ±0.015mm High precision ensures part consistency
- Hot runner systems improve production efficiency and reduce scrap
- Wear-resistant steel ensures a mold life of up to one million cycles
- Withstands thermal loads and mechanical strength under complex operating conditions
FAQ
Q1: Does the mold meet automotive quality certifications?
A1: Yes. Mold design and manufacturing adhere to the IATF 16949 standard.
Q2: Does it support engineering plastics with glass fiber?
A2: Yes. Common automotive materials such as ABS, PA66, and GF can be processed.
Q3: What is the typical mold life?
A3: Over one million cycles, suitable for long-term mass production.
Q4: Can the mold be configured with a hot runner?
A4: Supports multi-valve hot runners, improving product quality and efficiency.
Q5: Is fast delivery possible?
A5: Typical lead time: 55–80 days. Expedited delivery available.
Personalized Customization Services
- Customized cavity designs tailored to automotive part precision requirements
- Hot runner systems and automated demolding solutions available
- Special treatments such as surface polishing and chrome plating available
- Customized high-strength cooling circuits to meet the production needs of complex structural parts
