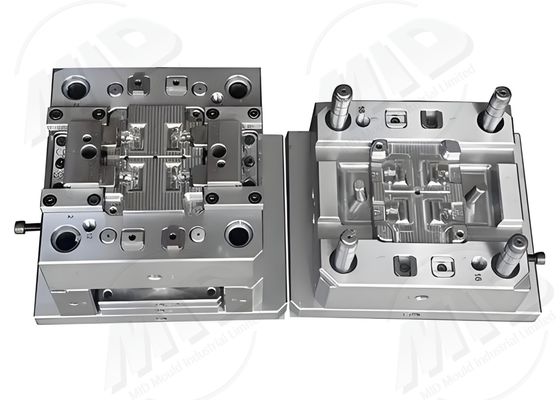

H13 Steel Injection Plastic Molds 1 - 32 Cavity Precision Injection Mold Tolerance 0.01mm Accuracy
-
Highlight
H13 Steel Injection Plastic Molds
,1 Cavity Precision Injection Mold
,32 Cavity Precision Injection Mold
-
ProductInjection Plastic Molds
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
CavityMulti Cavity,as Per Client's Requirement
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
H13 Steel Injection Plastic Molds 1 - 32 Cavity Precision Injection Mold Tolerance 0.01mm Accuracy
Precision Plastic Injection Mold 1-32 Cavity Tolerance 0.01mm Accuracy
Product Technology
These molds utilize internationally standardized mold steel and high-precision machining techniques to ensure that every injection molded product meets stringent tolerances and maintains a consistent appearance. Advanced mold flow analysis ensures uniform melt flow, effectively minimizing shrinkage and warpage.
Process Flow
- Customer Needs Confirmation and Product Analysis
- 3D Modeling and Mold Flow Optimization
- Precision CNC Machining and EDM
- Mold Assembly and Cooling Circuit Design
- Mold Trial Testing and Inspection Report
Product Specifications
| Item | Parameter | Description |
|---|---|---|
| Mold Type | Precision Injection Mold | |
| Mold Material | H13 / 1.2344 / S136 | |
| Cavity | 1–32 | |
| Mold Life | Over 1 Million Molding Cycles | |
| Part Accuracy | ±0.01–0.015mm | |
| Surface Treatment | Mirror Polishing / Nitriding / PVD | |
| Applicable Materials | ABS / PC / POM / PPS | |
| Cooling System | Independent Cooling Circuit | |
| Heat Treatment | Vacuum Quenching / Nitriding | |
| Production Cycle | 45–70 Days |
Product Applications
- High-Precision Plastic Parts
- Appearance and Functional Parts
- Mass Production and Long-Term Use
Product Advantages
- High Accuracy ±0.01mm
- Mold Life Over 1 Million Molding Cycles
- Mold Flow Analysis Ensures Quality
- Efficient Cooling Increase Production Capacity
FAQ
Q1: Can the mold be multi-cavity?
A1: Available with 1–32 cavities to meet different production requirements.
Q2: What is the precision controllable?
A2: ±0.01–0.015mm.
Q3: Is it suitable for long-term mass production?
A3: Yes, with a service life exceeding one million mold cycles.
Q4: What is the production cycle?
A4: Typically 45–70 days, with expedited processing available.
Q5: Is mold inspection provided?
A5: We provide trial molds and a full inspection report.
Customized Services
We support customization of the number of cavities, cooling methods, and surface treatments to meet diverse product requirements.
Related Cases
Our services cover all industries and reach all parts of the world.
