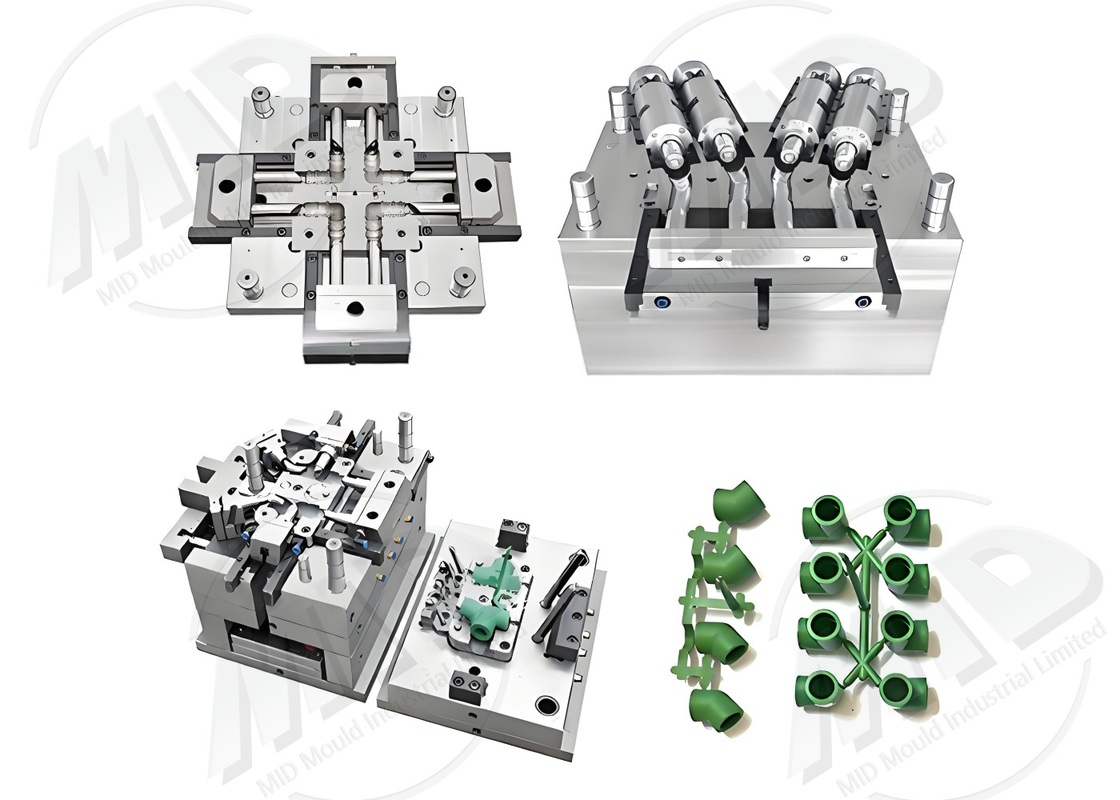

1M Shots Life Precision Injection Molds 1 - 20 Cavity Moulds For Plastic Injection
-
Highlight
1M Shots Life Precision Injection Molds
,1 Cavity Moulds For Plastic Injection
,20 Cavity Moulds For Plastic Injection
-
ProductPrecision Injection Molds
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
CavityMulti Cavity,as Per Client's Requirement
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
1M Shots Life Precision Injection Molds 1 - 20 Cavity Moulds For Plastic Injection
Custom Plastic Injection Mold 1-20 Cavity 1M Shots Life
Product Technology
Through extensive simulation and optimization, combined with imported steel and high-precision machine tools, our Precision Plastic Molds excel in precision, lifespan, and production efficiency, making them particularly suitable for products requiring extremely tight tolerances.
Process Flow
- Product Evaluation and Mold Design
- Mold Flow Analysis and Optimization of the Glue Feeding System
- High-Precision CNC and Wire EDM
- Assembly and Dynamic Mold Testing
- Mold Trial and Parameter Optimization
Product Specifications
| Item | Parameter Description |
|---|---|
| Mold Type | High-Precision Plastic Mold |
| Mold Material | H13 / 1.2344 / S136 |
| Cavity | 1–20 |
| Mold Life | Over 1 Million Molds |
| Part Accuracy | ±0.01–0.015mm |
| Surface Treatment | Mirror Polishing / Chrome Plating / Nitriding |
| Applicable Materials | POM / PC / ABS / PPS |
| Cooling System | Independent High-Efficiency Cooling Circuit |
| Heat Treatment | Vacuum Quenching / Nitriding |
| Product Cycle | 45–70 Days |
Product Applications
- High-Precision Components
- Strict Appearance Components
- Engineering Plastic Functional Components
Product Advantages
- Ultra-High Precision: ±0.01mm
- Mold Life: Up to One Million Molds
- Efficient Cooling: Improves Production Efficiency
- Stable Operation: Consistent Quality
FAQ
Q1: Can Accuracy Be Guaranteed? ±0.01mm?
A1: Yes. High-end processing equipment and testing guarantee this.
Q2: Is the mold suitable for engineering plastics?
A2: Yes. It can mold high-strength plastics.
Q3: What is the expected mold lifespan?
A3: Over 1 million molds.
Q4: Is full testing provided?
A4: A full dimensional inspection report is provided.
Q5: What is the production lead time?
A5: Typically 45–70 days.
Customized Services
We provide full-process customization services, from mold design and precision requirements to surface treatment.
