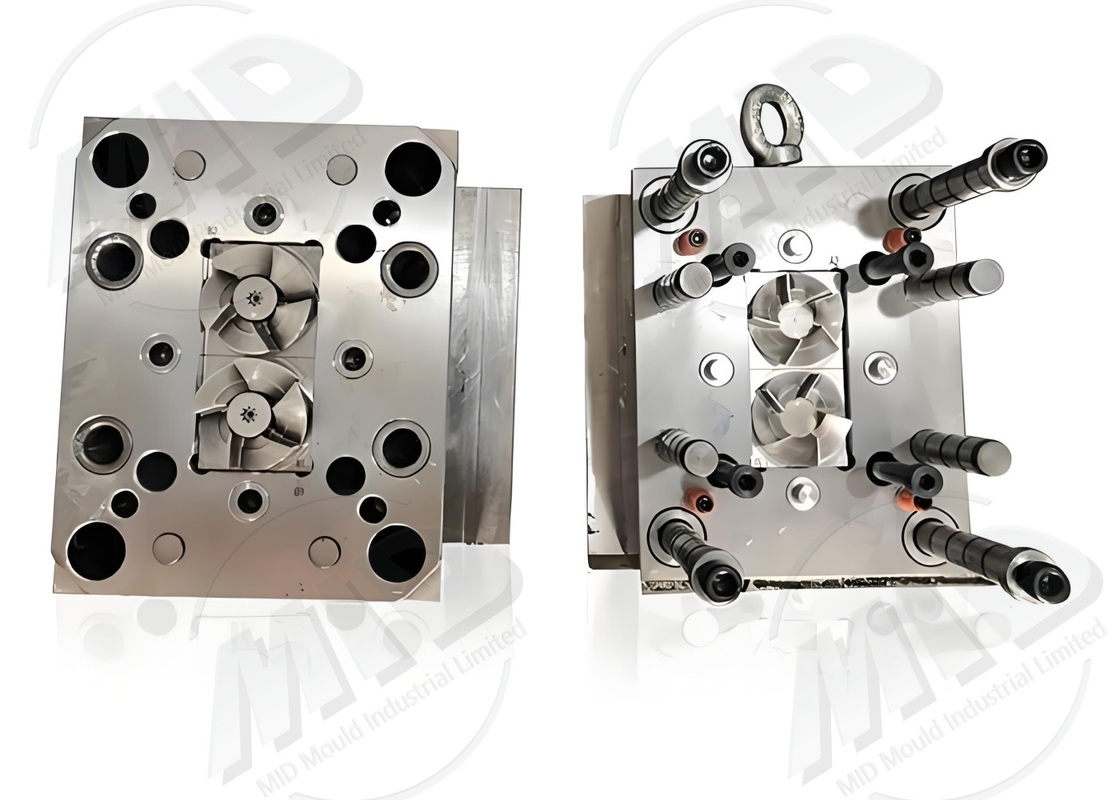

1 - 16 Cavity Precision Plastic Molds High Speed CNC Machining Molds ±0.015mm Accuracy
-
Highlight
1 Cavity Precision Plastic Molds
,16 Cavity Precision Plastic Molds
,High Speed CNC Machining Molds
-
ProductPrecision Plastic Molds
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
CavityMulti Cavity,as Per Client's Requirement
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
1 - 16 Cavity Precision Plastic Molds High Speed CNC Machining Molds ±0.015mm Accuracy
Precision Plastic Injection Mold 1-16 Cavity ±0.015mm Accuracy
Product Technology
Fully digitally designed and high-precision CNC machining ensure mold stability during repeated production. A highly efficient cooling circuit design improves injection molding efficiency, making this product particularly suitable for customers with high precision and production requirements.
Process Flow
- Product Requirements Communication and Design Confirmation
- 3D Modeling and Mold Flow Analysis
- High-Speed CNC Machining and EDM Processing
- Mold Assembly and Commissioning
- Mold Trial Confirmation and Optimized Delivery
Product Specifications
| Item | Parameter Description |
|---|---|
| Mold Type | Precision Injection Mold |
| Mold Material | S136 H13 1.2344 |
| Cavity | 1–16 |
| Mold Life | Over 1 Million Molds |
| Part Accuracy | ±0.015mm |
| Surface Treatment | Mirror Polish, Nitriding, PVD |
| Applicable Materials | PC, POM, PPS, ABS |
| Cooling System | High-Efficiency Cooling Cycle |
| Heat Treatment | Vacuum Treatment |
| Production Cycle | 40–65 Days |
Product Applications
- Precision Engineering Plastic Parts
- Appearance Parts and Transparent Products
- Mass Production
Product Advantages
- High Accuracy ±0.015mm
- Mold Life Millions of Molds
- High-Efficiency Cooling Increases Production Capacity
- Supports Complex Structural Designs
FAQ
Q1: What is the mold accuracy?
A1: ±0.015mm
Q2: What is the mold lifespan?
A2: Over 1 million molds
Q3: Can you make multi-cavity molds?
A3: Customizable based on production volume.
Q4: Are inspection reports provided?
A4: Complete trial mold and measurement reports are provided.
Q5: What is the production cycle?
A5: Typically 40–65 days.
Customized Services
We can provide custom mold designs, hot runner configurations, surface treatments, and automated interface customization.
