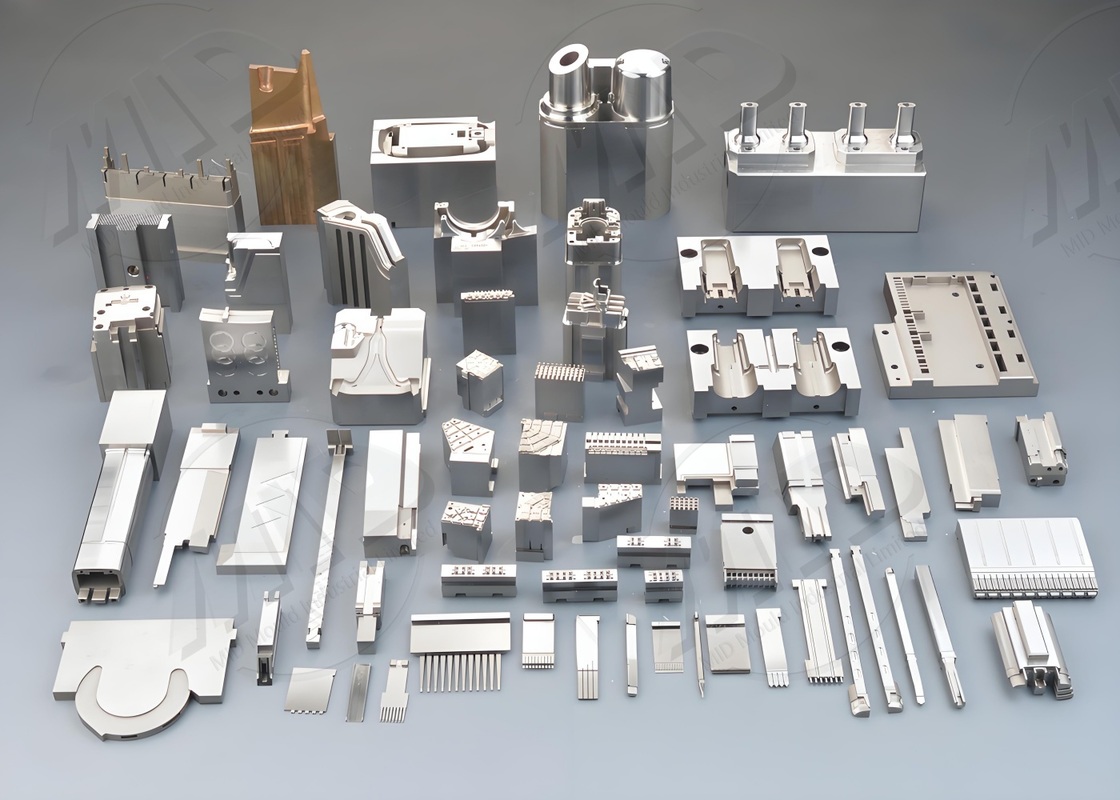

Multi Cavity Precision Plastic Molds Custom Mold For Plastic Injection
-
Highlight
Multi Cavity Precision Plastic Molds
,Custom Precision Plastic Molds
,Custom Mold For Plastic Injection
-
ProductPrecision Plastic Molds
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
CavityMulti Cavity,as Per Client's Requirement
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
Multi Cavity Precision Plastic Molds Custom Mold For Plastic Injection
Precision Plastic Molds Custom Mold Design For Injection Production
Product Processing
The mold undergoes full-process quality control, with strict monitoring of every manufacturing step. This ensures high precision even during long-term operation, making it suitable for complex parts and large-scale mass production.
Process Flow
- Product Design Requirements Analysis
- 3D Modeling and Mold Flow Optimization
- High-Speed CNC Machining and EDM
- Assembly and Cooling System Commissioning
- Mold Trial and Performance Verification
Product Specifications
| Item | Parameter Description |
|---|---|
| Mold Type | Precision Plastic Injection Mold |
| Mold Material | H13, 1.2344, S136 |
| Cavities | 1–16 |
| Mold Life | Over 1,000,000 Molds |
| Part Accuracy | ±0.015mm |
| Surface Treatment | Polishing, Nitriding, PVD |
| Applicable Materials | ABS, PC, POM, PPS |
| Cooling System | High-Efficiency Water Cooling |
| Heat Treatment | Vacuum Quenching |
| Production Cycle | 40–65 Days |
Product Applications
- High-Precision Plastic Parts
- Appearance and Functional Parts
- Engineering Plastic Products
Product Advantages
- Precision ±0.015mm
- Mold lifespan reaches millions of cycles
- Efficient cooling improves productivity
- Mold flow analysis reduces defect rates
FAQ
Q1: What is the mold accuracy?
A1: ±0.015mm
Q2: What is the typical mold lifespan?
A2: Over one million cycles
Q3: Is it suitable for exterior parts?
A3: Yes, the surface can be polished to a mirror finish.
Q4: Is testing provided?
A4: A complete test report is provided.
Q5: Is expedited delivery possible?
A5: Yes, expedited delivery is available.
Customized Services
Customer-defined mold cavities, cooling systems, hot runners, and surface finishes are available.
Related Cases
Our services cover all industries and reach all parts of the world.
