Precision Plastic Molds High Accuracy Injection Tooling Custom Design
-
Highlight
24-cavity plastic injection molds
,high-precision plastic molds ±0.01mm
,injection tooling with tight tolerance
-
ProductVehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
CavityMulti Cavity,as Per Client's Requirement
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure

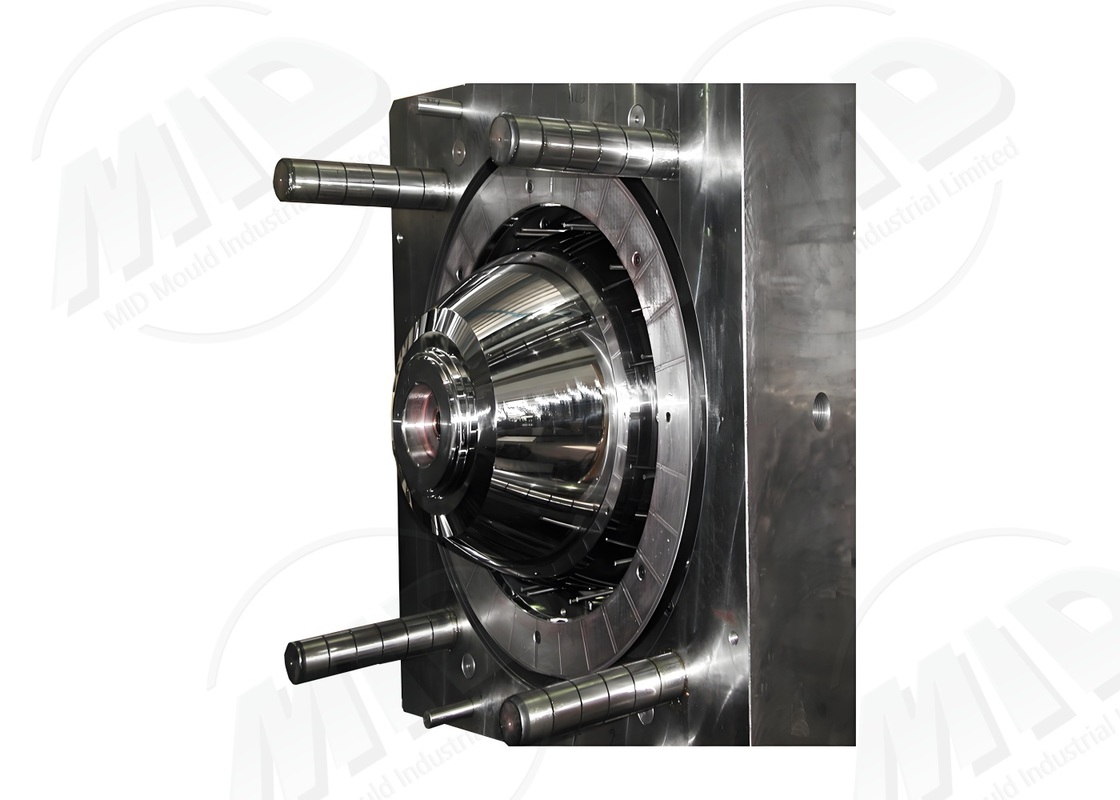

Precision Plastic Molds High Accuracy Injection Tooling Custom Design
Precision Plastic Molds High Accuracy Injection Tooling Custom Design
Product Technology
Our precision plastic molds utilize high-precision CNC machining and mold flow analysis technology to ensure dimensional stability and smooth surface finishes. Imported steel and vacuum heat treatment guarantee mold durability and consistency, even in high-volume production environments.
Process Flow
- Requirements Analysis and Mold Structure Design
- Mold Flow Analysis to Confirm Gate and Venting Solutions
- CNC and Wire EDM High-Precision Machining
- Mold Assembly and Cooling Circuit Optimization
- Mold Trial Inspection and Delivery Report
Product Specifications
| Item | Parameter | Description |
|---|---|---|
| Mold Type | Precision Plastic Injection Mold | |
| Mold Material | H13, S136, 718H | |
| Cavity | 1–24 | |
| Mold Life | 800,000–1.5 Million Cycles | |
| Part Accuracy | ±0.01mm | |
| Surface Treatment | Polishing, Chrome Plating, Nitriding | |
| Applicable Materials | ABS, PC, PBT, POM | |
| Cooling System | Independent High-Efficiency Cooling | |
| Heat Treatment | Vacuum Quenching, Nitriding | |
| Product Cycle | 45–70 Days |
Product Applications
- Mass Production of High-Precision Parts
- Molding of Appearance and Transparent Parts
- Functional Engineering Plastic Products
Product Advantages
- High Accuracy: ±0.01mm
- Mold Life: Over One Million Cycles
- High-Quality Steel Ensures Durability
- Mold Flow Analysis Reduces Defects
Frequently Asked Questions
Q1: What is the precision control range?
A1: ±0.01mm, suitable for high-precision products.
Q2: What is the typical mold lifespan?
A2: 800,000–1.5 million cycles.
Q3: Does it support multi-cavity molds?
A3: 1–24 cavities are supported, customizable.
Q4: Is it suitable for exterior parts?
A4: Yes, surface finish can reach mirror-grade.
Q5: What is the delivery time?
A5: 45–70 days, expedited delivery can shorten lead times.
Customized Services
We can customize the number of cavities, cooling system, hot runner, and surface treatment solutions based on your specific requirements.
Related Cases
Our services cover all industries and reach all parts of the world.
