Highlight
1-16 cavity plastic injection molds
,high-cycle precision plastic molds
,durable plastic injection molds with warranty
-
ProductVehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
CavityMulti Cavity,as Per Client's Requirement
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure

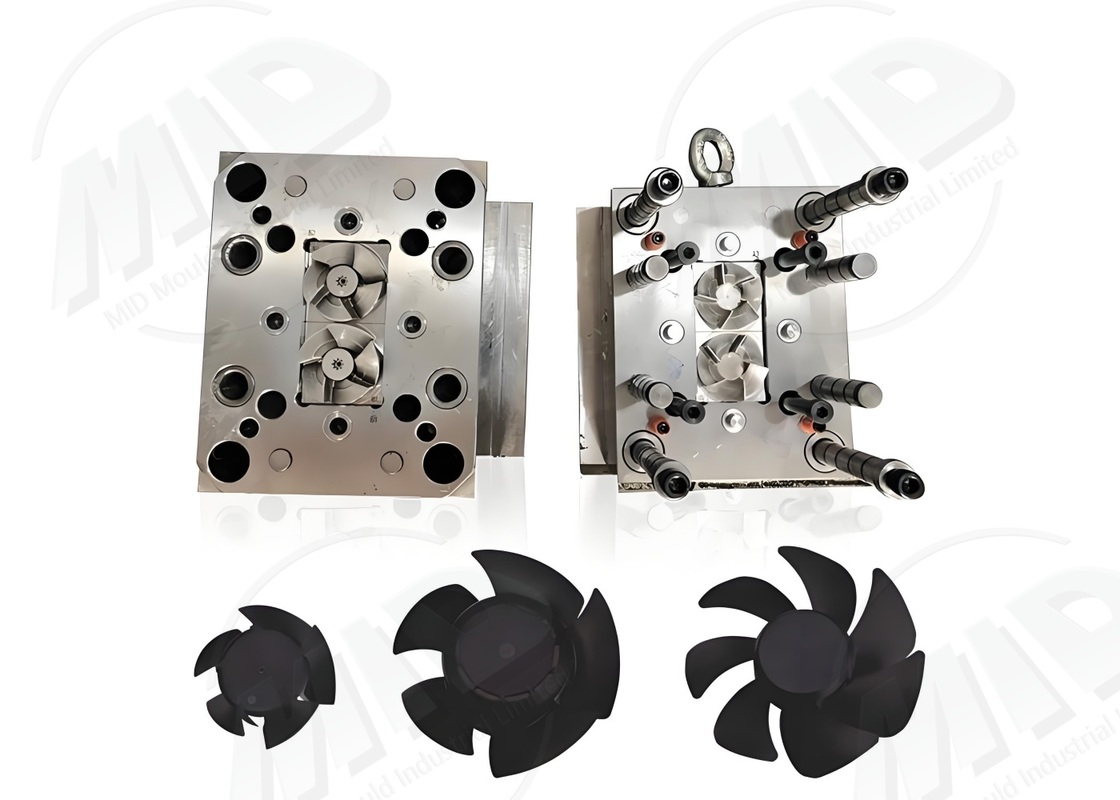

Precision Plastic Injection Molds 1-16 Cavity 800K-1.5M Cycles
Premium Precision Plastic Injection Molds Custom Made Long Lasting
Product Technology
Precision Plastic Molds utilize high-strength mold steel and advanced heat treatment processes to ensure high precision and durability even under high-intensity injection molding. They are suitable for the production of a variety of complex structural parts.
Process Flow
- Confirmation of Customer Product Requirements
- Mold Flow Analysis and Solution Optimization
- High-Speed CNC Precision Machining
- Assembly and Dynamic Testing
- Mold Trial and Performance Verification
Product Specifications
| Item | Parameter Description |
|---|---|
| Mold Type | Precision Injection Mold |
| Mold Material | S136 / H13 / 718H |
| Number of Cavities | 1–16 |
| Mold Life | 800,000–1.5 Million Cycles |
| Part Accuracy | ±0.01mm |
| Surface Treatment | Chrome Plating / Polishing / PVD |
| Applicable Materials | ABS / PC / PPS / PBT |
| Cooling System | High-Efficiency Cooling Design |
| Heat Treatment Process | Vacuum Heat Treatment |
| Production Cycle | 50–75 Days |
Product Applications
- Small-Batch High-Precision Trial Production
- Long-Term Mass Production of Appearance Parts
- Engineering Plastic Parts
Product Advantages
- Accuracy ±0.01mm
- Mold Life 1.5 Million Cycles
- High Structural Complexity
- Stability and Consistency
FAQ
Q1: Is this mold suitable for small batches or mass production?
A1: It is suitable for both, with a lifespan sufficient for large-scale production.
Q2: Can the mold be equipped with a hot runner?
A2: Both cold and hot runner options are supported.
Q3: What is the precision control range?
A3: ±0.01mm.
Q4: Is it suitable for engineering plastics?
A4: Yes, we support high-performance materials such as PPS and PBT.
Q5: Will the mold be tested before delivery?
A5: Yes, we will provide a sample and test report before delivery.
Customized Services
The number of cavities, injection molding method, cooling design, and surface treatment can be customized.
Related Cases
Our services cover all industries and reach all parts of the world.
