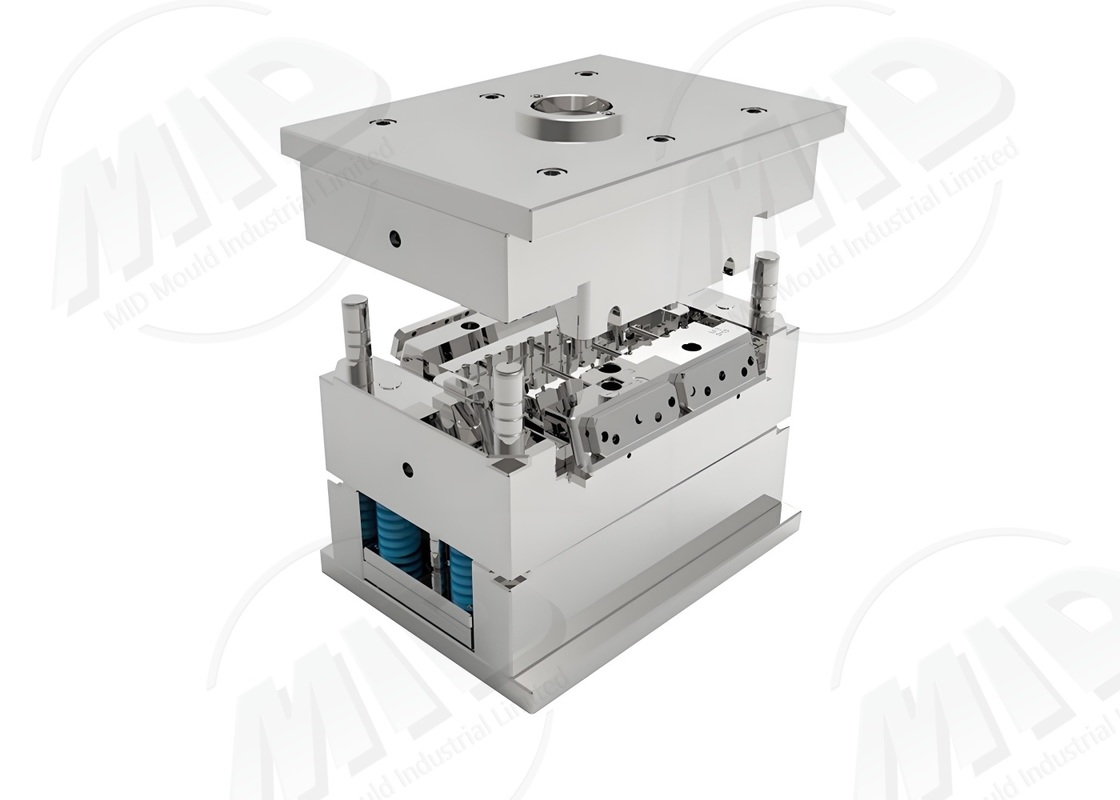

Durable Precision Plastic Mould 1 - 24 Cavity Plastic Moulding Dies 800K Shots Life
-
Highlight
Durable Precision Plastic Mould
,1 Cavity Plastic Moulding Dies
,24 Cavity Plastic Moulding Dies
-
ProductPrecision Plastic Mould
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
CavityMulti Cavity,as Per Client's Requirement
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
Durable Precision Plastic Mould 1 - 24 Cavity Plastic Moulding Dies 800K Shots Life
Precision Plastic Injection Mold 1-24 Cavity 800K Shots Life
Durable, high-quality precision plastic molds designed for stability and repeatability in manufacturing applications.
Product Technology
Fully digitally designed and simulated throughout the entire process, combined with imported high-speed machining centers, ensures extremely high mold stability and repeatability. The mold surface can be finished to a mirror finish, making it suitable for molding transparent parts or exterior components.
Process Flow
- Customer Requirements Communication and Design Confirmation
- CAD/CAE Simulation and Optimization
- CNC High-Precision Cutting and EDM
- Mold Assembly and Cooling Optimization Design
- Mold Trial Inspection and Improvement
Product Specifications
| Item | Parameter Description |
|---|---|
| Mold Type | Precision Plastic Mold |
| Mold Material | 718H / S136 / 1.2343 |
| Cavity | 1–24 |
| Mold Life | 800,000–1.2 Million Molds |
| Part Accuracy | ±0.01–0.02mm |
| Surface Treatment | Polishing / PVD / Nitriding |
| Applicable Materials | ABS / PC / PBT / PPS |
| Cooling System | High-Efficiency Cooling Circulation System |
| Heat Treatment Process | Vacuum Heat Treatment |
| Production Cycle | 50–75 Days |
Product Applications
- Appearance Parts Production
- High-Precision Functional Parts
- Mass Manufacturing of Engineering Plastic Products
Product Advantages
- High Precision ±0.01–0.02mm
- Mirror Finish Available
- Lifespan Up to Millions of Molds
- Stable and Reliable for Mass Production
Frequently Asked Questions
Q1: Can the mold surface be mirror-finished?
A1: Yes, it can meet the needs of transparent parts and exterior components.
Q2: What materials are suitable for this mold?
A2: ABS, PC, PBT, PPS, etc.
Q3: What is the estimated mold lifespan?
A3: On average, 800,000–1.2 million cycles.
Q4: Can the mold be equipped with a hot runner?
A4: Both cold and hot runner solutions are supported.
Q5: Do you provide samples?
A5: We provide trial molds for verification.
Customized Services
We offer full customization, including surface treatment, cooling system, and number of cavities to meet your specific production requirements.
Related Cases
Our services cover all industries and reach all parts of the world.
