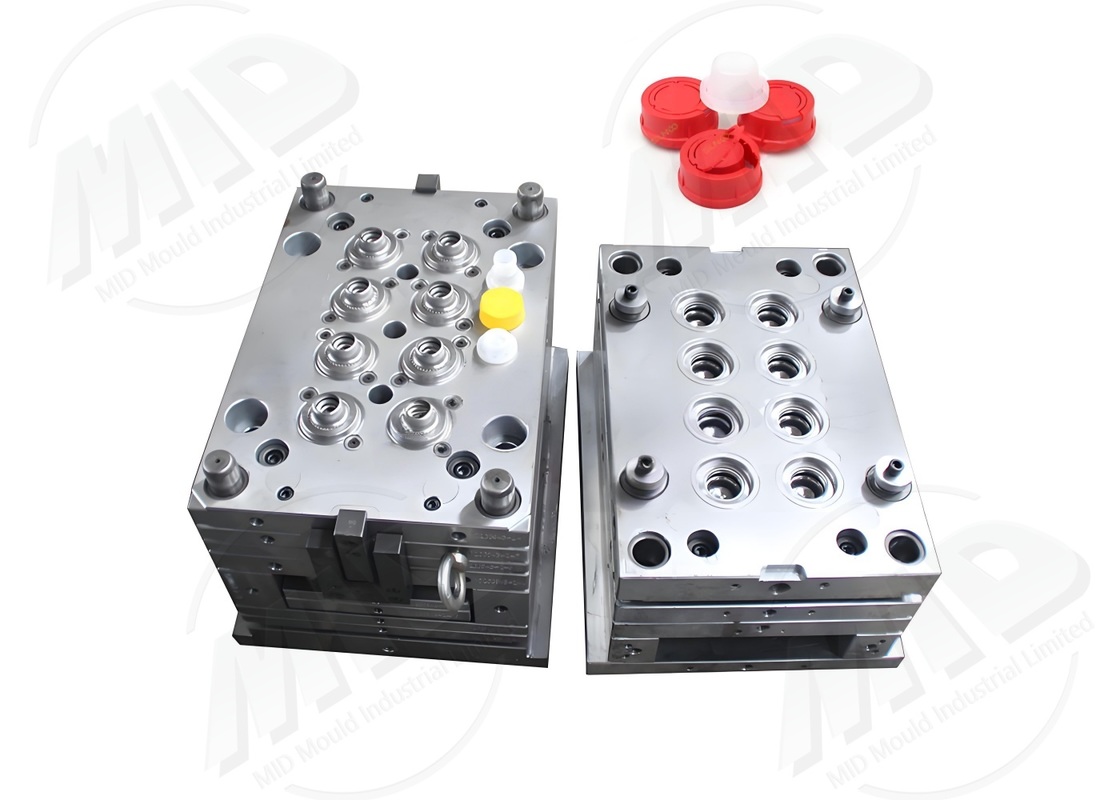

Customizable Unscrewing Molds Threaded Plastic Molding Die High Precision
-
Highlight
Customizable Unscrewing Molds
,Threaded Plastic Molding Die
,Plastic Molding Die High Precision
-
ProductUnscrewing Molds
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
CavityMulti Cavity,as Per Client's Requirement
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
Product NamePlastic Injection Mould,injection Machine Mold,Shanghai Factory Cheap Plastic Component Injection Mold,High Quality Virgin Raw Material Custom Plastic Injection Mold Product,Gear Parts
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
Customizable Unscrewing Molds Threaded Plastic Molding Die High Precision
Unscrewing Molds High Precision Threaded Plastic Injection Molding Durable And Customizable
Durable and customizable unscrewing molds for precision threaded plastic components.
Product Process
The unscrewing mold utilizes a precision gear mechanism and servo drive to automatically rotate the threads during demolding, ensuring the product's threads are fully formed and ejected smoothly.
Process Flow
- Mold Design and Thread Structure Analysis
- CAD/CAE Mold Demolding Simulation
- Precision CNC and EDM Thread Cavity Machining
- Installation of the Rotary Drive Mechanism
- Mold Trial and Thread Accuracy Verification
Product Specifications
| Item | Parameter Description |
|---|---|
| Mold Type | Automatic Swing-Out Injection Mold |
| Mold Material | H13 / 718H / S136 |
| Number of Cavities | 1–8 |
| Thread Diameter | M5–M50 |
| Mold Life | 800,000–1.5 Million Molds |
| Mold Demolding Method | Automatic Rotary Demolding |
| Product Accuracy | ±0.02mm |
| Cooling System | High-Efficiency Water Cooling |
| Drive | Hydraulic/Motor Drive |
| Production Cycle | 50–75 Days |
Product Advantages
- Automatic Rotary Demolding to Avoid Thread Damage
- Guaranteed Thread Accuracy and Finish
- Supports Complex Multi-Start Threaded Products
- Long-Life Mold with Stable Structure
FAQ
Q1: Can Multi-Start Threads Be Produced?
Q2: Are Threads Easily Deformed?
Q3: What Materials Are Suitable?
Q4: What is the mold lifespan?
Q5: Can the drive method be customized?
Customized Services
We support custom thread structures, multi-cavity designs, and automated interface integration.
