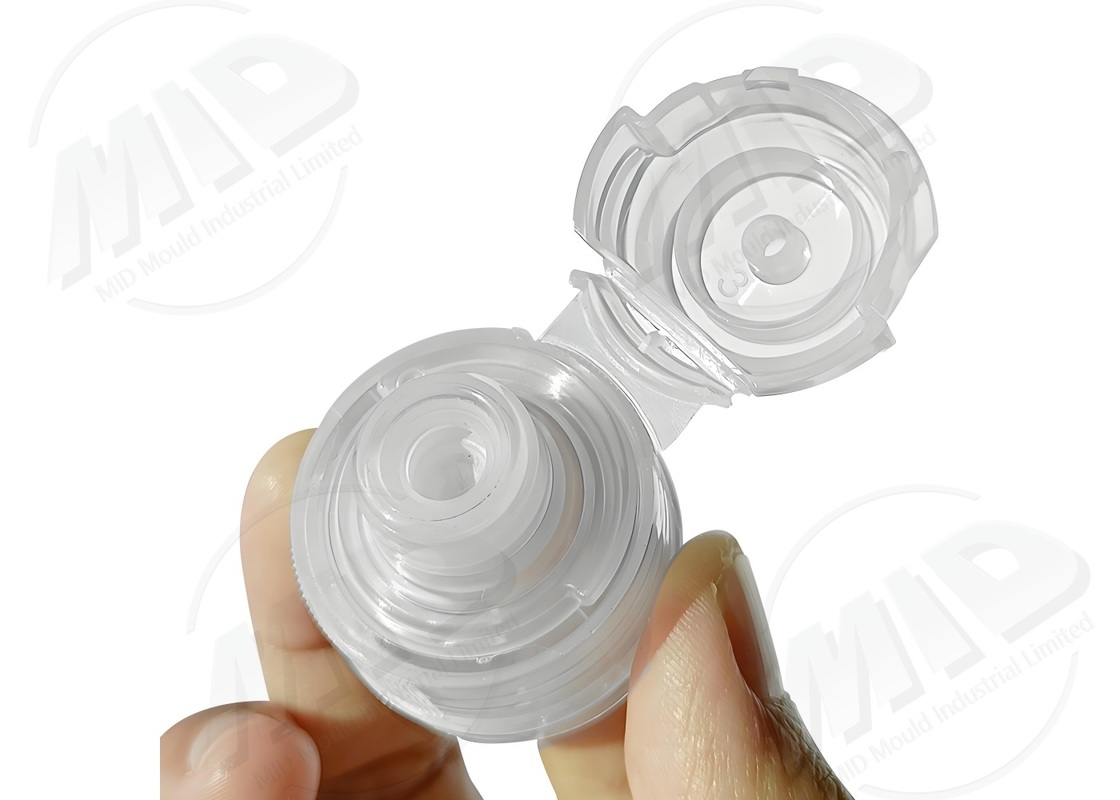

High Accuracy Unscrewing Mold Customized Plastic Moulding Die For Plastic Threads Automatic Release
-
Highlight
High Accuracy Unscrewing Mold
,Unscrewing Mold Customized
,Customized Plastic Moulding Die
-
ProductUnscrewing Mold
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
CavityMulti Cavity,as Per Client's Requirement
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
Product NamePlastic Injection Mould,injection Machine Mold,Shanghai Factory Cheap Plastic Component Injection Mold,High Quality Virgin Raw Material Custom Plastic Injection Mold Product,Gear Parts
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
High Accuracy Unscrewing Mold Customized Plastic Moulding Die For Plastic Threads Automatic Release
High Accuracy Unscrewing Molds For Plastic Threads Automatic Release Long Service Life
Automatic thread release molds with long service life for precision plastic components.
Product Process
Unscrewing molds utilize transmission gears and a rotating mechanism to remove threads from the mold, eliminating damage to the product caused by traditional forced ejection and ensuring the finished product's smooth finish and dimensional stability.
Process Flow
- Thread Analysis and Mold Design
- CAD/CAE Demolding Simulation
- Precision CNC/EDM Machining
- Installation of Rotary Drive System
- Mold Trial Inspection and Precision Calibration
Product Specifications
| Item | Parameter Description |
|---|---|
| Mold Type | Automatic Thread Unscrewing Injection Mold |
| Mold Material | H13 / 718 / S136 |
| Number of Cavities | 1–8 |
| Thread Specifications | Customizable (Metric/Imperial) |
| Mold Life | 800,000–1.5 Million Molds |
| Demolding Method | Automatic Rotary Demolding |
| Product Accuracy | ±0.02mm |
| Cooling System | Built-in High-Efficiency Cooling Channels |
| Drive Type | Motor/Hydraulic |
| Production Cycle | 55–80 Days |
Product Applications
- Suitable for molding complex threaded parts
- Suitable for mass production of high-precision products
- Flexible adaptation to different production requirements
Product Advantages
- Guaranteed complete thread forming
- Suitable for complex thread structures
- Stable and controllable precision
- Long mold life and durability
FAQ
Q1: Are special threads supported?
A1: We offer custom non-standard threads.
Q2: What is the production lead time?
A2: Typically 55–80 days, with expedited processing available.
Q3: What is the mold lifespan?
A3: Up to 800,000–1.5 million mold cycles.
Q4: Is the thread smooth?
A4: Yes. The cavity can be polished to a mirror finish.
Q5: Can you provide a complete solution?
A5: Yes. This includes mold design, manufacturing, and automation interface.
Customized Services
We can customize thread types, rotation systems, and cooling channels based on customer requirements. We also support food-grade or medical-grade molds and provide a complete turnkey solution.
Related Cases
Our services cover all industries and reach all parts of the world.
