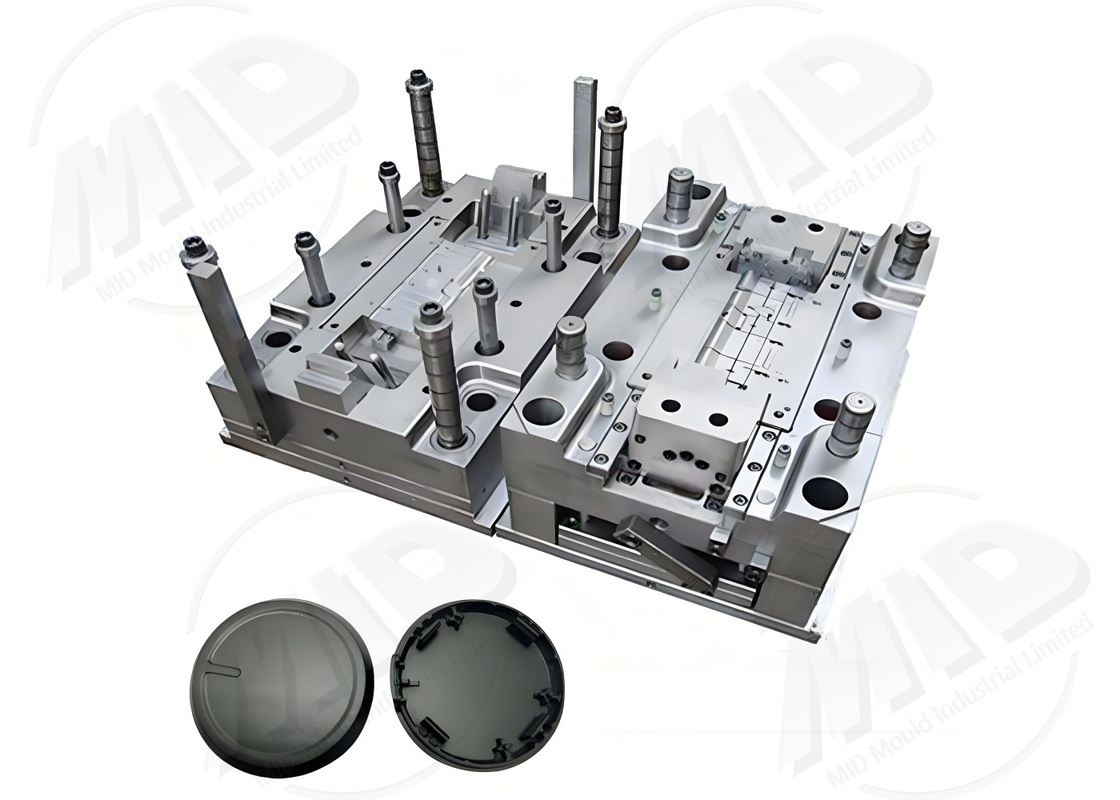

High Precision Unscrewing Molds 800K - 1M Cycles Molds For Plastic Injection
-
Highlight
High Precision Unscrewing Molds
,800K Cycles Molds For Plastic Injection
,1M Cycles Molds For Plastic Injection
-
ProductUnscrewing Molds
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
CavityMulti Cavity,as Per Client's Requirement
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
Product NamePlastic Injection Mould,injection Machine Mold,Shanghai Factory Cheap Plastic Component Injection Mold,High Quality Virgin Raw Material Custom Plastic Injection Mold Product,Gear Parts
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
High Precision Unscrewing Molds 800K - 1M Cycles Molds For Plastic Injection
High Precision Unscrewing Molds For Plastic Injection 800K-1M Cycles
Product Description
The unscrewing die utilizes a rotating mechanism to smoothly remove threaded parts, ensuring the integrity of the product surface and thread structure. It is particularly suitable for producing high-consistency, high-volume threaded parts.
Process Flow
- Design of the thread cavity and unscrewing mechanism
- Mold flow analysis and filling simulation
- CNC and EDM machining of high-precision parts
- Assembly of drive and cooling devices
- Trial mold adjustment
Product Specifications
| Item | Parameter Description |
|---|---|
| Mold Type | Thread Unscrewing Die |
| Mold Steel | 718H H13 |
| Number of Cavities | 1–4 |
| Mold Life | 800,000–1,000,000 cycles |
| Surface Finish | Polishing, Nitriding |
| Applicable Materials | ABS, PE, PP |
| Drive Method | Hydraulic, Motor |
| Product Accuracy | ±0.02mm |
| Cooling Method | High-efficiency water cooling |
| Production Cycle | 65–90 days |
Product Advantages
- Guaranteed thread integrity
- Stable and reliable production
- High automation efficiency
- Long mold life
- Excellent cost-effectiveness
FAQ
Q1: What threads are suitable for this die?
A1: Both metric and imperial threads are acceptable.
Q2: What is the mold lifespan?
A2: Typically 800,000–1,000,000 mold cycles.
Q3: Is the drive system interchangeable?
A3: Yes, we can customize it based on your needs.
Q4: What is the production cycle?
A4: Typically 65–90 days.
Q5: Can we customize it?
A5: Yes, we can design it to your exact specifications.
Personalized Customization Service
We can customize the thread standard, number of cavities, drive system, and cooling system to ensure optimal production results.
Related Cases
Our services cover all industries and reach all parts of the world.
