Highlight
High Precision Unscrewing Molds
,Multi Cavity Precision Plastic Molds
,Precision Plastic Mold High Precision
-
ProductUnscrewing Molds
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
CavityMulti Cavity,as Per Client's Requirement
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure

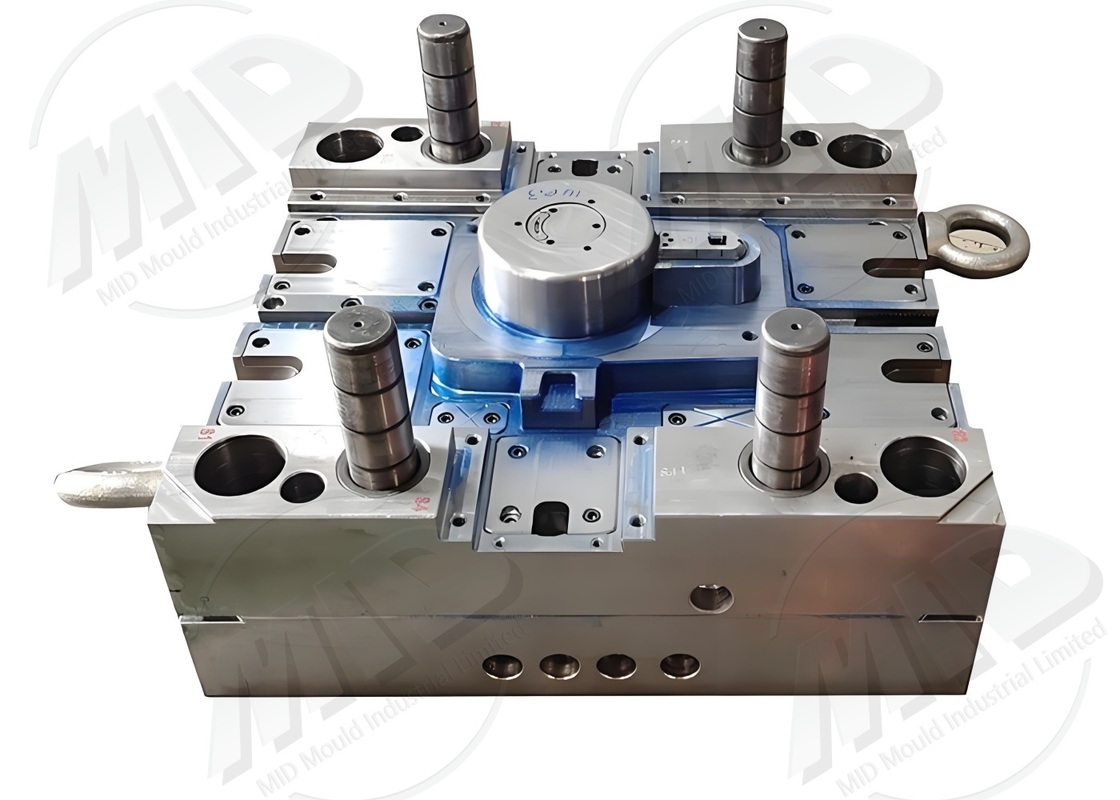

High Precision Unscrewing Molds Multi Cavity Precision Plastic Mold
High Performance Precision Plastic Molds Reliable Accurate And Long Lasting
Product Technology
Utilizing advanced CAD/CAE analysis and high-precision machining, our Precision Plastic Molds ensure consistent parts within tight tolerances. Ideal for producing complex parts requiring high durability.
Process Flow
- Customer Needs and Product Analysis
- CAE Mold Flow Simulation and Optimization
- Precision CNC and Wire EDM
- Mold Assembly and Cooling Debugging
- Trial Mold Inspection and Mass Production Optimization
Product Specifications
| Item | Parameter | Description |
|---|---|---|
| Mold Type | Precision Injection Mold | |
| Mold Material | 718H / H13 / S136 | |
| Cavity | 1–24 | |
| Mold Life | 800,000–1.2 Million Molds | |
| Part Accuracy | ±0.01–0.02mm | |
| Surface Treatment | Polishing / PVD Coating | |
| Applicable Materials | POM / PPS / PC / ABS | |
| Cooling System | High-Efficiency Water Cooling Design | |
| Heat Treatment | Vacuum Treatment | |
| Production Cycle | 45–70 Days |
Product Applications
- Complex Structural Part Manufacturing
- Tight-Fit Part Manufacturing
- High-Precision Injection Molded Parts Mass Processing
Product Advantages
- High Precision and Good Repeatability
- Long Life and Stable Operation
- High-Finish Molding
- Adaptable to Various Materials
FAQ
Q1: Does the system support custom threads and complex structures?
A1: We can support precision machining of complex structural parts and threaded components.
Q2: What is the product tolerance that can be controlled?
A2: ±0.01–0.02mm
Q3: What is the typical mold lifespan?
A3: On average, 800,000–1.2 million mold cycles.
Q4: What plastics are suitable for this mold?
A4: We can process engineering plastics and high-performance plastics.
Q5: Do you provide samples?
A5: We can start mass production after providing sample confirmation.
Customized Services
We support customized solutions for specific structural parts, mold lifespan requirements, and automation interfaces.
