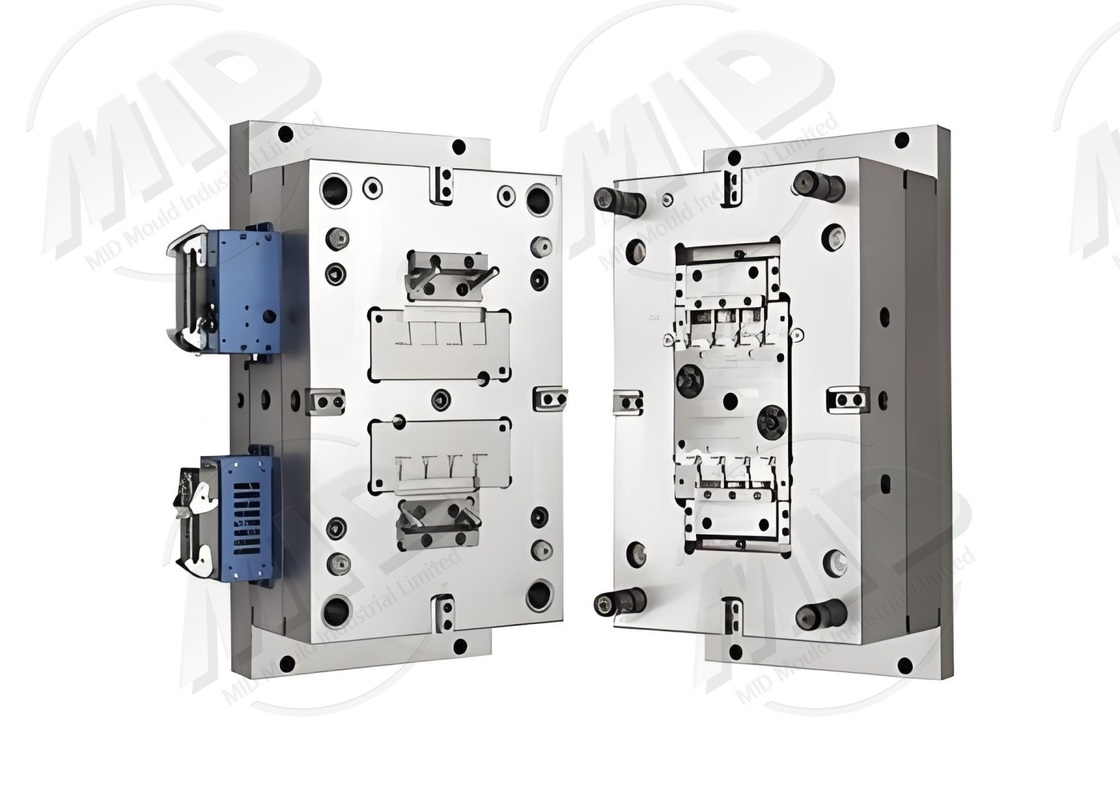

Custom Made Precision Plastic Molds Accurate Stable and Efficient
-
Highlight
Precision Plastic Injection Mold
,1-20 Cavities Plastic Mold
,High Accuracy Plastic Injection Mold
-
ProductVehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
CavityMulti Cavity,as Per Client's Requirement
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure

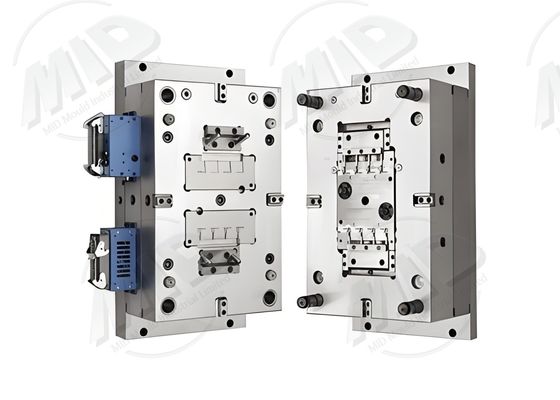

Custom Made Precision Plastic Molds Accurate Stable and Efficient
Custom Made Precision Plastic Molds - Accurate, Stable and Efficient
Product Technology
Precision Plastic Molds utilizes high-precision CNC equipment and mold flow analysis technology to ensure smooth, defect-free molding of complex parts. This product is widely used for plastic products requiring tight tolerances.
Process Flow
- Product Structure Analysis and Mold Design
- Mold Flow Analysis to Optimize Injection Molding Parameters
- CNC Precision Machining and EDM
- Mold Assembly and Dynamic Testing
- Mold Confirmation and Delivery
Product Specifications
| Item | Parameter Description |
|---|---|
| Mold Type | High-precision plastic mold |
| Mold Material | H13 / S136 / 1.2316 |
| Cavity | 1–20 cavities |
| Mold Life | Over 1,000,000 cycles |
| Part Accuracy | ±0.015mm |
| Surface Treatment | Polishing / Chrome Plating / Nitriding |
| Applicable Materials | PC / ABS / PBT / POM |
| Cooling System | Built-in Cooling Circuit |
| Heat Treatment | Vacuum Quenching / Nitriding |
| Product Cycle | 50–75 days |
Product Applications
- High-precision assembly manufacturing
- Production of parts with stringent appearance requirements
- High-stability mass production
Product Advantages
- High Precision: ±0.015mm
- Mold Life: Millions of cycles
- High Surface Finish
- Efficient Cooling System Increases Productivity
FAQ
Q1: Can the mold be mirror-polished?
A1: We can meet the needs of transparent and exterior parts.
Q2: What is the mold lifespan?
A2: Using high-strength steel, we can generally achieve a mold lifespan of millions of times.
Q3: Is it suitable for mass production?
A3: Yes, we are specifically designed for large-scale production.
Q4: Can we have a hot runner?
A4: We can provide both cold and hot runner solutions.
Q5: What is the production lead time?
A5: Typically 50–75 days, expedited service available for special cases.
Customized Services
We can customize the number of cavities, cooling solutions, and surface treatments to meet diverse production goals.
