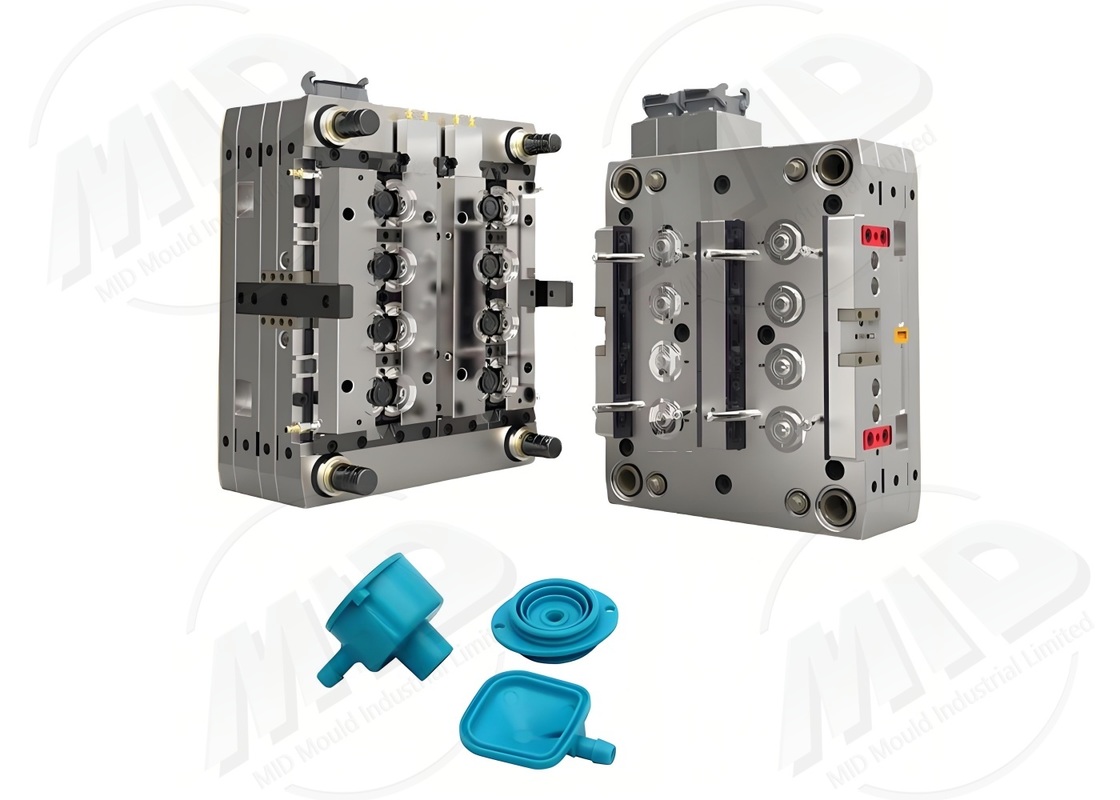

High Precision Unscrewing Injection Molds Custom Threaded Plastic Tooling Durable and Reliable
-
Highlight
P20 steel unscrewing molds
,high precision injection molds
,long-life unscrewing molds 1M cycles
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
ProductVehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
CavityMulti Cavity,as Per Client's Requirement
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
Product NamePlastic Injection Mould,injection Machine Mold,Shanghai Factory Cheap Plastic Component Injection Mold,High Quality Virgin Raw Material Custom Plastic Injection Mold Product,Gear Parts
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
High Precision Unscrewing Injection Molds Custom Threaded Plastic Tooling Durable and Reliable
High Precision Unscrewing Injection Molds
Custom Threaded Plastic Tooling - Durable and Reliable
Product Description
Product Process
The screw-out mold uses an automatic rotating mechanism to achieve thread demolding, preventing defects caused by forced ejection. Ideal for products with complex thread structures and high precision requirements.
Process Flow
- Product Design and Thread Analysis
- CAE Simulation of Molding and Cooling
- Thread Cavity Finishing
- Drive System and Guide Assembly
- Mold Trial Optimization
Product Parameters
| Item | Parameter | Description |
|---|---|---|
| Mold Type | Screw-out Injection Mold | |
| Mold Steel | P20 S136 | |
| Cavities | 2–8 | |
| Mold Life | Over 1,000,000 cycles | |
| Surface Treatment | Chrome Plating, Polishing | |
| Applicable Materials | ABS, PP, PE | |
| Drive Type | Motor, Hydraulic, Servo | |
| Precision | ±0.015mm | |
| Cooling System | Water-cooled | |
| Product Cycle | 70–95 days |
Product Advantages
- High-precision thread forming
- Automated demolding with high efficiency
- Diverse Drive Methods
- Long mold life
- High cost-effectiveness
Frequently Asked Questions
Q1: Is it suitable for multi-cavity production?
A1: Yes, up to 8 cavities.
Q2: What is the thread accuracy you can achieve?
A2: ±0.015mm.
Q3: What is the typical mold lifespan?
A3: Over a million mold cycles.
Q4: What drive methods are available?
A4: Hydraulic, motor, or servo are available.
Q5: What is the production lead time?
A5: Typically 70–95 days.
Customized Service
We provide integrated solutions tailored to your thread standards, drive preferences, and production volume requirements.
Related Cases
Our services cover all industries and reach all parts of the world.
