Highlight
high precision unscrewing mold
,plastic injection unscrewing mold
,600K-1M cycles unscrewing mold
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
ProductVehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
CavityMulti Cavity,as Per Client's Requirement
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
Product NamePlastic Injection Mould,injection Machine Mold,Shanghai Factory Cheap Plastic Component Injection Mold,High Quality Virgin Raw Material Custom Plastic Injection Mold Product,Gear Parts
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure

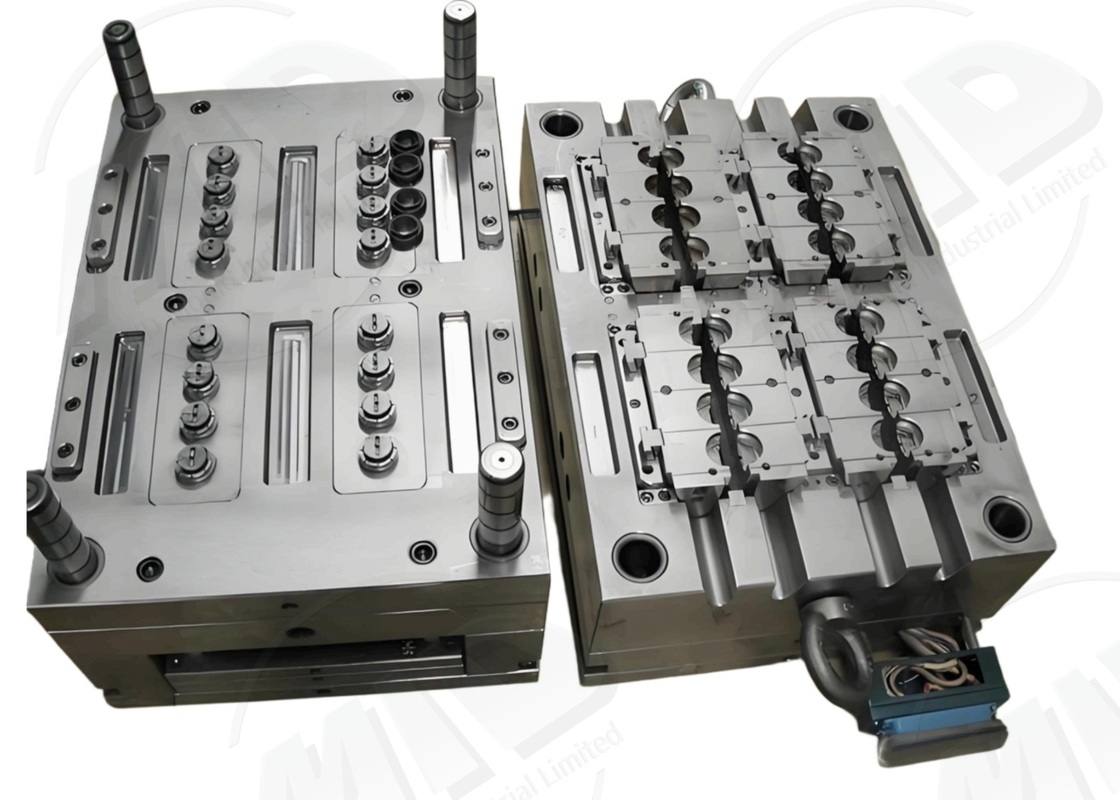

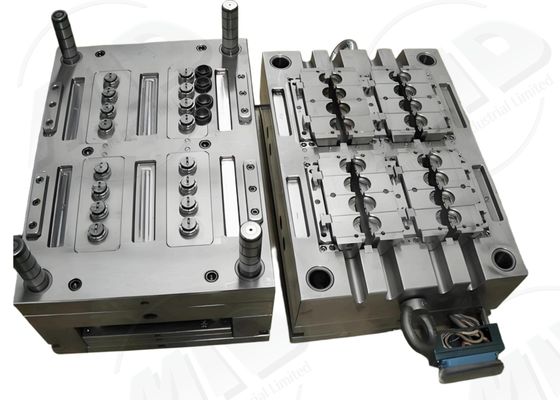

High Precision Unscrewing Mold for Plastic Injection 600K-1M Cycles
Advanced Unscrewing Molds High Precision Threaded Injection Molding
Product Process
The unscrewing mold uses a rotary-driven demolding mechanism to avoid thread deformation caused by forced ejection. This process is suitable for the production of products requiring precise threads, offering reliable operation and easy maintenance.
Process Flow
- Design of product threads and parting schemes
- CAE analysis of filling and thread strength
- High-precision machining of cavities and threaded components
- Assembly of the unscrewing system
- Mold trial testing and improvement
Product Parameters
| Item | Parameter Description |
|---|---|
| Mold Type | Unscrewing mold |
| Mold Steel | H13 S136 |
| Number of Cavities | 1–4 |
| Mold Life | 600,000–1,000,000 cycles |
| Surface Finish | Chrome Plating, Polishing |
| Machinable Materials | ABS, PE, PP |
| Drive | Hydraulic, Motor |
| Product Accuracy | ±0.02mm |
| Cooling System | High-efficiency water cooling |
| Production Cycle | 60–85 days |
Product Advantages
- Guaranteed complete thread formation
- Smooth, damage-free demolding
- Long mold life
- Efficient cost control
- Various drive options
FAQ
Q1: What threads can this mold produce?
A1: Both metric and imperial sizes are available.
Q2: Is the drive mechanism interchangeable?
A2: Yes, we can customize it to your needs.
Q3: What is the mold lifespan?
A3: Typically 600,000–1,000,000 mold cycles.
Q4: Are the threads easily damaged?
A4: No, the unscrewing mechanism is guaranteed to be intact.
Q5: What is the production lead time?
A5: Typically 60–85 days.
Customized Service
We offer customized thread molds in various specifications, supporting a variety of drive and material requirements, ensuring greater production flexibility for our customers.
Related Cases
Our services cover all industries and reach all parts of the world.
