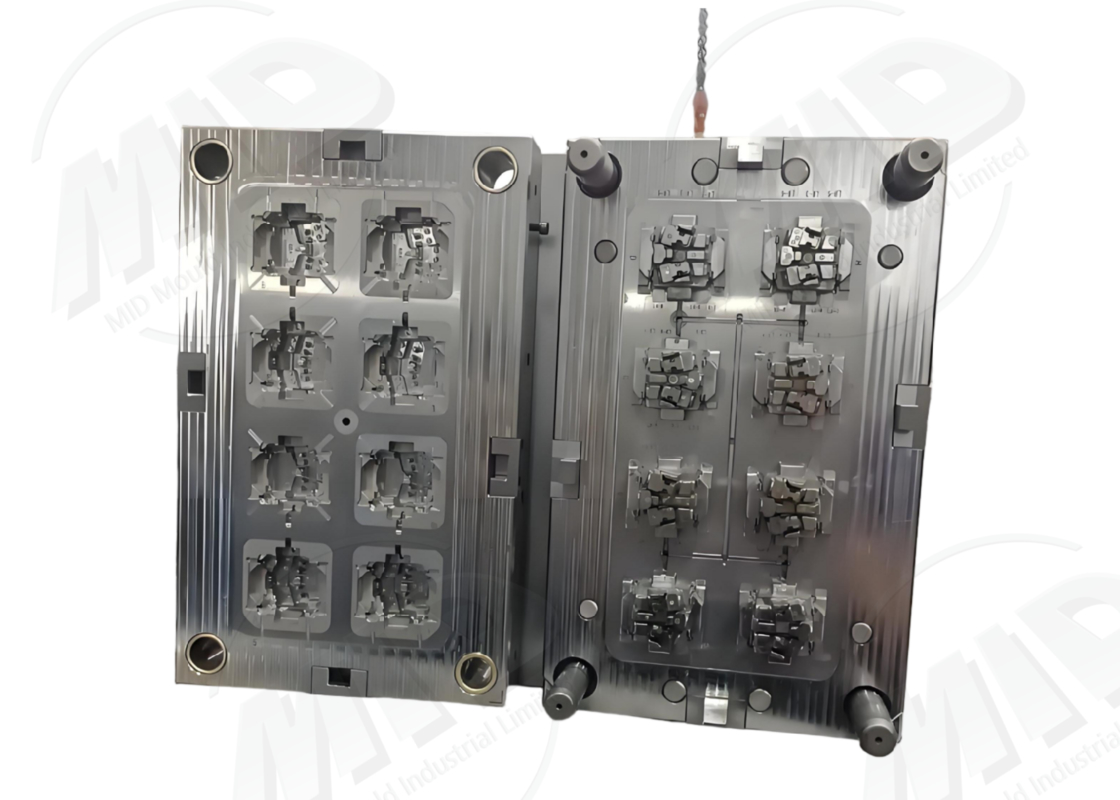

High Volume Multi Cavity Molds Precision Small Injection Molds Customized
-
Highlight
High Volume Multi Cavity Molds
,Precision Small Injection Molds
,Small Injection Molds Customized
-
Product NameMulti Cavity Molds
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
ProductVehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
CavityMulti Cavity,as Per Client's Requirement
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
High Volume Multi Cavity Molds Precision Small Injection Molds Customized
Multi Cavity Injection Molds High Volume Small Plastic Parts Production Consistent Quality and Cost Saving
Multi-cavity injection molds enable efficient, high-volume production of small plastic components with consistent quality and significant cost savings.
Product Process
Multi-cavity injection molds utilize multiple identical cavities within a single mold, allowing simultaneous production of small products during each injection cycle. This process is ideal for high-demand plastic products including bottle caps, medical consumables, and cosmetic accessories.
Process Flow
- Determine part quantity and optimal cavity layout
- Perform CAD/CAE analysis for balanced flow channels
- Precision CNC and spark-cut machining of cavities
- Assemble cooling system and precision guides
- Thorough mold testing for appearance and weight consistency
Product Specifications
| Item | Parameter Description |
|---|---|
| Mold Type | Multi-cavity injection mold |
| Mold Material | P20, H13, S136 |
| Cavities | 8–96 |
| Mold Life | Over 1 million cycles |
| Surface Treatment | Chrome plating, polishing, nitriding |
| Applicable Materials | PP, PE, ABS, PC |
| Precision Tolerance | ±0.01mm |
| Cooling System | Multi-circuit high-efficiency water cooling |
| Injection Machine Compatibility | 200T–1200T |
| Turn-time | 55–75 days |
Product Applications
- Bottle caps and closures
- Cosmetic packaging components
- Medical syringes and caps
- Precision toy parts
Product Advantages
- High-volume efficiency: Simultaneous production of multiple identical parts
- Cost-effective: Reduced per-unit production costs
- Consistent quality: Minimal dimensional variation between parts
- Durable construction: Long mold lifespan with easy maintenance
Frequently Asked Questions
Q1: Are multi-cavity molds suitable for complex small parts?
A1: Yes, with proper design optimization based on the product's precision requirements.
Q2: How important is the mold cooling system?
A2: Critical - efficient cooling significantly reduces production cycle times.
Q3: Does this support automated part removal?
A3: Yes, compatible with robotic systems and automated packaging lines.
Q4: Are more cavities always more cost-effective?
A4: Cavity count must balance with injection machine capacity and product structure to maintain quality.
Q5: Suitable for highly transparent products?
A5: Yes, using high-polish mold steel for optimal clarity.
Q6: Can production cycles be shortened?
A6: Yes, expedited customization services are available based on project requirements.
Customized Services
We offer comprehensive customization including cavity count optimization, specialized cooling systems, and automation interfaces to meet diverse industry requirements for food, medical, packaging, and consumer goods applications.
