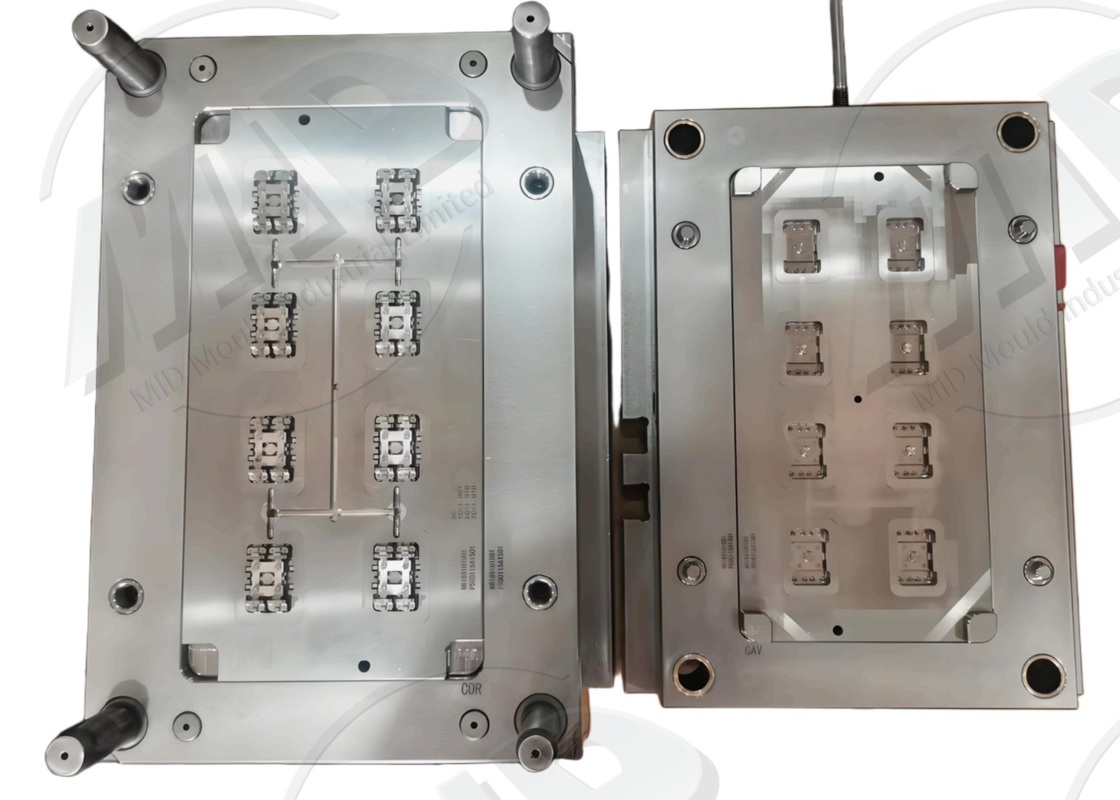

Durable Multi Cavity Molds 8 - 48 Cavities High Precision Mold 1 - 2M Cycles
-
Highlight
Durable Multi Cavity Molds
,8 Cavities High Precision Mold
,48 Cavities High Precision Mold
-
Product NameMulti Cavity Molds
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
ProductVehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
CavityMulti Cavity,as Per Client's Requirement
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
Durable Multi Cavity Molds 8 - 48 Cavities High Precision Mold 1 - 2M Cycles
Durable Multi Cavity Injection Mold 8-48 Cavities 1-2M Cycles
Product Technology
Our durable multi-cavity molds are constructed from high-hardness steel with optimized designs specifically engineered for high-volume production, consistently delivering over 1 million mold cycles.
Process Flow
- Mold Design: Prioritizes strength and wear resistance
- Material Selection: Uses imported steel to extend product life
- Heat Treatment: Enhances hardness and corrosion resistance
- Mold Assembly: Ensures precise alignment between cavity and guide system
- Mold Trial and Debugging: Guarantees long-term stable operation
Product Specifications
| Item | Description |
|---|---|
| Mold Type | Durable multi-cavity injection mold |
| Mold Steel | H13 8407 S136 |
| Number of Cavities | 8–48 |
| Mold Life | 1–2 million cycles |
| Heat Treatment | Vacuum Quenching, Nitriding |
| Applicable Materials | ABS, PC, POM |
| Precision Tolerance | ±0.02mm |
| Cooling Method | High-efficiency water cooling |
| Compatible Equipment | 250T–900T injection molding machines |
| Delivery Time | 55–75 days |
Product Applications
- Mass production of automotive parts
- Industrial plastic components
- High-demand consumer goods
Product Advantages
- Extended lifespan for continuous mass production
- Low maintenance costs with strong operational stability
- High production efficiency meets tight deadlines
- Superior material strength with wear and corrosion resistance
Frequently Asked Questions
Q: Is there a significant difference between durable molds and standard molds?
A: Durable molds use high-grade steel and have a significantly longer lifespan.
Q: Can they support high-temperature plastic injection molding?
A: Yes, by selecting the appropriate steel based on the raw material requirements.
Q: How is mold life guaranteed?
A: Through specialized heat treatment and optimized structural design.
Q: Does mold maintenance require downtime during mass production?
A: Regular inspection of cooling water lines and ejector mechanism maintains operation without significant downtime.
Q: Can the number of cavities and mold dimensions be customized?
A: Yes, we offer flexible customization based on production scale requirements.
Customized Services
We design long-life, multi-cavity molds tailored to meet mass production needs across automotive, industrial, and consumer goods industries.
Related Cases
Our services cover all industries and reach all parts of the world.
