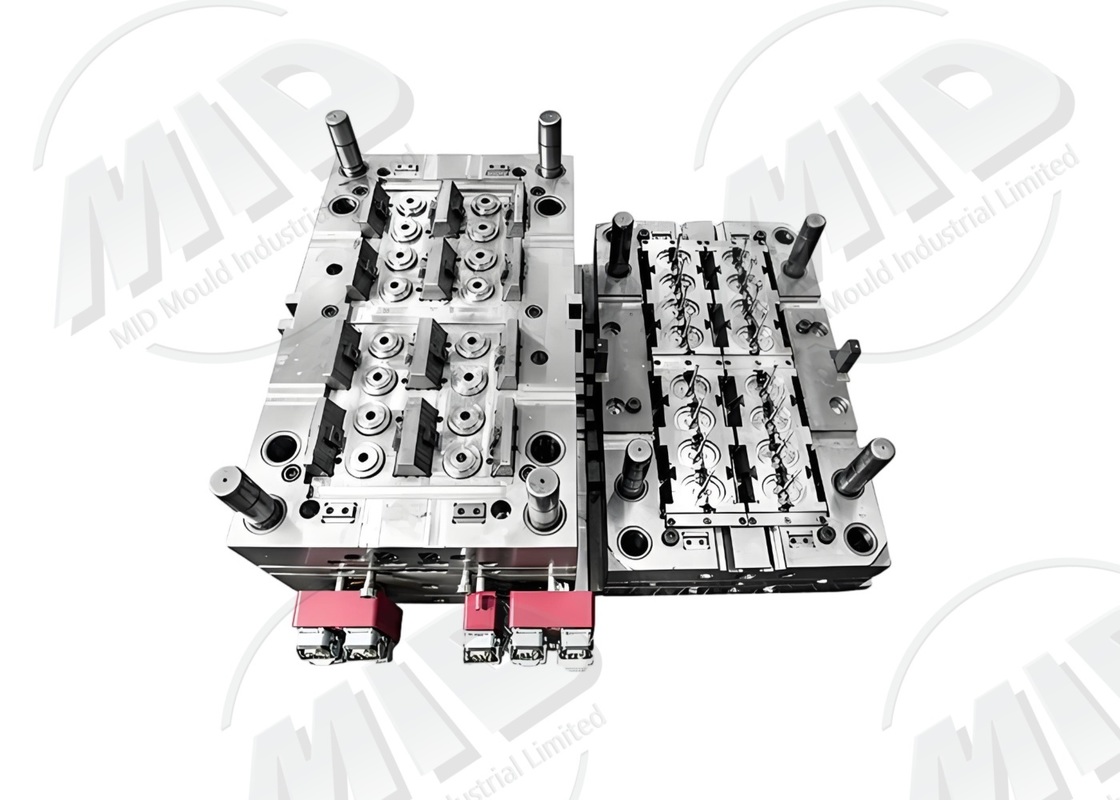

Mirror Polishing Multi Cavity Molds High Precision Metal Injection Molds Customized
-
Highlight
Mirror Polishing Multi Cavity Molds
,Multi Cavity Molds High Precision
,Metal Injection Molds Customized
-
Product NameMulti Cavity Molds
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
ProductVehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
CavityMulti Cavity,as Per Client's Requirement
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
Mirror Polishing Multi Cavity Molds High Precision Metal Injection Molds Customized
Advanced Multi Cavity Plastic Molds Faster Cycle Time And Reduced Unit Cost
Product Technology
Advanced multi-cavity molds utilize an optimized cooling system and high-speed injection molding technology, significantly shortening molding cycles and reducing unit costs.
Process Flow
- Runner Design: Utilizes a balanced gating system
- Cooling Optimization: Designs high-speed cooling water circuits
- Mold Processing: High-precision CNC and mirror polishing
- Assembly and Calibration: Ensure mold opening and closing accuracy
- Mold Trial Optimization: Tests cycle time and yield
Product Specifications
| Item | Parameter | Description |
|---|---|---|
| Mold Type | High-efficiency multi-cavity injection mold | |
| Mold Steel | S136 | H13 |
| Number of Cavities | 16–64 | |
| Mold Life | 800,000–1.5 million cycles | |
| Cooling Method | High-speed water cooling system | |
| Product Accuracy | ±0.015mm | |
| Applicable Materials | PP, PE, and PC | |
| Production Efficiency | Cycle Time Reduced by 20–30% | |
| Compatible Machines | 200T–800T Injection Molding Machines | |
| Product Cycle Time | 50–70 Days |
Product Applications
- Food Packaging
- Daily Chemical Containers
- Medical Accessories
Product Advantages
- Fast Molding Cycle Time, Increased Production Capacity
- Low Unit Cost, Reduced Overall Cost
- Excellent Cavity Balance Strong product consistency
- Supports automated production lines
FAQ
Q1: Is there a significant difference between high-efficiency molds and standard molds?
A1: Faster cycle time and lower unit cost.
Q2: Is it suitable for food packaging materials?
A2: Yes. Using food-grade steel fully meets standards.
Q3: Can it be combined with a hot runner system?
A3: Yes. A hot runner can further improve efficiency.
Q4: Does the number of cavities affect product quality?
A4: No. A balanced runner design can avoid variations.
Q5: Mold delivery time?
A5: Generally 50–70 days, depending on design complexity.
Customized Services
We provide advanced multi-cavity mold design to optimize cycle time and cost, creating higher production efficiency for our customers.
