Highlight
1M Cycles Medical Plastic Molds
,2 Cavities Steel Injection Mold
,48 Cavities Steel Injection Mold
-
Product NameMedical Plastic Molds
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
ProductVehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
CavityMulti Cavity,as Per Client's Requirement
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure

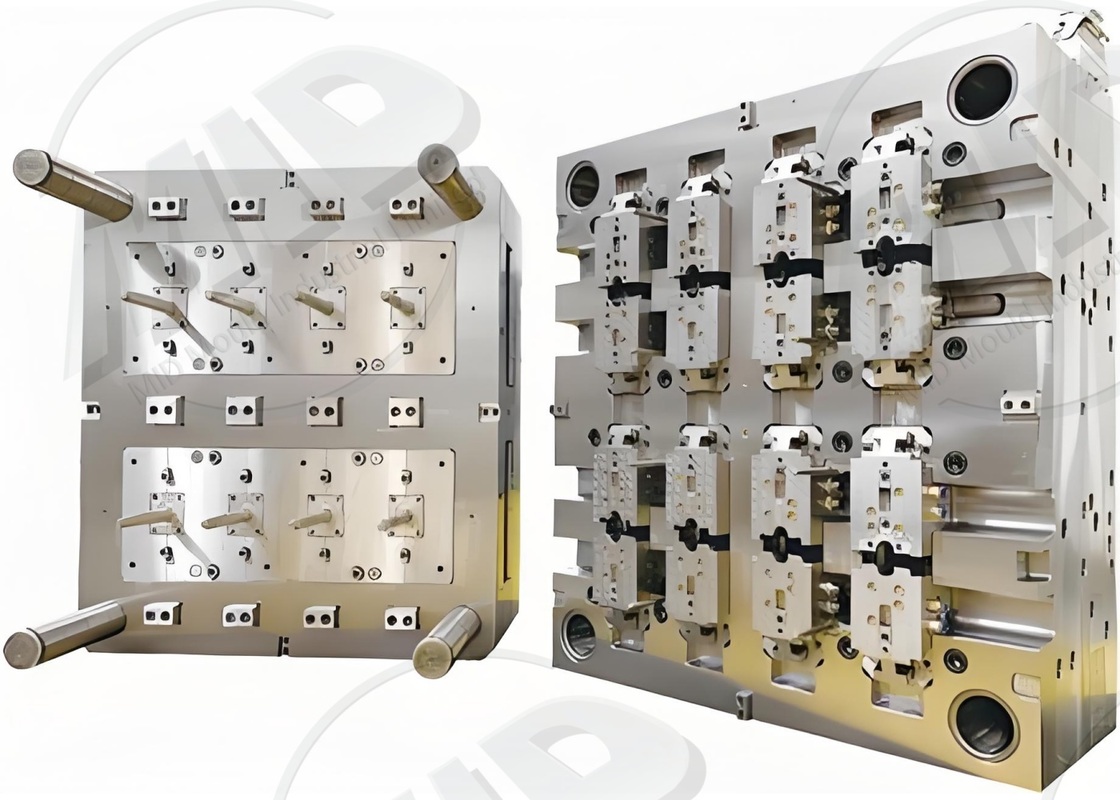

1M Cycles Medical Plastic Molds 2 - 48 Cavities Steel Injection Mold
Multi Cavity Plastic Injection Mold 2-48 Cavities 1M Cycles
Our multi-cavity injection molds enable simultaneous production of multiple identical plastic parts with exceptional consistency, ideal for cosmetics, electronics, and medical applications.
Product Process
The multi-cavity design enables high-volume production of identical plastic components with minimal variation between parts.
- Product Requirements Analysis and Cavity Layout
- CAD Design of Runner and Gate Systems
- CNC Precision Machining
- Mold Assembly and Cooling System Testing
- Trial Molds to Verify Product Consistency in Each Cavity
Product Specifications
| Item | Parameter Description |
|---|---|
| Mold Type | Multi-Cavity Injection Mold |
| Mold Material | H13 S136 |
| Cavities | 2–48 |
| Mold Life | 1 Million Cycles |
| Surface Treatment | Polishing, Nitriding |
| Applicable Materials | ABS, PC, PP, PS |
| Product Accuracy | ±0.015mm |
| Cooling System | Precision Water Cooling |
| Injection Molding Machine Compatibility | 150T–600T |
| Product Cycle | 45–65 Days |
Product Applications
- Medical Syringes
- Small Electronic Components
- Cosmetic Packaging Accessories
Product Advantages
- High Precision and Consistency
- Increased Production Efficiency
- Reduced Labor and Energy Consumption
- Long Service Life
Frequently Asked Questions
Q1: Are multi-cavity molds suitable for small parts?
A1: Yes. Small parts are particularly well-suited for multi-cavity solutions.
Q2: How to ensure balanced flow channels?
A2: Use CAE software for simulation and optimization.
Q3: Does it support quick mold changes?
A3: Yes, we can design quick-change features based on customer needs.
Q4: Can multi-cavity molds be used for transparent parts?
A4: Yes, but the cavities must be polished.
Q5: Can the mold life be extended?
A5: Regular maintenance and coating can extend the mold life.
Customized Services
We support custom multi-cavity molds for special structures, transparent products, and high-precision parts to meet diverse customer needs.
