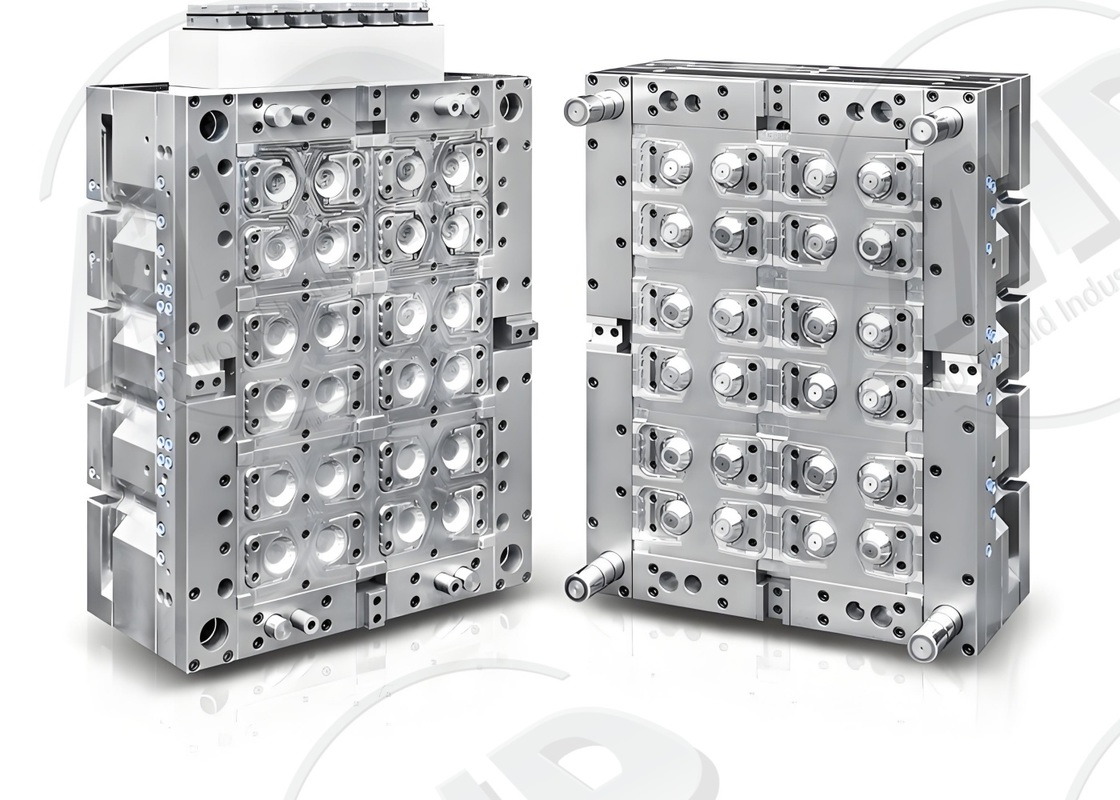

High Precision Multi Cavity Molds 4 - 64 Cavities Plastic Moulding Tool For Mass Production
-
Highlight
High Precision Multi Cavity Molds
,4 Cavities Plastic Moulding Tool
,64 Cavities Plastic Moulding Tool
-
Product NameMulti Cavity Molds
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
ProductVehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
CavityMulti Cavity,as Per Client's Requirement
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
High Precision Multi Cavity Molds 4 - 64 Cavities Plastic Moulding Tool For Mass Production
Multi Cavity Injection Molds 4-64 Cavities For Mass Production
Product Technology
Multi-cavity injection molds utilize multiple cavities within a mold, enabling the simultaneous production of multiple parts during each injection cycle. This significantly increases production capacity and reduces unit production costs.
Process Flow
- Product structure analysis and cavity design
- CAD/CAE optimized flow channel balance
- High-precision CNC and EDM machining
- Mold cooling system layout and assembly
- Mold trial to confirm product consistency
Product Specifications
| Item | Parameter | Description |
|---|---|---|
| Mold Type | Multi-cavity injection mold | |
| Mold Material | P20 H13 S136 | |
| Cavities | 4–64 | |
| Mold Life | 800,000–1.5 million cycles | |
| Surface Treatment | Polishing Chrome plating | |
| Applicable Materials | PP PE ABS PC | |
| Precision Tolerance | ±0.02mm | |
| Cooling System | Independent cooling water circuit | |
| Compatible Equipment | 200T–1000T injection molding machines | |
| Product Cycle Time | 50–70 days |
Product Applications
- Food packaging containers
- Disposable tableware
- Medical consumables
Product Advantages
- Double single-cycle output
- Reduced production and raw material costs
- Ensure product consistency
- Suitable for automated mass production
FAQ
Q1: What industries are multi-cavity molds suitable for?
A1: Widely used in the medical, packaging, and daily necessities industries.
Q2: Is a higher number of cavities always better?
A2: The design should be based on the product size and the injection molding machine capacity.
Q3: Does a multi-cavity mold affect product precision?
A3: Precision can be guaranteed with a properly designed gating system.
Q4: Is maintenance complex?
A4: Regular cleaning of the cooling water lines and guide system is sufficient.
Q5: Can special products be customized?
A5: We can flexibly design based on customer needs.
Personalized Customization Service
We offer full-process customization, from product design to cavity optimization, to meet diverse production capacity and industry requirements.
