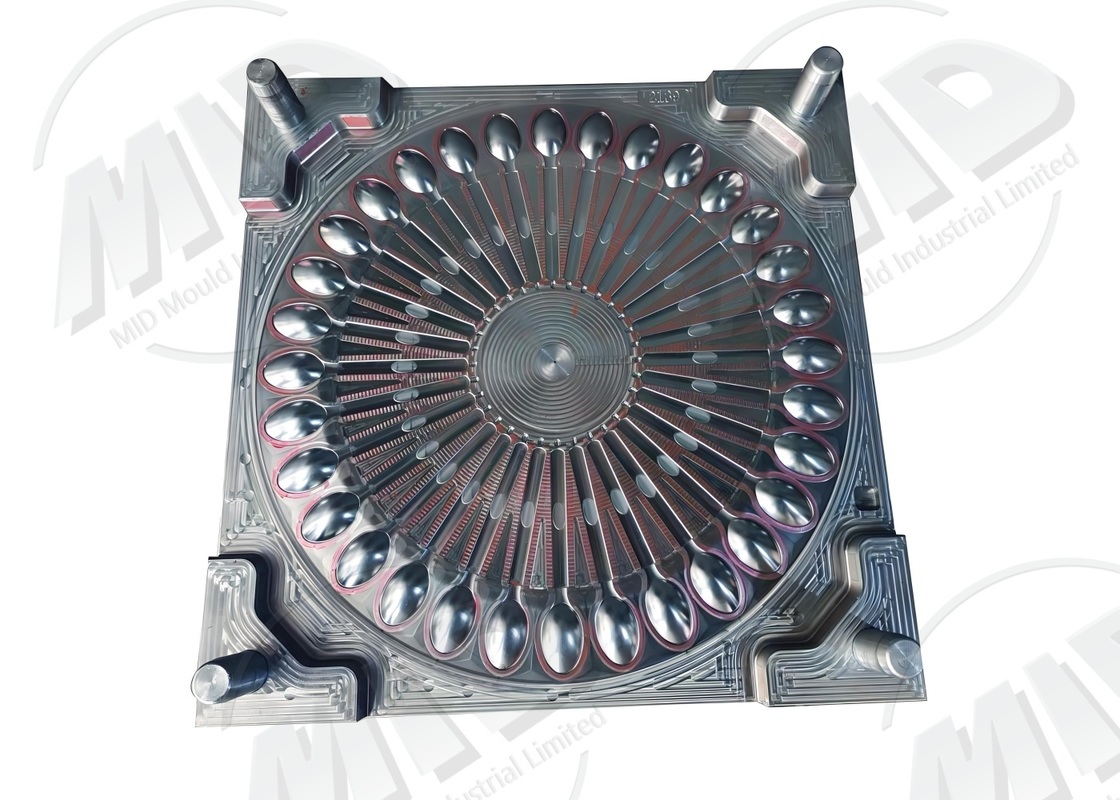

H13 S136 Steel Multi Cavity Molds 1M Cycles CNC Injection Mold For ABS PP PS
-
Highlight
H13 Steel Multi Cavity Molds
,S136 Steel Multi Cavity Molds
,1M Cycles CNC Injection Mold
-
Product NameMulti Cavity Molds
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
ProductVehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
CavityMulti Cavity,as Per Client's Requirement
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
H13 S136 Steel Multi Cavity Molds 1M Cycles CNC Injection Mold For ABS PP PS
Multi Cavity Injection Mold H13 S136 For ABS PP PS 1M Cycles
Designed for safe packaging and clean room plastic production, our multi-cavity molds enable simultaneous injection molding of multiple identical parts with the highest consistency.
Product Process
- Product Requirements Analysis and Cavity Layout
- CAD Design of Runner and Gate Systems
- CNC Precision Machining
- Mold Assembly and Cooling System Testing
- Trial Molds to Verify Product Consistency in Each Cavity
Product Specifications
| Item | Parameter Description |
|---|---|
| Mold Type | Multi-Cavity Injection Mold |
| Mold Material | H13 S136 |
| Cavities | 2–48 |
| Mold Life | 1 Million Cycles |
| Surface Treatment | Polishing, Nitriding |
| Applicable Materials | ABS, PC, PP, PS |
| Product Accuracy | ±0.015mm |
| Cooling System | Precision Water Cooling |
| Injection Molding Machine Compatibility | 150T–600T |
| Product Cycle | 45–65 Days |
Product Applications
- Medical Syringes
- Small Electronic Components
- Cosmetic Packaging Accessories
Product Advantages
- High Precision and Consistency
- Increased Production Efficiency
- Reduced Labor and Energy Consumption
- Long Service Life
Frequently Asked Questions
Q1: Are multi-cavity molds suitable for small parts?
A1: Yes. Small parts are particularly well-suited for multi-cavity solutions.
Q2: How to ensure flow channel balance?
A2: Use CAE software for simulation optimization.
Q3: Does it support quick mold changes?
A3: Yes, we can design quick-change features based on customer needs.
Q4: Can multi-cavity molds be used for transparent parts?
A4: Yes, but the cavities must be polished.
Q5: Can mold life be extended?
A5: Regular maintenance and coating can extend mold life.
Customized Services
We support custom multi-cavity molds for special structures, transparent parts, and high-precision parts to meet diverse customer needs.
