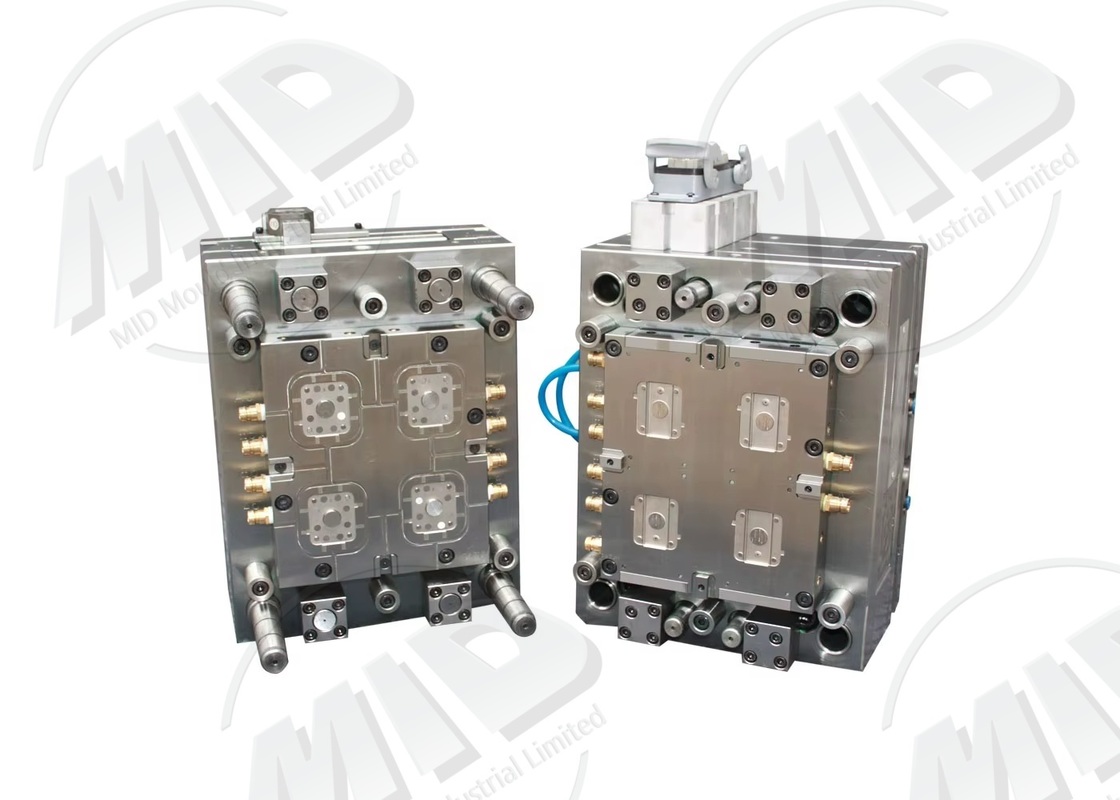

Customized Medical Device Injection Mold 8 - 64 Cavities Syringe Moulds

Customized Medical Device Injection Mold 8 - 64 Cavities Syringe Moulds

Products - Multi Cavity Molds
  • Highlight

    Customized Medical Device Injection Mold

    ,

    8 Cavities Syringe Moulds

    ,

    64 Cavities Syringe Moulds

  • Product Name
    Medical Device Injection Mold
  • Shaping Mode
    Plastic Injection Mould,Plastic Injection Molding,Compression Mould
  • Material
    STEEL,ps,PP,Steel And Metal,aluminum
  • Product
    Vehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
  • Mould Life
    250000-300000shots,200~1 M Available,300,000shots,000 Times
  • Runner
    Hot Runner\ Cold Runner,cold/hot
  • Cavity
    Multi Cavity,as Per Client's Requirement
  • Product Material
    Plastic,Steel,PP,ABS,PS
  • Mold Material
    NAK80,H13,50#,P20,45#
  • Design Software
    CAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
  • Mould Material
    P20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
  • Application
    Home Appliance,Industrial,Automotive,various Range,Machine
  • Certification
    ISO9001,FDA,ISO13485
  • Mould Base
    Non-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
  • Surface Treatment
    Sandblasted,Texture,anodizing Black,clear Painting,Polishing
  • Size
    As Samples/drawings,customized Accepted,Customized Size
  • Mold Runner
    Hot&Cold Runner You Can Choose,Hot Runner And Code Runner
  • Mold Life
    000 To 1,500000 Shots,000 Shots,100000-1000000,50
  • Plastic Material
    Peek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
  • Place of Origin
    Dongguan, China
  • Brand Name
    MID MOULD
  • Certification
    ISO9001:2015 Certificate, export standard compliant
  • Minimum Order Quantity
    1 set
  • Price
    USD $3,000–$50,000 per set (depending on complexity)
  • Packaging Details
    Wooden case + anti-rust oil + protective film + packing list
  • Delivery Time
    25–45 working days (longer for complex tools)
  • Payment Terms
    50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
  • Supply Ability
    20–35 sets per month, depending on structure

Customized Medical Device Injection Mold 8 - 64 Cavities Syringe Moulds

  • Customized Medical Device Injection Mold 8 - 64 Cavities Syringe Moulds
Get Price Contact Now
Medical Grade Multi Cavity Injection Molds Safe Packaging And Clean Room Plastic Production
Specialized multi-cavity injection molds designed for medical consumables and packaging industries, ensuring product safety, hygiene, and consistency.
Product Technology
Our precision-engineered molds meet the stringent requirements of medical device manufacturing with optimized flow channel balance and high-precision cavity machining.
Process Flow
  • Analysis of medical standards and product requirements
  • CAD/CAE optimized flow channel balance
  • High-precision CNC machining of the cavity
  • Assembly of cooling system and positioning mechanism
  • Trial mold verification for product cleanliness and precision
Product Specifications
Item Parameter Description
Mold Type Multi-cavity injection mold
Mold Material S136 H13
Number of cavities 8–64 cavities
Mold life 800,000–1.2 million cycles
Surface treatment Mirror polish
Applicable materials PP PS PC
Product accuracy ±0.015mm
Cooling system High-efficiency independent cooling
Injection molding machine compatible with 200T–600T
Production cycle 45–65 days
Product Applications
  • Medical syringes
  • Infusion pump housings
  • Food packaging cups
Product Advantages
  • Compliance with medical industry standards
  • High cleanliness and safety standards
  • Consistent batch-to-batch quality
  • High production efficiency and capacity
Frequently Asked Questions
Does it meet medical industry standards?
Yes. Food-grade steel is used in construction.
Can the mold be used for transparent products?
Yes, mirror polish surface treatment is achievable.
Can multi-cavity molds be delivered quickly?
Yes, expedited delivery is available depending on project requirements.
What is the lifespan?
High-precision steel construction can reach millions of cycles.
Is it suitable for automated production?
Very suitable, and can be integrated with robotic systems.
Customized Services
We offer customized multi-cavity molds that meet medical and food-grade standards to ensure product safety and consistency. Contact us to discuss your specific requirements.
