H13 Steel Overmolding Injection Molding 700K Cycles Custom Plastic Injection Mold High Precision
-
Highlight
H13 Steel Overmolding Injection Molding
,700K Cycles Custom Plastic Injection Mold
,Custom Plastic Injection Mold High Precision
-
Product NameOvermolding Injection Molding
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
ProductVehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
CavityMulti Cavity,as Per Client's Requirement
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
H13 Steel Overmolding Injection Molding 700K Cycles Custom Plastic Injection Mold High Precision

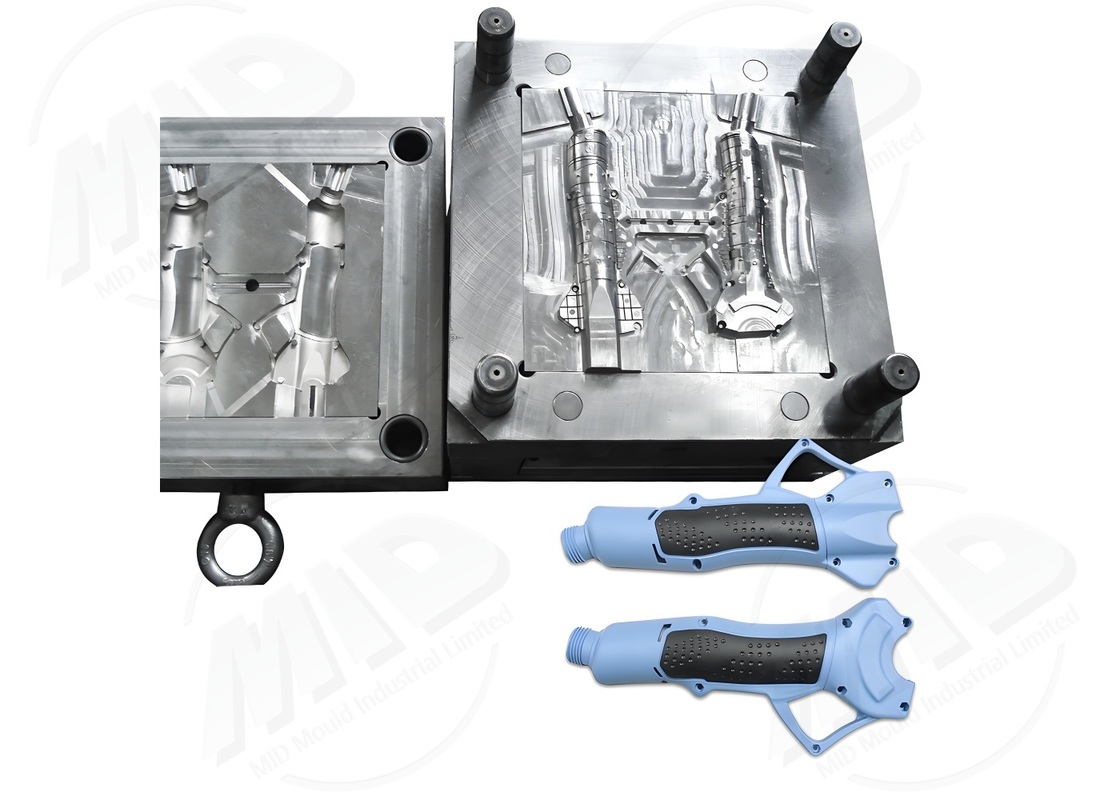

Overmolding Injection Mold H13 Steel 700K Cycles
Product Process

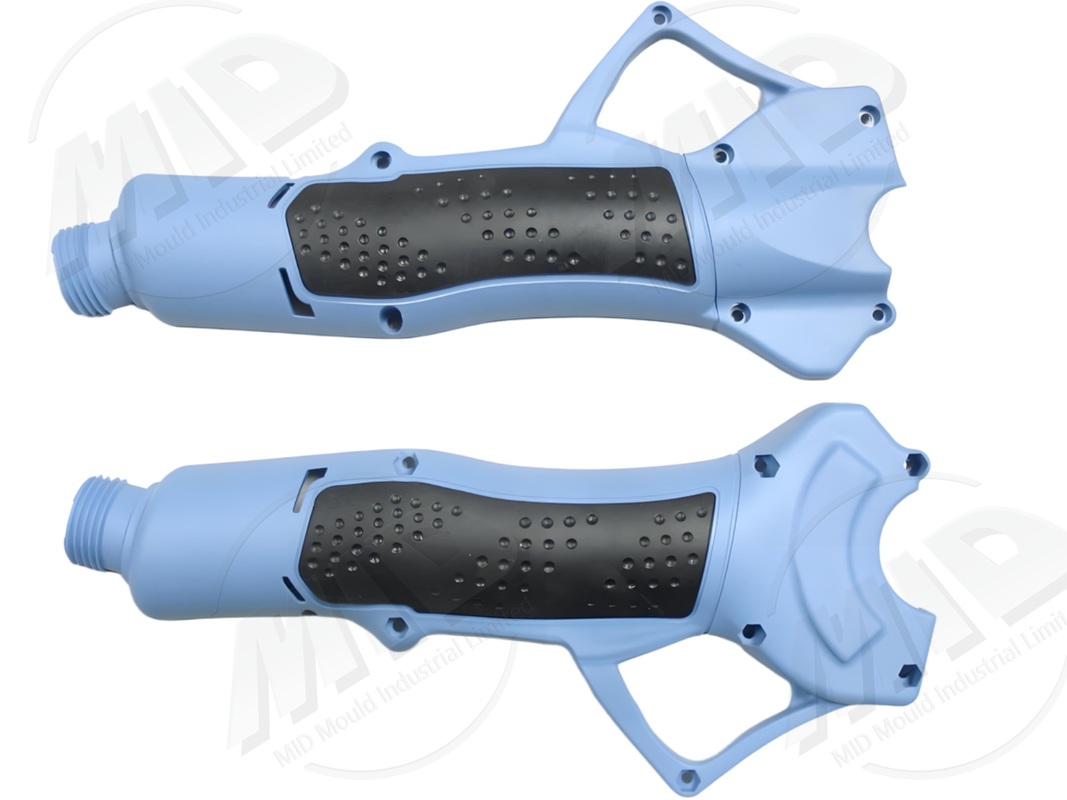

Overmolding allows a soft layer to be applied to a hard substrate, creating products that combine functionality with comfort. This process is ideal for manufacturing products requiring shock absorption, anti-slip properties, and aesthetically pleasing finishes.
Process Flow
- Mold design and parting surface determination
- Mold flow analysis to optimize runner layout
- CNC and grinder cavity machining
- Assembly of cooling and exhaust systems
- Test molds to verify overmolding performance
Product Specifications
| Property | Value |
|---|---|
| Mold Type | Overmolded mold |
| Mold Material | H13, NAK80, S136 |
| Number of cavities | 1–8 |
| Mold Life | 700,000–1.4 million cycles |
| Surface Treatment | Polishing, Sandblasting, Nitriding |
| Applicable Materials | PC, ABS, PA, TPR, TPE |
| Overmolding Method | Overmolding, Hot Melt Bonding |
| Product Accuracy | ±0.018mm |
| Cooling System | Multi-circuit parallel cooling |
| Product Cycle | 55–85 days |
Product Advantages
- Exquisite appearance with comfortable feel
- Strong bond that resists separation
- Extended mold life with cost-effective operation
- Supports multi-color and multi-material combinations
Frequently Asked Questions
Q1: Is overmolding suitable for small-batch production?
A1: Yes, but it is more suitable for mass production.
Q2: Does the overmolding layer peel easily?
A2: No, it is firmly bonded during molding.
Q3: What is the mold lifespan?
A3: 700,000–1.4 million mold cycles.
Q4: Can the overmolding thickness be controlled?
A4: Yes, the thickness range is 0.5–5mm.
Q5: What is the mold delivery lead time?
A5: Typically 55–85 days.
Customized Services
We offer customized mold structures, cooling methods, and multi-color overmolding solutions to meet diverse customer needs.
Related Cases
Our services cover all industries and reach all parts of the world.
