H13 Steel Injection Moulding Tool Multi Cavity Plastic Mould Die High Precision
-
Highlight
H13 Steel Injection Moulding Tool
,Multi Cavity Plastic Mould Die
,Plastic Mould Die High Precision
-
ProductInjection Moulding Tool
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
CavityMulti Cavity,as Per Client's Requirement
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
Product NamePlastic Injection Mould,injection Machine Mold,Shanghai Factory Cheap Plastic Component Injection Mold,High Quality Virgin Raw Material Custom Plastic Injection Mold Product,Gear Parts
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure

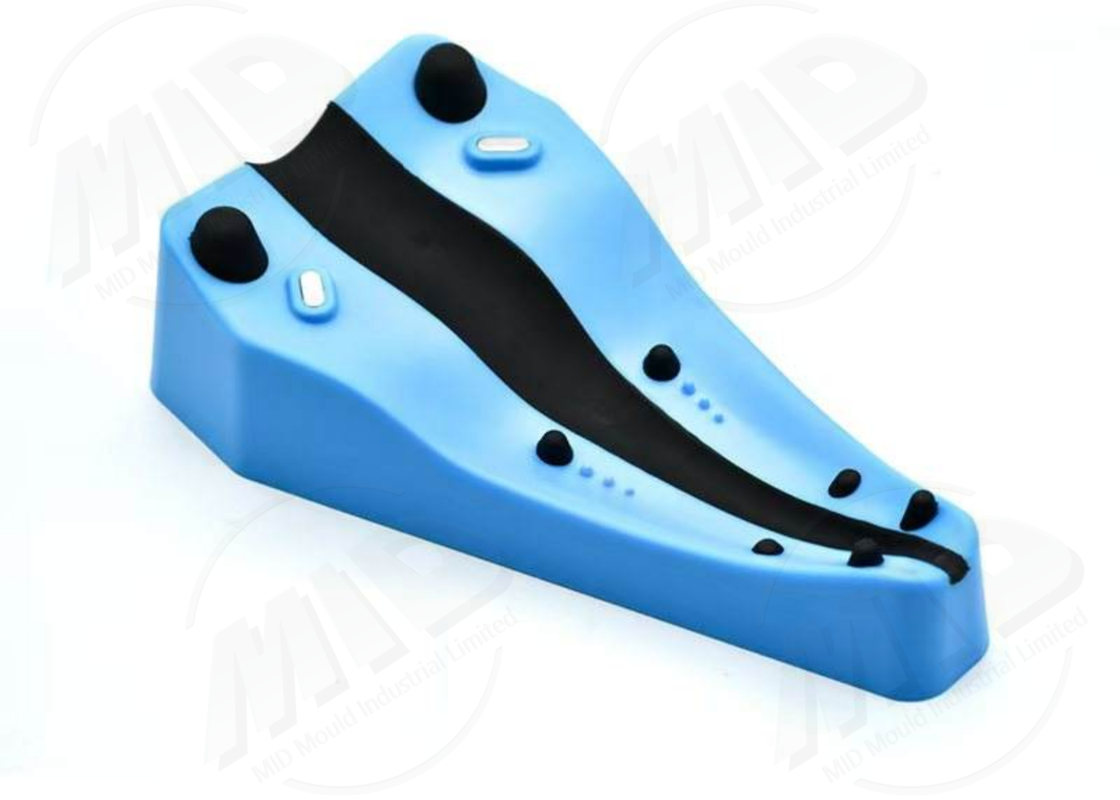

H13 Steel Injection Moulding Tool Multi Cavity Plastic Mould Die High Precision
Overmolding involves injection molding a soft plastic or rubber layer onto a substrate, creating products that combine functionality with enhanced aesthetics. This process is ideal for applications requiring anti-slip surfaces, shock absorption, and comfortable grip.
- 3D Mold Design and Structural Analysis
- CAE Simulation of Flow and Adhesion Effects
- CNC and Grinding Cavity Machining
- Assembly of Cooling Water Channels and Guide Structures
- Mold Trial Optimization and Dimensional Accuracy Verification
| Item/Parameter | Description |
|---|---|
| Mold Type | Overmolded Injection Mold |
| Mold Material | H13, S136, NAK80 |
| Number of Cavities | 1–10 |
| Mold Life | 700,000–1.2 Million Cycles |
| Surface Treatment | Polishing, Chrome Plating, Sandblasting |
| Applicable Materials | PC, ABS, PA, TPE, TPR |
| Overmolding Method | Overmolding, Hot Melt Bonding |
| Product Accuracy | ±0.018mm |
| Cooling System | Multi-Point Water Cooling Circuit |
| Product Cycle | 55–85 Days |
- Exquisite and comfortable surface finish
- Strong bonding for durable and reliable products
- Extended mold life suitable for medium to large-scale production
- Customizable overmolding in various colors and textures
A1: We use environmentally friendly materials that meet all relevant environmental standards.
A2: Common materials including PC, ABS, and PA are all compatible with our overmolding process.
A3: No, our process creates a strong, permanent bond between materials during molding.
A4: Yes, we offer comprehensive maintenance services to ensure long-term mold performance.
A5: The typical production cycle ranges from 55 to 85 days.
We provide tailored solutions including mold structure design, overmolding process optimization, and automation interface development to ensure efficient and stable production for your specific requirements.
Our services cover all industries and reach all parts of the world.
